MDIP08L30N Three-in-one Gimbal Camera 8X Optical Zoom+3000m Laser Rangefinder+ supplementary lights
China Moneypro
The MDIP08L30N is a professional three-in-one gimbal camera system combining 72x hybrid zoom capability with 8x optical zoom, a 3000-meter laser rangefinder, and supplementary lighting. Featuring a high-precision three-axis stabilized gimbal, this compact and lightweight system delivers exceptional stability with minimal power consumption. The 48-megapixel HD night vision sensor captures stunning detail, while the 20-meter effective supplementary lights enhance low-light performance. The laser rangefinder provides accurate distance measurement up to 3000 meters with sub-meter precision. Supporting RTSP streaming, multiple picture-in-picture modes, and pseudo-color displays, the system offers flexible control via serial port, UDP, and S.BUS protocols. Capable of recording both visible light and thermal imaging video to Micro-SD cards with network remote access, it includes intelligent human and vehicle detection tracking up to 100 simultaneous targets. Operating on DC12V-26.2V with minimal static power draw, this professional-grade system is ideal for surveillance, reconnaissance, and monitoring applications requiring precision optics and reliable performance.
The DIP08L30N is a three-in-one gimbal camera system that integrates a 72x hybrid zoom (8x Optical Zoom + 9x Digital Zoom), a 3000 meters laser rangefinder, supplementary lights with a high-precision professional three-axis stabilized gimbal. It supports Ethernet (RTSP) output. The gimbal has the characteristics of high stability, compact size, light weight, and low power consumption. Other than the supplementary lights with an effective distance of 20 meters, its visible light camera uses HD night vision sensor with 48 million effective pixels, while the laser rangefinder can detect up to 3000m range. The camera system supports RTSP stream real-time video output, multiple picture-in-picture modes and multiple pseudo-color displays, and it also supports distance measurement data reading. You can control the camera and the gimbal via serial port (UART), UDP and S.BUS. The camera outputs both visible light video and thermal imaging video, supporting video recording and photography on Micro-SD card and network remote accessing to stored videos and pictures on micro-SD card.
| Voltage | DC12V-26.2V | Power | Static6W |
| Roll angle | -45 +45 | Pitch Angle | -45 +120 |
| Yaw Angle | -280 +280 | Angle jitter in pitch and roll direction | 0.02 |
| Horizontal Angle jitter | 0.03 | One-click return to the center function | Quick return to initial position with one click |

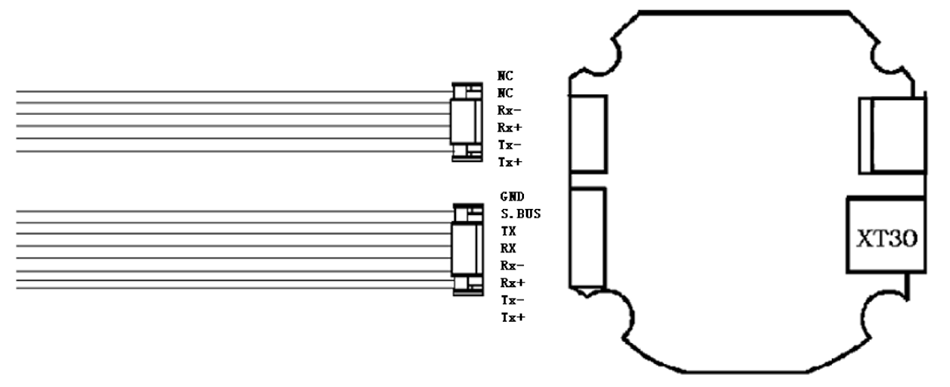

| When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification. | When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification. | Control Mode | UDP/UART/SBUS (OPTIONAL PWM) |
| CMOS Size | 1/2.0″ 48MP wide dynamic range CMOS SENSOR |
| Optical zoom | 8x optical zoom+9x digital zoom; f=6.9mm 5%~55.2mm 5%mm |
| Focusing time | Real-time fast focusing function, focusing time <1S |
| Video output | Ethernet (RTSP) @1080P/30FPS;@480P/30FPS |
| Field Angle FOV | D : WIDE 62.6o 5% TELE 9.95o 5% H : WIDE 55.0o 5% TELE 8.70o 5% V : WIDE 31.2o 5% TELE 4.94o 5% |
| Wavelength | 1535 5nm |
| Detect range | 20 3000 meters |
| Accuracy | Better than 1m(RMS) |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

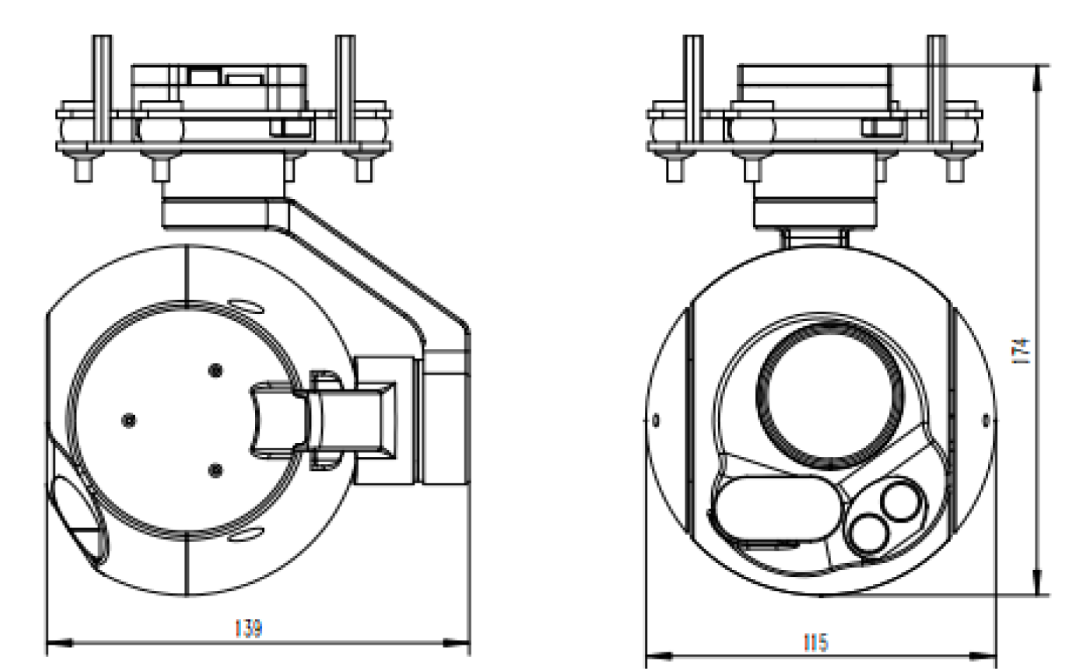

| Dimensions | 115 X 174 X 139mm | Working Condition | -10 to +50 / 20% to 80% RH |
| Storage Environment | -20 to +60 / 20% to 95% RH | Weight | 840 20g |
