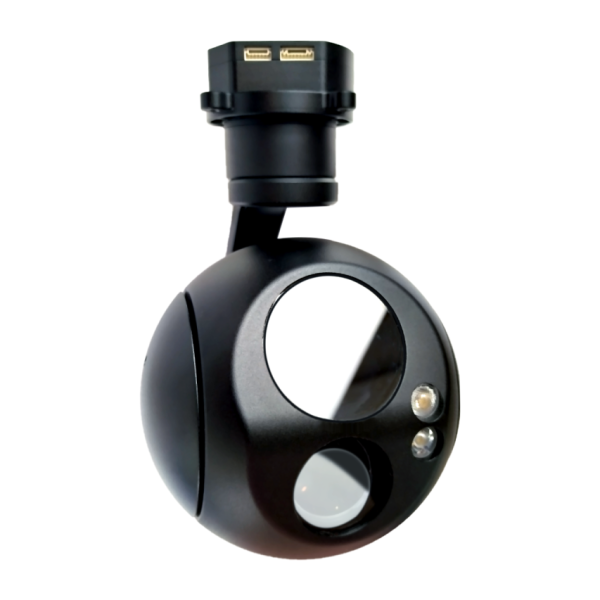

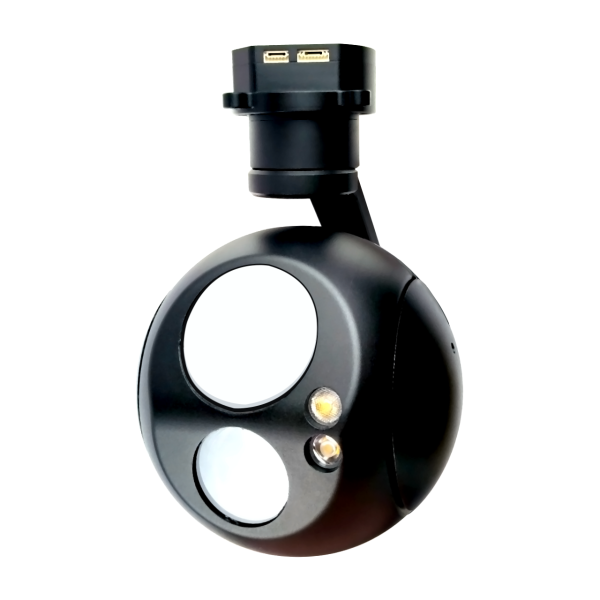

MDIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights
China Moneypro
The MDIP04G12N is a professional three-axis stabilized gimbal camera combining 28x hybrid zoom, 1280×1024 thermal imaging, and integrated LED supplementary lights. Featuring an 8-megapixel HD night vision sensor with 4x optical zoom and a 25mm thermal lens, this compact system delivers exceptional stability and low power consumption. The gimbal offers precise pitch and yaw control with minimal jitter, supporting multiple operational modes including quick return and lock/following capabilities. Advanced features include dual-channel synchronous recording, picture-in-picture display, network and serial port control, and optional temperature measurement functions. The thermal camera provides 50mK sensitivity with human and vehicle detection tracking up to 100 simultaneous targets. Software ground station enables TF storage, network file operations, and pseudo-color switching. Operating on DC 12V-26.2V with static power consumption of just 6W, this versatile system is ideal for surveillance, inspection, and monitoring applications requiring both visible and thermal imaging capabilities.
DIP04G12N is a professional-grade, high-precision three-axis gimbal system featuring an integrated 28x hybrid zoom visible camera, a 1280×1024 thermal imager with a 25mm lens, and built-in LED fill lights. Designed with a compact form factor, it delivers outstanding stability, high system integration, and low power consumption. The visible light module carries an 8MP high-definition sensor optimized for night vision. The thermal imaging unit uses a vanadium oxide detector with 1280×1024 resolution, a built-in shutter mechanism, and a 25mm lens. It supports software-based ground control, dual-stream video output with picture-in-picture (PiP) display, and full gimbal and camera control via both network and serial interfaces. The system provides telemetry data reading, distance measurement output, local storage via TF card, and network-based file read/write. Additional features include two-channel synchronous recording, multiple PiP display modes, and switchable pseudo-color palettes for thermal imaging.
| Voltage | DC 12V-26.2V | Power | Static 6w |
| Pitch Angle | -30 +120 jitter 0.02 | Yaw Angle | 600 rotation jitter 0.03 |

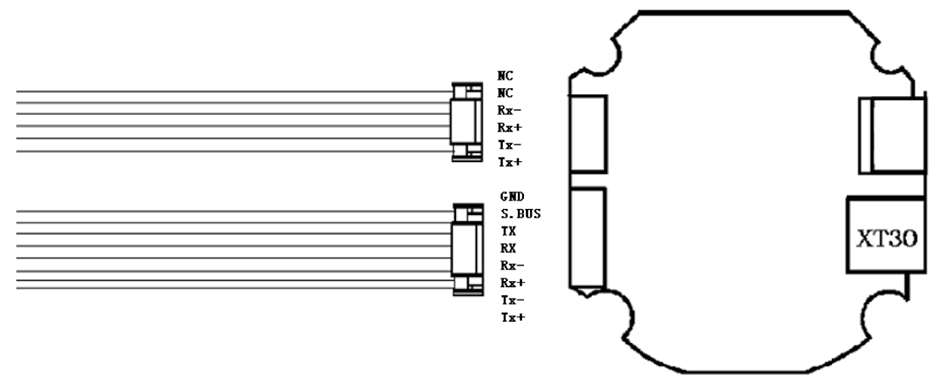

| Gimbal mode | Quick return to initial position with one click lock head/following mode | Control method | Speed adaptive controllable, external control by network or serial port |
| CMOS Size | 1/1.2 inch 8 million pixel wide dynamic CMOS sensor |
| Optical zoom | 4x HD optical zoom lens, f=15.16 5%~48.65 5%mm |
| Focus time | Real-time fast focus function, focusing time <1s |
| Video output | Network output RTSP 1080P stream and 480P stream, local TF 1080P storage |
| Field Angle FOV | D : WIDE 48.4o 5% TELE 14.8o 5% H : WIDE 42.2o 5% TELE 12.9o 5% V : WIDE 23.7o 5% TELE 7.3o 5% |
| Function | supplementary lights, effective distance 20 meters |
| Resolution | 1280*1024 pixel |
| Pixel spacing | 12 m |
| Type | Uncooled Focal Plane Microbolometer |
| Wavelength range | 8 12 m |
| Thermal sensitivity (NETD) | 50mk@F1.0 |
| Field of view | 25mm lens, angle: 34.2 27.6 |
| Measurement function (optional) | Center point, highest and lowest temperature display temperature function; global temperature measurement |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

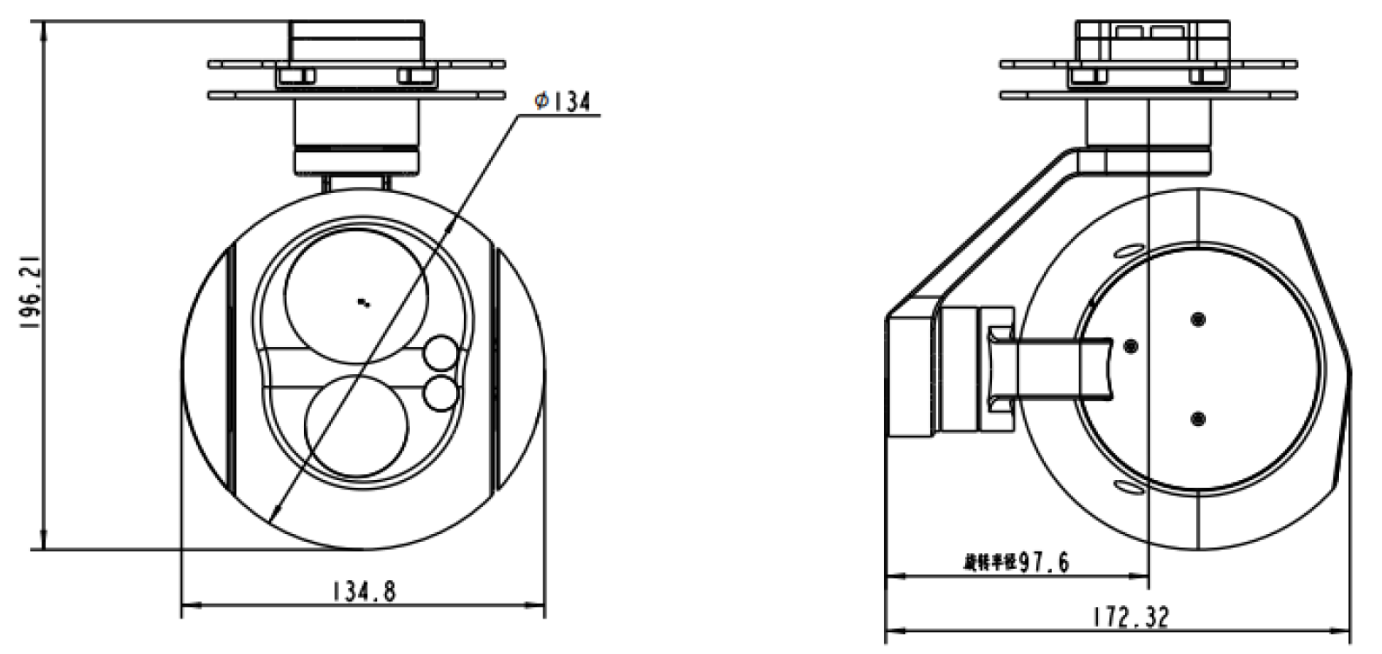

| Dimensions | 135mm 171mm 192mm | Working Condition | -10 to +50 / 20% to 80% RH |
| Storage Environment | -20 to +60 / 20% to 95% RH | Weight | 1230 20g |
