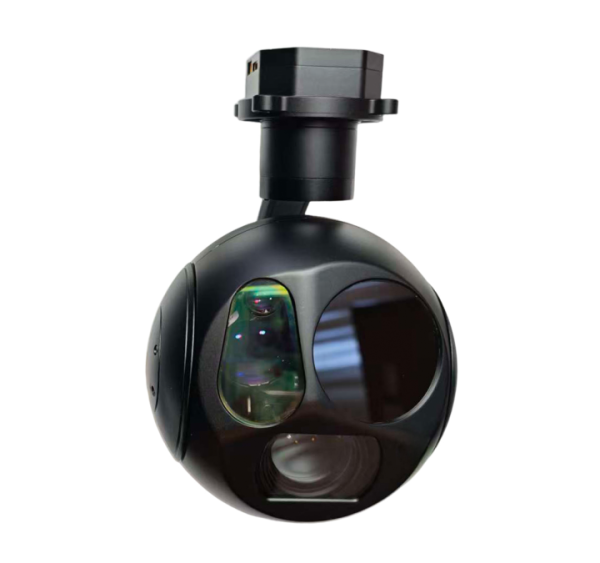

MDIF30G645L80-E 30X OPTICAL ZOOM + 45mm 640*512 IR +8KM RANGEFINDER +3-AXIS CAMERA

China Moneypro

The MDIF30G645L80-E is a professional 3-axis stabilized gimbal camera system featuring 30x optical zoom with 2MP visible light imaging, 45mm 640×512 thermal imaging, and 8km laser rangefinder. Equipped with Electronic Image Stabilization, this compact system delivers high stability and low power consumption. The thermal camera uses an uncooled microbolometer with 50mK sensitivity, while the laser rangefinder provides 1m accuracy up to 8km. Advanced features include intelligent human and vehicle detection tracking up to 100 simultaneous targets, global temperature measurement, multiple video output modes, and network or serial port control via ground station software. Perfect for surveillance, reconnaissance, and professional monitoring applications.

DIF30G645L80-E is a professional 3-axis stabilized gimbal integrating 270x Hybrid zoom camera, 45MM 640*512 thermal imaging and 8km laser rangefinder, with Electronic Image Stabilization (EIS). This gimbal is compact in design and has the characteristics of high stability, high integration and low power consumption; The visible light camera uses a high-definition effective 2 mega pixels COMS SENSOR; The thermal imaging adopts 45mm lens, a vanadium oxide 640*512 resolution detector, with an internal baffle. The Laser ranging has 8KM high-precision distance measurement function. Using our ground station software, you can synchronously control the PTZ and camera via network and serial port, read ranging data, local TF card storage and network file reading and writing, support two-way synchronous video recording, multiple PIP modes and pseudo color switching.

DIF30G645L80-E 30X OPTICAL ZOOM + 45mm 640*512 IR +8KM RANGEFINDER +3-AXIS CAMERA

Voltage	DC12 26.2V	Power	Dynamic 10W
Roll angle	45 45	Pitch Angle	-30 +110
Yaw Angle	-285 +285	Angle jitter in pitch and roll directions	0.02
Horizontal angle jitter	0.03	One-click return to the center function	Quick return to initial position with one click
Adjustable Gimbal Speed	When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification	Control Mode	Support network IP control, serial port control, S.BUS control

CMOS Size	1/2.8inch 2MP wide dynamic range CMOS SENSOR
Optical Zoom	30x Optical Zoom, f=4.6 136 mm 5%
Focus time	Real-time fast focus function, focusing time <1S
Field Angle FOV	D : WIDE 73.7o 5% TELE 2.6o 5% H : WIDE 65.4o 5% TELE 2.2o 5% V : WIDE 38.3o 5% TELE 1.3o 5%
Video output	Network output RTSP 1080P stream, local TF 1080P storage
Support Mode	1080P 30fps

Resolution	640×512 pixel
Pixel spacing	12 m
Type	Uncooled focal plane microbolometer
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@F1.0@25
Field of view	45mm Lens Angle 9.8 x 7.8
Global temperature measurement	Support global temperature measurement, optional full pixel temperature saving function

Infrared wavelength	1535 5nm safety for eyes
Measuring range	50–8000m
Accuracy/resolution	Accuracy 1m; Ranging resolution 30m

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization

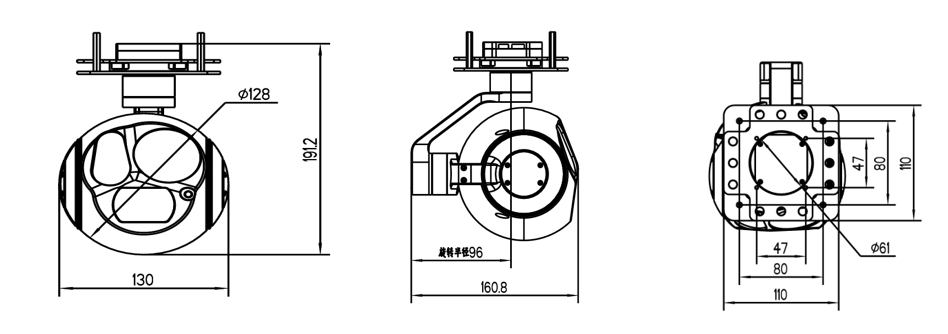

Dimensions	W191.2mmD130.0mm H128.0mm	Working Condition	-10 to +55 / 20% to 80% RH
Storage Environment	-20 to +60 / 20% to 95% RH	Weight	1058 20g
