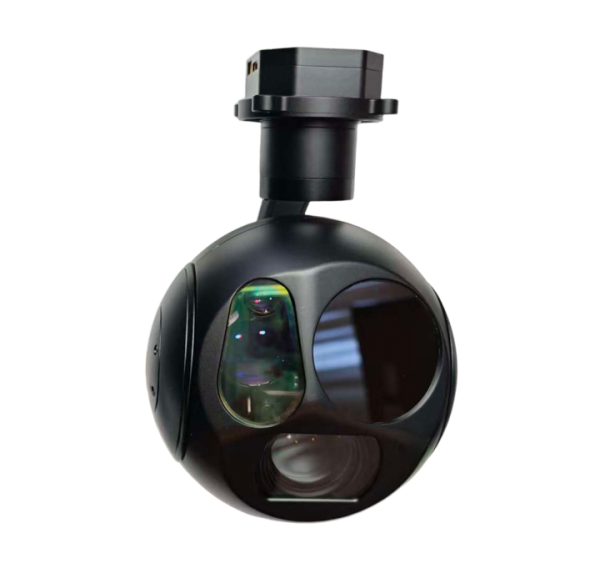

MDIF30G1235L80-E 30X Optical Zoom + 35mm 1280*1024 IR +8KM RANGEFINDER +3-AX Camera
China Moneypro
The MDIF30G1235L80-E is a professional 3-axis stabilized gimbal camera system combining 30x optical zoom visible light imaging, 35mm thermal imaging with 1280×1024 resolution, and an 8km laser rangefinder. Featuring a 2MP CMOS sensor with electronic image stabilization, this compact system delivers high stability and low power consumption. The thermal camera uses an uncooled vanadium oxide detector with 50mK sensitivity for precise temperature measurement. The laser rangefinder provides 1-meter accuracy up to 8km. Advanced AI capabilities include human and vehicle detection and tracking of up to 100 simultaneous targets. Control via network IP, serial port, or S.Bus with synchronized video recording, multiple PIP modes, and pseudo-color switching through ground station software. Ideal for surveillance, reconnaissance, and monitoring applications.
DIF30G1235L80-E is a compact, professional 3-axis stabilized gimbal system that combines a 270x hybrid zoom visible camera, a 1280×1024 thermal imager with a 35mm lens, and an 8km laser rangefinder. It features Electronic Image Stabilization (EIS) for smoother footage. Designed for high stability, high integration, and low power consumption, the visible light module is built around a 2MP high-definition CMOS sensor. The thermal imaging unit uses a vanadium oxide detector with a resolution of 1280×1024 and includes an internal shutter. The laser rangefinder delivers precise distance measurement up to 8 kilometers. When operated with our ground station software, you can remotely control the gimbal and cameras via network or serial port, retrieve distance data, store footage locally on a TF card, and access files over the network. The system supports simultaneous dual-channel video recording, multiple picture-in-picture (PIP) layouts, and switchable pseudo-color palettes.
| Voltage | DC12 26.2V | Power | Dynamic 10W |
| Roll angle | 45 45 | Pitch Angle | -30 +110 |
| Yaw Angle | -285 +285 | Angle jitter in pitch and roll directions | 0.02 |
| Horizontal angle jitter | 0.03 | One-click return to the center function | Quick return to initial position with one click |

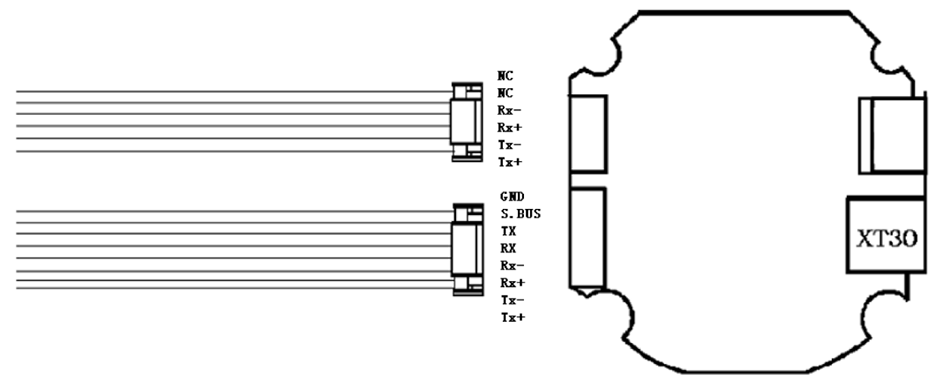

| Adjustable Gimbal Speed | When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification | Control Mode | Support network IP control, serial port control, S.BUS control |
| CMOS Size | 1/2.8inch 2MP wide dynamic range CMOS SENSOR |
| Optical Zoom | 30x Optical Zoom, f=4.6 136 mm 5% |
| Focus time | Real-time fast focus function, focusing time <1S |
| Field Angle FOV | D : WIDE 73.7o 5% TELE 2.6o 5% H : WIDE 65.4o 5% TELE 2.2o 5% V : WIDE 38.3o 5% TELE 1.3o 5% |
| Video output | Network output RTSP 1080P stream, local TF 1080P storage |
| Support Mode | 1080P 30fps |
| Resolution | 1280×1024 pixel |
| Pixel spacing | 12 m |
| Type | Uncooled Vanadium Oxide Detector |
| Wavelength range | 8 14 m |
| Thermal sensitivity (NETD) | 50mk@F1.0@25 |
| Field of view | 35mm Lens Angle 24.4 x 19.8 |
| Global temperature measurement | Support global temperature measurement, optional full pixel temperature saving function |
| Infrared wavelength | 1535 5nm safety for eyes |
| Measuring range | 50–8000m |
| Accuracy/resolution | Accuracy 1m; Ranging resolution 30m |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

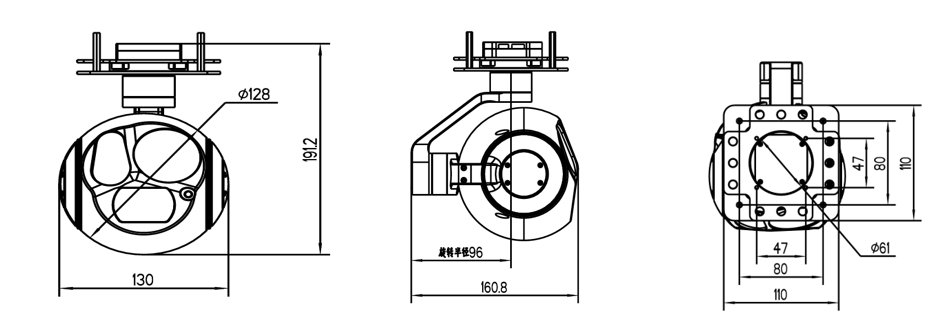

| Dimensions | W191.2mm*D130.0mm *H128.0mm | Working Condition | -10 to +55 / 20% to 80% RH |
| Storage Environment | -20 to +60 / 20% to 95% RH | Weight | 1170 20g |
