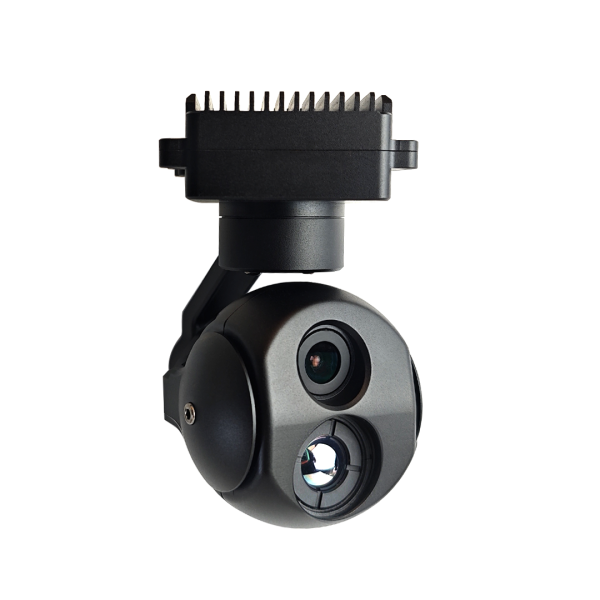

MDHU662M609 1080P Fixed Focus + 640 512 Thermal Imaging IP HDMI Dual Output Small Gimbal Camera

China Moneypro

The MDHU662M609 is a compact dual-sensor gimbal camera combining 1080P fixed-focus visible light imaging with 640×512 thermal imaging in a lightweight, stabilized platform. Featuring a high-precision three-axis gimbal with FOC control technology, it delivers exceptional stability with minimal jitter. The system offers dual output via network IP and HDMI, supporting multiple control methods including serial port, S.BUS, and network protocols. With 2-megapixel CMOS sensor, 9x digital zoom, and advanced thermal capabilities including 50mK sensitivity, it enables comprehensive surveillance and monitoring. The integrated AI detection system recognizes humans and vehicles simultaneously, tracking up to 100 targets. Operating on 12-26.2V with low power consumption, this professional-grade camera supports local dual-channel TF recording and includes global temperature measurement functionality, making it ideal for security, reconnaissance, and thermal analysis applications.

DHU662M609 is a fixed-focus dual-sensor integrated system that integrates 1080P fixed focus, 9.1mm 640 512 thermal imaging, and a high-precision professional three-axis stabilization gimbal camera. It uses network IP HDMI dual output, and the gimbal uses a high-precision encoder FOC control solution. It has the characteristics of high stability, small size, light weight, and low power consumption; the visible light camera uses a SENSOR with an effective 2 mega pixel. The gimbal and camera can be controlled by the serial port, S.BUS, and network, and supports local TF dual-channel video recording and photography.

DHU662M609 1080P Fixed Focus + 640 512 Thermal Imaging IP HDMI Dual Output Small Gimbal Camera

Voltage	DC 12V-26.2V	Power	Dynamic 5.5w
Pitch Angle action range	-40 ~ +100	Yaw Angle action range	-140 ~ +140
Roll Angle action range	-45 ~ +45	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position
Gimbal control speed adiustable	The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera	Control mode	Support network IP control ,serial port and S.BUS control

CMOS Size	1/2.8 inch 2.4 million pixels Wide dynamic range CMOS SENSOR
Digital zoom	Support 9x digital zoom
Video Output	Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)	6mm lens FOV 49.8 29.3

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field angle	9.1mm lens, FOV: 48.7 38.6
Measurement function	Support global temperature measurement and optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
