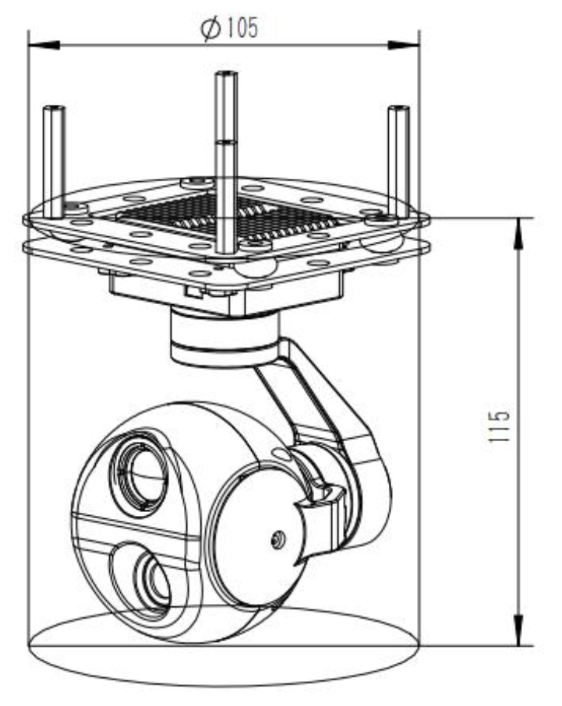

MDHU662G613P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output
China Moneypro
The MDHU662G613P-E is a professional dual-sensor gimbal system combining 1080P visible light imaging with 640×512 thermal imaging capabilities. Featuring a high-precision 3-axis stabilized gimbal with FOC control, it delivers exceptional stability in a compact, lightweight design with minimal power consumption. The system supports both IP network and HDMI dual output for flexible connectivity. The 2-megapixel visible light camera utilizes wide dynamic range technology, while the thermal sensor offers 50mK sensitivity for precise temperature detection. Control options include serial port, S.BUS, and network protocols. Advanced features include automatic human and vehicle detection tracking up to 100 simultaneous targets, 9x digital zoom, and dual-channel TF card recording. With operating temperatures from -10 to +60 degrees Celsius and weighing just 245 grams, this gimbal excels in surveillance, inspection, and monitoring applications requiring both visible and thermal data simultaneously.
The DHU662G613P-E is a dual-sensor camera system featuring a 1080P fixed-focus visible light lens and a 13mm thermal imager with 640×512 resolution. It is equipped with a high-precision professional 3-axis stabilized gimbal utilizing an encoder-based FOC control scheme, offering excellent stability, compact size, lightweight construction, and low power consumption. The system supports simultaneous IP network and HDMI outputs. Its visible light camera incorporates a wide dynamic range sensor with an effective 2-megapixel resolution. Control can be achieved via serial port, S.BUS, or network interface. Additionally, the unit allows dual-channel recording and photography to a local TF card.
Voltage
DC 12V-26.2V/td>
Power
Static 4.6W
Pitch Angle action range
-45 +100
Yaw Angle action range
-145 +145
Roll Angle action range
-45 +45
Angle jitter in pitch and roll directions
0.02
Horizontal angle jitter
0.03
One-click return function
One-click automatic quick return to the initial position
Gimbal control speed adjustable
The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera
Control mode
Support network IP control ,serial port and S.BUS control
CMOS Size
1/2.8 inch 2.4 million pixels Wide dynamic range CMOS SENSOR
Digital zoom
Support 9x digital zoom
Video Output
Network HD RTSP output 1080P, video stream local TF storage
Field Angle(FOV)
6mm lens FOV 49.8 29.3
Network support mode
1080P 30 fps
HDMI support mode
Micro-D HDMI 1080P 60fps
Resolution ratio
640 512 pixel
Space between pixels
12 m
Type
Uncooled focal plane microbolometer
Wavelength Range
8 14 m
Thermal sensitivity(NETD)
50mk@F1.0
Field Angle
9.1mm Lens; FOV 32.9 26.6
Measurement (Optional)
Support global temperature measurement, optional full pixel temperature saving function
