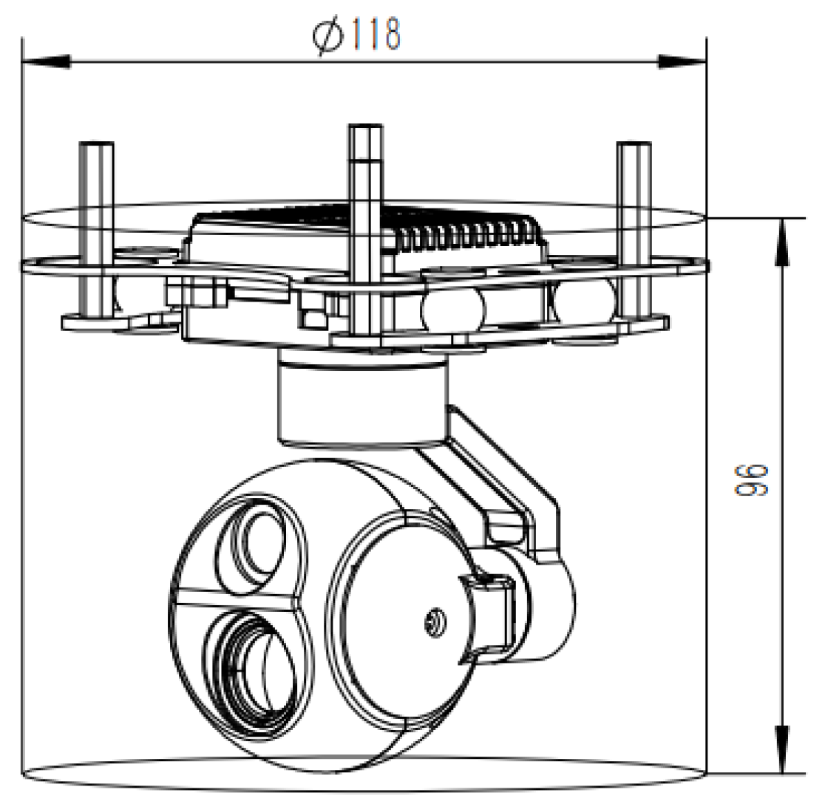

MDHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

China Moneypro

The MDHU662G609P-E is a professional dual-sensor gimbal camera system combining 1080P visible light imaging with 640×512 thermal imaging capabilities. Featuring a high-precision 3-axis stabilization gimbal with FOC control, this compact system delivers exceptional stability while maintaining minimal weight and power consumption. The 2-megapixel visible light camera offers 9x digital zoom and 49.8-degree field of view, while the thermal sensor provides 50mK sensitivity for precise temperature measurement. Dual output via HDMI and IP network enables flexible deployment options. The gimbal supports multiple control methods including network IP, serial port, and S.BUS, with adjustable speed control and one-key return functionality. Advanced features include human and vehicle detection tracking up to 100 simultaneous targets, gyroscope stabilization, and local dual-channel TF card recording. Operating on DC 12V-26.2V with just 5.5W dynamic power consumption, this rugged system functions reliably in temperatures from -10 to +40 degrees Celsius, weighing only 187 grams.

The DHU290M609 is a dual-sensor, fixed-focus integrated system featuring a 1080P visible-light camera, a 9.1mm 640×512 thermal imager, and a high-precision three-axis stabilized gimbal. It supports dual output via network IP and HDMI. The gimbal adopts an FOC control solution with a high-precision encoder, offering excellent stability, compact size, lightweight construction, and low power consumption. The visible-light camera is built around a 2-megapixel effective SENSOR. Control over the gimbal and cameras is accessible through serial port, S.BUS, or network. Additionally, the system supports dual-channel video recording and photography to a local TF card.

DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

Voltage	DC 12V-26.2V	Power	Dynamic 5.5w
Pitch Angle action range	-40 ~ +100	Yaw Angle action range	-140 ~ +140
Roll Angle action range	-45 ~ +45	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position
Gimbal control speed adiustable	The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera	Control mode	Support network IP control ,serial port and S.BUS control

CMOS Size	1/2.8 inch 2 mega pixel Wide dynamic range CMOS SENSOR
Digital zoom	Support 9x digital zoom
Video Output	Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)	6mm lens FOV 49.8 29.3

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled focal plane microcalorimeter
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field angle	9mm camera lens, FOV 48.3 38.7
Measurement function	Support global temperature measurement and optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Gyroscope stabilization
