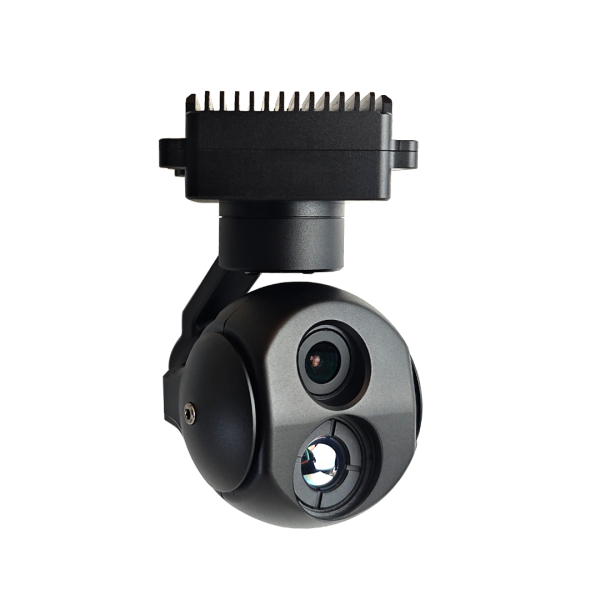

MDHU662G609P 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

China Moneypro

The MDHU662G609P is a professional dual-sensor gimbal camera system combining 1080P visible light imaging with 640×512 thermal imaging capabilities. Featuring a high-precision 3-axis stabilization gimbal with FOC control, it delivers exceptional stability in a compact, lightweight design with minimal power consumption. The system offers dual output via HDMI and IP network connectivity, supporting multiple control methods including serial port, S.BUS, and network protocols. With a 2-megapixel CMOS sensor, 9x digital zoom, and advanced thermal sensitivity of 50mK, it captures detailed imagery across visible and infrared spectrums. The integrated AI tracking system detects and follows humans and vehicles with simultaneous detection of up to 100 targets. Local TF dual-channel recording enables flexible video storage. Operating on DC 12V-26.2V with dynamic power consumption of 5.5W, this system is ideal for surveillance, inspection, and monitoring applications requiring both thermal and visible light analysis in professional environments.

The DHU290M609 is a dual-sensor, fixed-focus integrated system featuring a 1080P visible-light camera, a 9.1mm 640×512 thermal imager, and a high-precision three-axis stabilized gimbal. It supports both IP and HDMI outputs simultaneously, while the gimbal adopts an FOC control solution with a high-precision encoder, offering excellent stability, compact size, lightweight design, and low power consumption. The visible-light camera utilizes a 2-megapixel effective SENSOR. The gimbal and camera can be controlled via serial port, S.BUS, or network interface. Additionally, the system supports local dual-channel (visible + thermal) video recording and photo capture to a TF card.

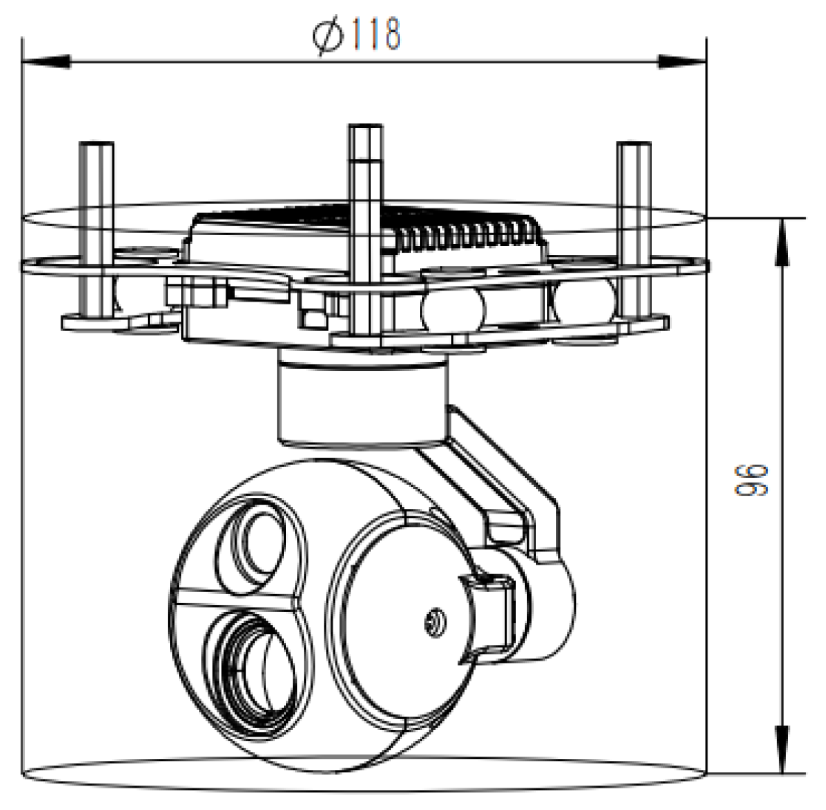

DHU662G609P 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

Voltage	DC 12V-26.2V	Power	Dynamic 5.5w
Pitch Angle action range	-40 ~ +100	Yaw Angle action range	-140 ~ +140
Roll Angle action range	-45 ~ +45	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position
Gimbal control speed adiustable	The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera	Control mode	Support network IP control ,serial port and S.BUS control

CMOS Size	1/2.8 inch 2 mega pixel Wide dynamic range CMOS SENSOR
Digital zoom	Support 9x digital zoom
Video Output	Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)	6mm lens FOV 49.8 29.3

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled focal plane microcalorimeter
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field angle	9mm camera lens, FOV 48.3 38.7
Measurement function	Support global temperature measurement and optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
