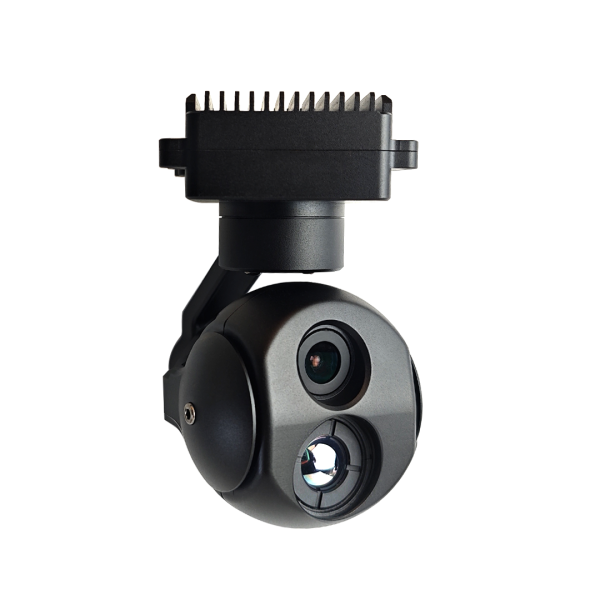

MDHU662A609 1080P Fixed Focus + 640 512 Thermal Imaging IP HDMI Dual Output Small Gimbal Camera

China Moneypro

The MDHU662A609 is a professional dual-sensor gimbal camera combining 1080P fixed-focus visible light imaging with 640×512 thermal imaging in a compact, lightweight design. Featuring a high-precision three-axis stabilization gimbal with FOC control, it delivers exceptional stability with minimal jitter. The system offers network IP and HDMI dual output, supporting multiple control modes including serial port, S.BUS, and network control. With a 2-megapixel CMOS sensor, 9x digital zoom, and advanced thermal capabilities including temperature measurement, it’s ideal for surveillance and monitoring. The gimbal provides extensive pitch, yaw, and roll ranges with one-key return functionality. Additional features include intelligent human and vehicle detection tracking up to 100 simultaneous targets, local TF dual-channel video recording, and low power consumption of just 5.5W dynamic. Operating from DC 12V-26.2V, this rugged system weighs only 190g and functions reliably in temperatures from -10 to +55 degrees Celsius.

The DHU662A609 is an integrated fixed-focus dual-sensor system featuring a 1080P visible-light camera, a 9.1mm 640×512 thermal imager, and a high-precision professional three-axis stabilized gimbal. It supports dual output via network IP and HDMI. The gimbal adopts an FOC control solution with a high-precision encoder, offering excellent stability, compact size, lightweight construction, and low power consumption. The visible-light camera utilizes a 2-megapixel effective SENSOR. Gimbal and camera operations can be controlled via serial port, S.BUS, or network, with local support for dual-channel video recording and image capture to a TF card.

DHU662A609 1080P Fixed Focus + 640 512 Thermal Imaging IP HDMI Dual Output Small Gimbal Camera

Voltage	DC 12V-26.2V	Power	Dynamic 5.5w
Pitch Angle action range	-40 ~ +100	Yaw Angle action range	-140 ~ +140
Roll Angle action range	-45 ~ +45	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position
Gimbal control speed adiustable	The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera	Control mode	Support network IP control ,serial port and S.BUS control

CMOS Size	1/2.8 inch 2.4 million pixels Wide dynamic range CMOS SENSOR
Digital zoom	Support 9x digital zoom
Video Output	Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)	FOV 35 28 21

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field angle	9mm camera lens, FOV 48 38
Measurement function	Support global temperature measurement and optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
