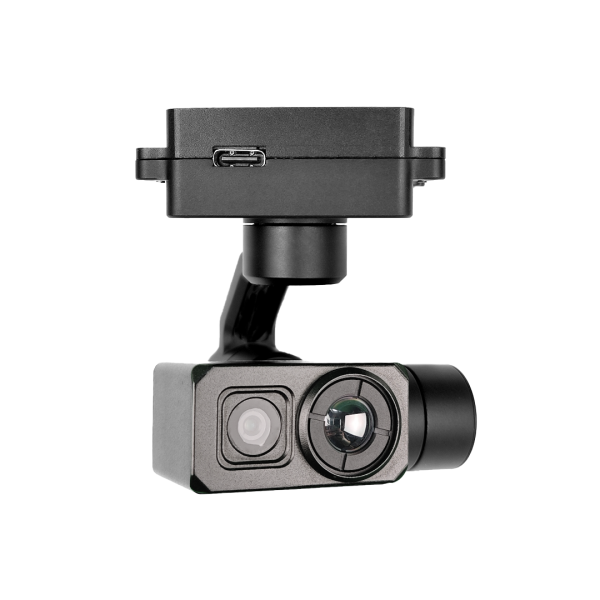

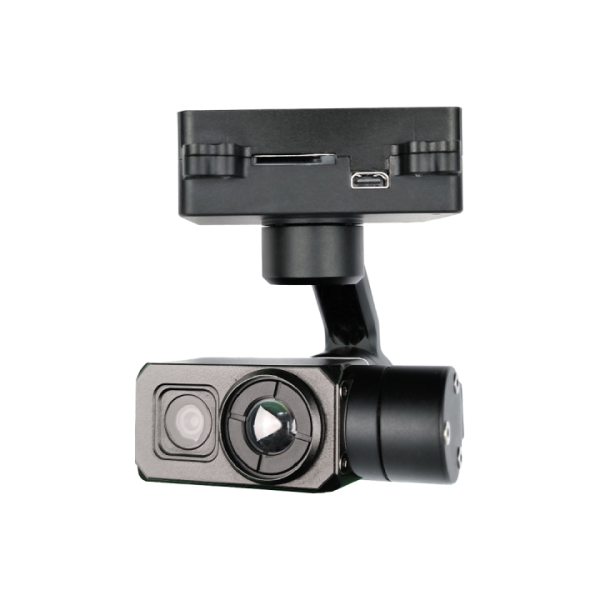

MDHU586G609P 48 million fixed focus+640 thermal imaging dual output small pod

China Moneypro

The MDHU586G609P is a professional dual-optical stabilization pod combining 48-megapixel fixed focus imaging with 640×512 thermal imaging capabilities. This compact, lightweight system features high-precision three-axis stabilization with exceptional jitter control of 0.02 degrees. The visible light camera utilizes a 1/2.0-inch 48MP CMOS sensor with 9x digital zoom and 1080P 30fps IP output. The thermal imaging system offers 8-14 micrometer wavelength detection with 50mK sensitivity and advanced human and vehicle recognition tracking up to 100 simultaneous targets. Supporting multiple control modes including network IP, UART, S-BUS, and PWM, the gimbal operates on DC 12V-26.2V with minimal 4.5W power consumption. Features include dual-channel TF recording, one-click position restore, and comprehensive pitch, roll, and yaw rotation ranges. Weighing just 145 grams with dimensions of 110×73.5mm, this professional-grade pod delivers superior stability and performance in a remarkably compact form factor.

The DHU586G609P is a dual-optical fixed-focus system featuring a 48MP visible-light camera, a 9.1mm 640×512 thermal imager, and a high-precision three-axis stabilization pod designed for professional applications. It supports network IP streaming and adopts an encoder-based FOC control architecture for gimbal movement, offering excellent stability, compact size, lightweight construction, and low power consumption. The visible-light sensor delivers a resolution of 48 megapixels effective. Users can operate the camera and gimbal via serial port, S.BUS, or network interface, and the system supports dual-channel recording and image capture to a local TF card.

DHU586G609P 48 million fixed focus+640 thermal imaging dual output small pod

Voltage	DC 12V-26.2V	Power	Dynamic 4.5W
Roll Angle	-30 +30	Pitch Angle	-45 +100
Yaw Angle	-140 +140	Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position
Adjustable Gimbal Speed	When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera	Control mode	Support network IP UART control (SBUS and PWM are optional)

CMOS Size	1/2.0 inch 48 megapixel CMOS Sensor
Digital Zoom	9x digital zoom
IP output mode	1080P 30fps
Field Angle(FOV)	4.8mm lens D78㣬H65㣬V51

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled focal plane microcalorimeter
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@F1.0@25
Field of view	9.1mm Lens Angle 48.3 x 38.7
Measurement function (optional)	Support global temperature measurement, optional full pixel temperature storage function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
