MDHU586G207 48 million fixed focus+256 thermal imaging dual output small pod
China Moneypro
The MDHU586G207 is a compact dual-optical stabilization pod combining 48-megapixel fixed focus imaging with 256×192 thermal imaging capabilities. This professional-grade system features high-precision three-axis stabilization with exceptional jitter control of 0.02 degrees. The 48MP visible light camera delivers 1080P network output with 9x digital zoom and real-time fast focusing under one second. The thermal imaging module offers 8-14 micrometer wavelength detection with 50mK sensitivity for precise temperature measurement. Supporting multiple control modes including network IP, UART, S-BUS, and PWM, the pod operates on DC 12V-26.2V with minimal 4.5W power consumption. Advanced features include human and vehicle detection tracking up to 100 simultaneous targets, local dual-channel TF recording, and one-click position restore. Weighing just 145 grams with compact 110×73.5mm dimensions, this lightweight pod delivers professional surveillance and thermal analysis capabilities for demanding applications.
The DHU586G207 is a dual-optical, fixed-focus gimbal system combining a 48MP visible-light camera, a 7mm 256×192 thermal imager, and a high-precision professional three-axis stabilized platform. It features network IP output and a high-accuracy encoder FOC control architecture, delivering excellent stability, compact size, lightweight design, and low power consumption. The visible light camera is equipped with a 48MP effective pixel sensor. Control over both the camera and gimbal is supported via serial port, S.BUS, and network interfaces. The system also allows local dual-channel recording and photography to a TF card.
| Voltage | DC 12V-26.2V | Power | Dynamic 4.5W |
| Roll Angle | -30 +30 | Pitch Angle | -45 +100 |
| Yaw Angle | -140 +140 | Jitter Angle | 0.02 |
| Horizontal Jitter Angle | 0.03 | One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera | Control mode | Support network IP UART control (SBUS and PWM are optional) |
| CMOS Size | 1/2.0 inch 48 megapixel CMOS Sensor |
| Digital Zoom | 9x digital zoom |
| IP output mode | 1080P 30fps |
| Focusing time | Real time fast focusing function, focusing time<1s |
| Field Angle(FOV) | 4.8mm lens D78㣬H65㣬V51 |
| Video Output | Network high-definition RTSP output 1080P, video stream local TF storage |
| Resolution ratio | 256*192 pixel |
| Space between pixels | 12 m |
| Type | Uncooled focal plane microcalorimeter |
| Wavelength Range | 8 14 m |
| Thermal sensitivity(NETD) | 50mk@25 @F1.0 |
| Field of view | 7mm Lens FOV 24.7 x 18.9 |
| Measurement (Optional) | Global temperature measurement, optional full pixel temperature saving |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

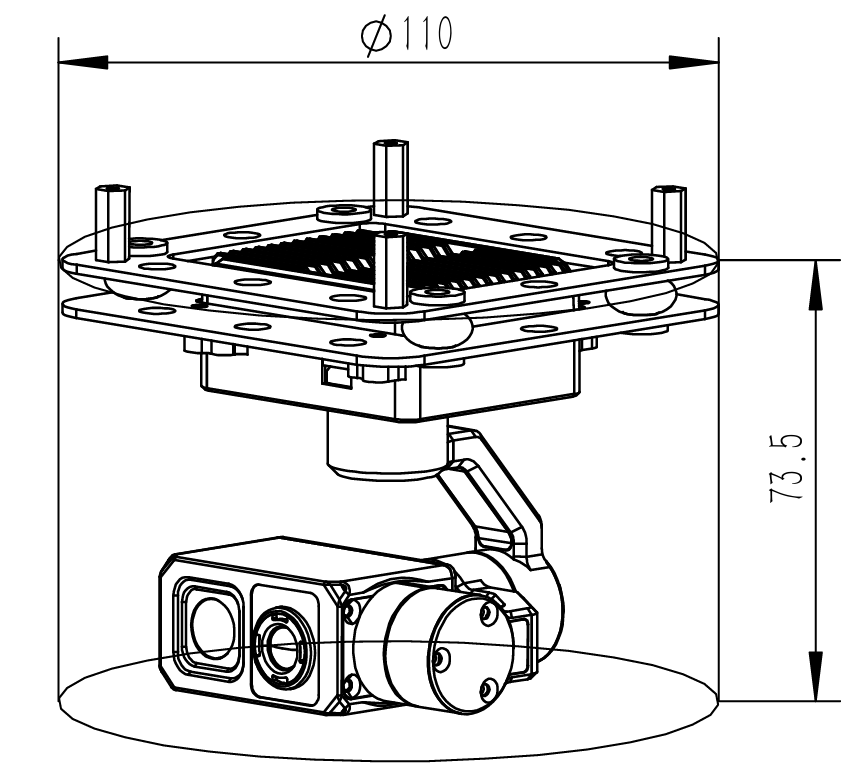

| Dimensions | 110*73.5 | Working Condition | -10 to +40 |
| Storage Environment | -20 to +60 | Weight | 145 10g |
