MDHU467 4K 120g mini Gimbal camera

China Moneypro

The MDHU467 is a compact 4K mini gimbal camera weighing just 120 grams, featuring a professional three-axis stabilization system with exceptional precision. Equipped with an 8-megapixel HD CMOS sensor and 9x digital zoom capability, it delivers stunning 4K and 1080P network RTSP stream output. The advanced three-axis gimbal uses high-precision encoder FOC control technology, ensuring remarkable stability with minimal jitter of just 0.02 degrees on pitch and roll. Operating on DC 12V-26.2V with ultra-low 4W power consumption, this lightweight system supports multiple control modes including network IP, S.BUS, and serial port connectivity. Features include real-time fast autofocus under 1 second, local TF storage with H264/H265 compression, and intelligent human and vehicle detection tracking up to 100 simultaneous targets. The one-click auto-return function and adaptive pan-tilt speed control enhance operational efficiency. With its compact 120mm x 73mm design, wide temperature range compatibility, and comprehensive connectivity options, the MDHU467 is ideal for professional surveillance, aerial platforms, and demanding imaging applications requiring reliable, stabilized 4K video capture.

The DHU467 is a dual-output 4K network gimbal camera system that integrates 9x digital zoom with a high-precision professional three-axis enhanced stabilization pod. It utilizes an IP network output architecture and employs a high-precision encoder FOC control scheme, offering excellent stability, compact size, lightweight construction, and low power consumption. The visible light camera features a high-definition sensor with an effective resolution of 8 megapixels. The system supports both 4K and 1080P network RTSP stream outputs. It provides control via network, serial port, and S.BUS interfaces, enabling operation of both the camera and the PTZ, while also supporting local TF card storage.

DHU467 4K 120g mini Gimbal camera

Voltage	DC 12V-26.2V	Power	Dynamic 4W
Roll angle action range	-45 +110	Pitch angle action range	-35 +100
Heading Angle action range	-140 +140	Pitch and Roll Jitter Angle	0.02
Horizontal Angle jitter	0.03	One-click back to center function	One key automatic fast return to the initial position

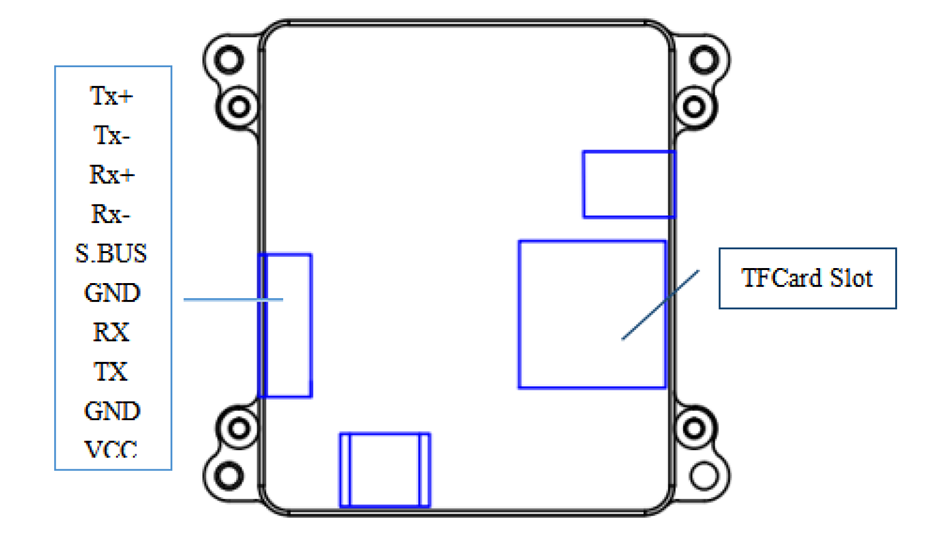

Pan- tilt control speed is adjustable	When the pan-tilt rotates, the speed is adaptive based on the current speed mode and the multiple of the visible light camera	Control mode	Support network IP control, SBUS control, serial port control(optional PWM control)

SENSOR	1/2.8 inch 8 megapixel HD CMOS SENSOR
Digital zoom	Supports 9x digital zoom
AF Time	Real time fast focusing, focusing time < 1s
Compressed storage mode	H264, H265, local TF storage for video streams
HDMI video	Micro-D HDMI 1080P 60fps
Network Output mode	1080P 30fps
Angle of view (FOV)	6mm lens, FOV 60 43

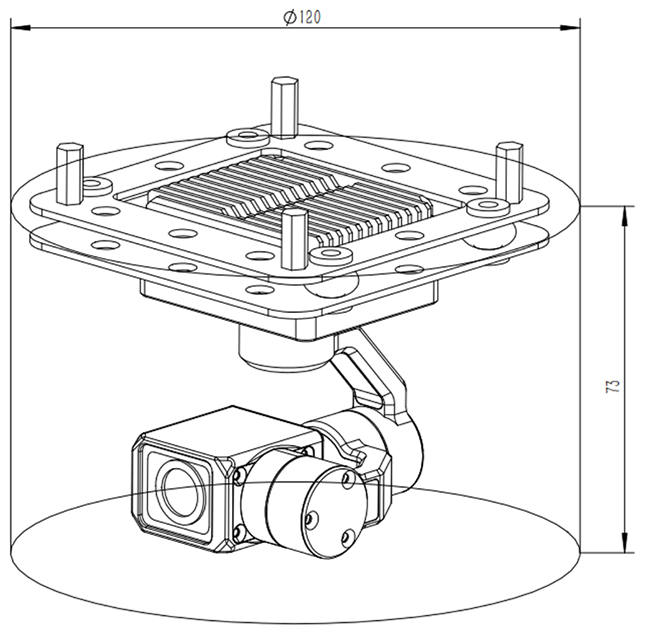

Device Size	:120mm H: 73mm	Work Condition	-10 to +45 / 20% to 80% RH
Storage Condition	-20 to +60 / 20% to 95% RH	Weight (Not including dampers)	120 10g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
