MDHU415S90 4K Dual visible light gimba

China Moneypro

The MDHU415S90 is a compact 3-axis stabilized dual visible light gimbal featuring an 8-megapixel camera with 25mm lens and a 2-megapixel camera with 6mm lens and IRCUT function. Delivering exceptional stability with minimal jitter of 0.02 degrees, this lightweight system operates on 3S-6S voltage with just 6.6W power consumption. It offers dual IP and HDMI outputs, supporting 4K and 1080P synchronized recording with picture-in-picture modes. The gimbal provides extensive control options via network, SBUS, and serial port, featuring 7x and 9x digital zoom capabilities. Advanced tracking detects and follows humans and vehicles with dynamic stabilization. With a one-click return function, adjustable gimbal speed, and local TF card storage, this professional-grade gimbal is ideal for surveillance and aerial applications requiring precision and reliability.

The DHU415S90 is a compact, triple-axis stabilized gimbal designed for dual visible light operation. It features two visible light cameras: an 8-megapixel camera and a 2-megapixel camera equipped with an IRCUT function. With dual IP and HDMI outputs, the system ensures high stability, a lightweight and small form factor, and low power consumption. It supports RTSP streaming over the network and allows two video feeds to be combined into a picture-in-picture (PiP) output, with multiple PiP modes available. Local recording to a TF card supports simultaneous dual-channel video and photo capture—one channel at 4K resolution and the other at 1080P. Both the camera and pan-tilt unit can be controlled via serial port or network, with digital zoom support. The visible light lenses offer focal lengths of 6mm and 25mm respectively.

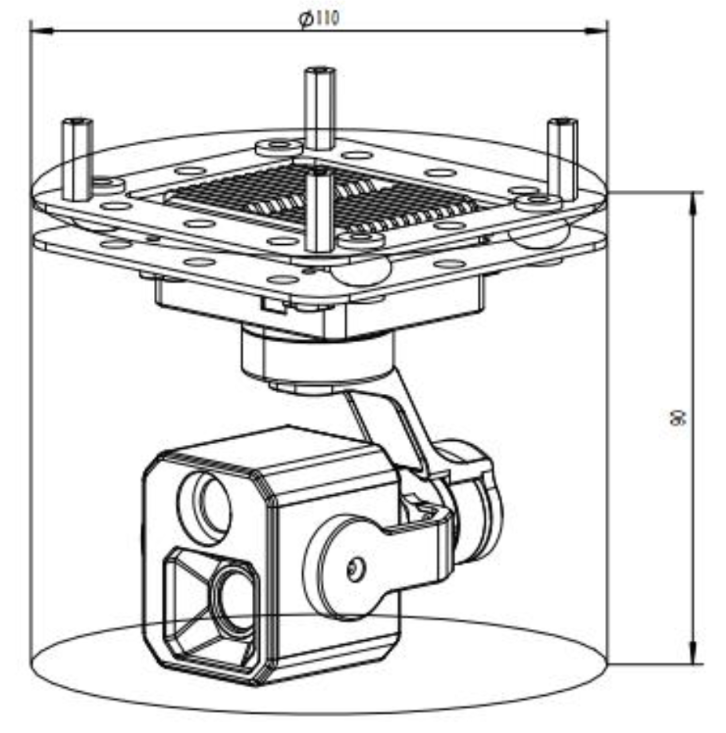

DHU415S90 4K Dual visible light gimba

Voltage	3S-6S 12V-26.2V	Power	6.6w
Roll Angle	-40 +40	Pitch Angle	-30 +100
Yaw Angle	-140 +140	Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-click Return Function	One-click restore to the initial position
Adjustable Gimbal Speed	When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera	Control mode	Support network IP, SBUS and serial port control

CMOS Size	8 Mega Pixels CMOS SENSOR
Digital Zoom	7x Digital Zoom
Compressed storage mode	H264, H265, video streaming local TF storage 4K/1080p
Field Angle (FOV)	25mm lens, FOV 10.5 7.8

CMOS Size	2 Mega Pixels CMOS SENSOR
Digital Zoom	9x Digital Zoom
Compressed storage mode	H264, H265, video streaming local TF storage 1080p
Field Angle (FOV)	6mm lens, FOV 60 43

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
