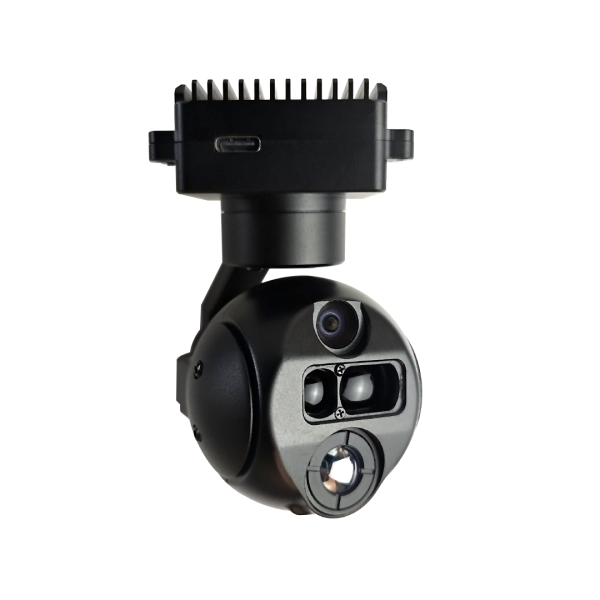

MDHU335G609L15 Prime lens +640 thermal imaging +1500m laser

China Moneypro

The MDHU335G609L15 is a professional integrated imaging system combining a 4MP prime lens visible-light camera with 9x digital zoom, a 640×512 thermal imaging sensor with 9x digital zoom, and a 1500m laser rangefinder. Featuring a stabilized 3-axis gimbal with high precision FOC control, this compact system delivers exceptional stability with minimal power consumption. The thermal imager uses an uncooled focal plane microbolometer with 50mK sensitivity, while the visible camera provides 1080P HDMI output. Supporting RTSP picture-in-picture streaming with 4 modes and 10 pseudo-color displays, it enables global temperature measurement and dual-channel TF card recording. The laser rangefinder offers 905nm Class 1 detection from 5-1500m with accuracy within 1m below 400m. Advanced AI tracking detects and follows up to 100 human and vehicle targets simultaneously. Controlled via network IP, serial port, or SBUS, this professional-grade system operates from DC12V-26.2V with minimal 7W static power consumption, making it ideal for surveillance, reconnaissance, and thermal analysis applications.

DHU335G609L15 is an integrated 4MP prime lens visible-light sensor with 9x digital zoom, a 9.1mm focal length 640 512 thermal imaging sensor with 9x digital zoom and an up to 1500km laser rangefinder, with professional stabilized 3-axis gimbal, supporting IP and HDMI video output. Adopted with high-precision encoder FOC control scheme, the gimbal has the features of high stability, compact size, light weight and low power consumption. The visible light camera uses a 4-megapixel sensor; the thermal imager utilizes a 640 512 resolution uncooled focal plane microbolometer. The camera system supports RTSP picture-in-picture streaming over the network, with 4 picture-in-picture modes, 10 pseudo-color display modes, and global temperature measurement. Both the serial port and the network can control the camera and the gimbal, and supports local TF card dual-channel recording and photo taking.

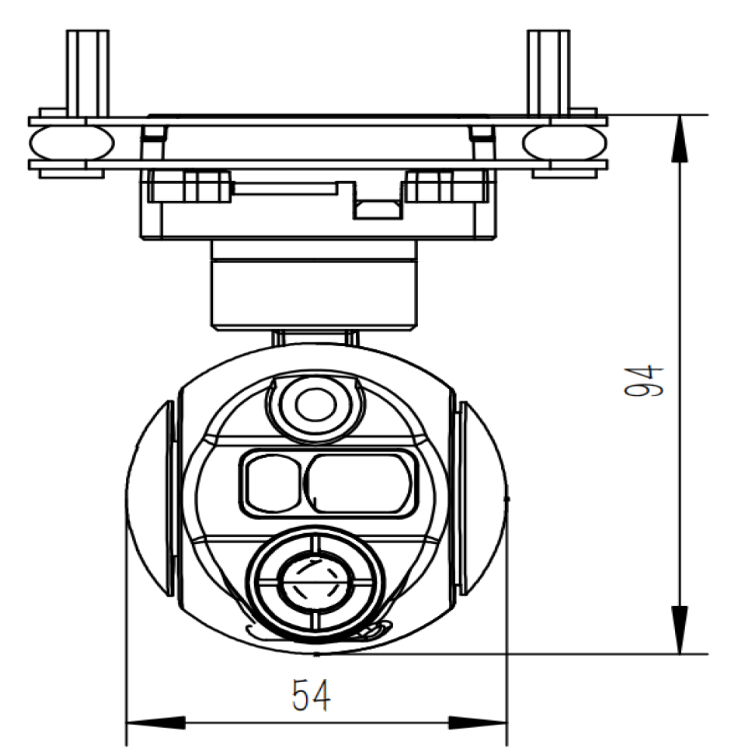

DHU335G609L15 Prime lens +640 thermal imaging +1500m laser

Voltage	DC12V-26.2V	Power	Static 7W
Roll Angle action range	-45 +45	Pitch action range	-45 +100
Yaw angle action range	-140 +140	The amount of angular jitter in pitch and roll direction	0.02
Horizontal Angle jitter	0.03	One-click return function	One-click automatic quick return to the initial position
The speed of the head control is adjustable.	The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera.	Control mode	Support network IP control and serial port control And SBUS control (pwm optional )

CMOS Size	CMOS SENSOR pixel: 4mega pixels
Digital zoom	Support 9x digital zoom
Compressed storage mode	H264 H265,video streaming, local TF storage
HDMI video	Micro-D HDMI 1080P 60fps
Field Angle FOV	FOV 92 59

Resolution	640*512
Pixel spacing	12 m
Type	Uncooled focal plane microbolometer
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@F1.0
Field of view	9.1mm Lens; Angle: 45.76 37.31
Measurement function (optional)	Center point, highest temperature, lowest temperature, temperature display

Laser wave	905nm (class 1 laser)
Detect range	5-1500m
Accuracy	Within 400m, 1m; Above 400, 0.4m%/ 0.1m

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
