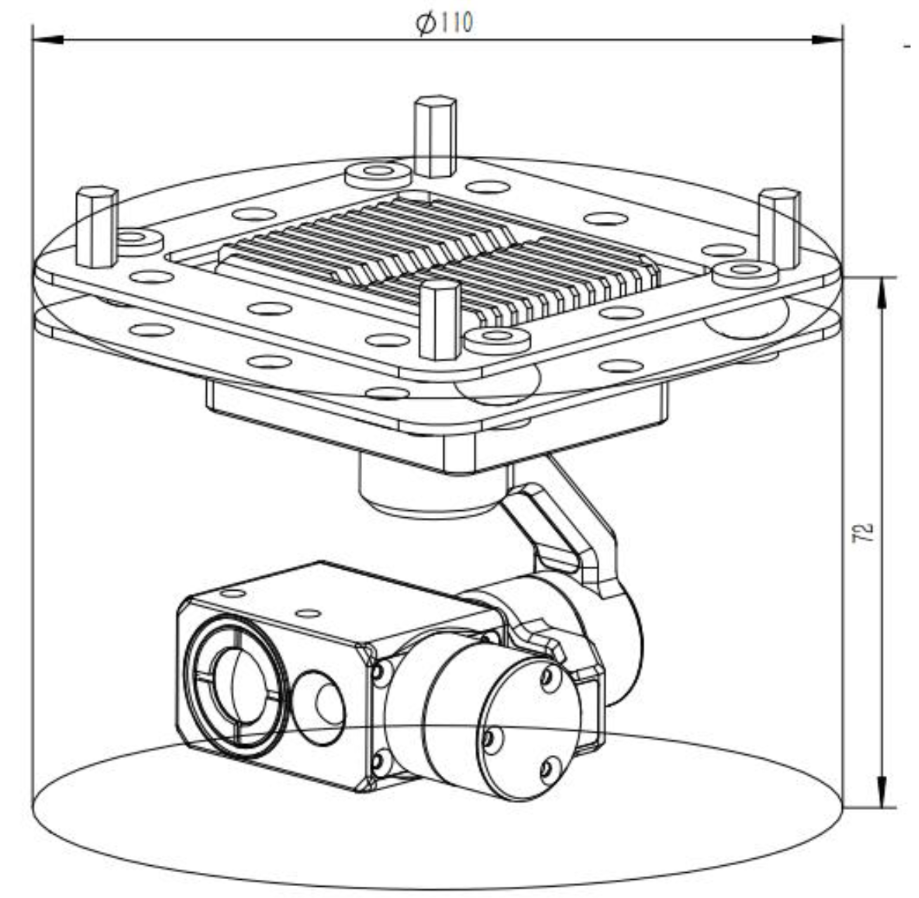

MDHU335G609 Fixed focus visible light + 640×512 thermal imaging dual light 120g small gimbal, IP /HDMI outpu
China Moneypro
The MDHU335G609 is a compact 120g dual-light drone gimbal combining fixed-focus visible light and 640×512 thermal imaging capabilities. Featuring a high-precision 3-axis stabilized PTZ system, it delivers exceptional stability in a lightweight design with minimal power consumption. The 4-megapixel CMOS visible light camera pairs with an uncooled vanadium oxide thermal detector offering 40mK sensitivity. Dual IP and HDMI outputs support RTSP streaming, picture-in-picture switching, multiple pseudo-color displays, and global temperature measurement. The system includes 9x digital zoom, local TF video recording, and supports network or serial control. With a 9.1mm thermal lens providing 48.3×38.7-degree field of view and advanced human and vehicle detection tracking up to 100 simultaneous targets, this gimbal excels in surveillance, inspection, and reconnaissance applications requiring both thermal and visible imaging in a portable package.
DHU335G609 is a fixed focus dual light drone gimbal integrated, Fixed focus visible light camera, 640 512 thermal imaging module, and high-precision professional 3-axis stabilized PTZ. It adopts network IP and HDMI dual output. The gimbal has the characteristics of high stability, small size, light weight and low power consumption; The visible light camera adopts CMOS SENSOR with 4 million effective pixels; The thermal imaging adopts 640 512 resolution vanadium oxide detector. The system supports network RTSP stream output, picture in picture switch, multiple pseudo color display, and global temperature measurement function. Both the serial port and the network can control the cameras and PTZ, support local TF two-way video recording and photography. 9x digital zoom will make the target more visible. This thermal imaging lens has a focal length of 9.1mm.
Voltage
DC 12V-26.2V
Power
Dynamic 4W
Roll Angle
-25 +25
Pitch Angle
-30 +90
Yaw Angle
-140 +140
Jitter Angle
0.02
Horizontal Jitter Angle
0.03
One-Click Restore
One-click restore to the initial position
Adjustable Gimbal Speed
When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera
Control mode
Support network IP UART control (SBUS and PWM are optional)
CMOS Size
4 Mega Pixels CMOS SENSOR
Digital Zoom
9x
Compressed storage mode
H264, H265, video stream local TF storage
HDMI video
Micro-D HDMI 1080P 60fps
IP output mode
1080P 30fps
Field Angle(FOV)
FOV 92 59
Resolution ratio
640 512 pixel
Space between pixels
12 m
Type
Uncooled vanadium oxide
Wavelength Range
8 14 m
Thermal sensitivity(NETD)
40mk@F1.0@25
Field of view
9.1mm Lens Angle 48.3 x 38.7
Measurement function (optional)
Support global temperature measurement, optional full pixel temperature storage function
