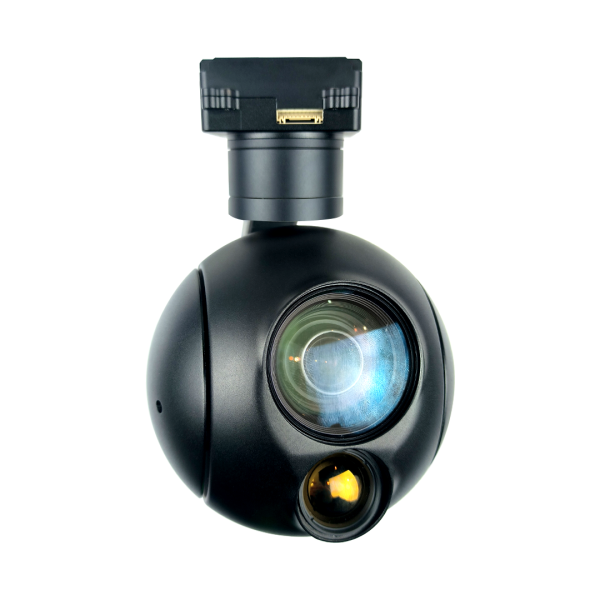

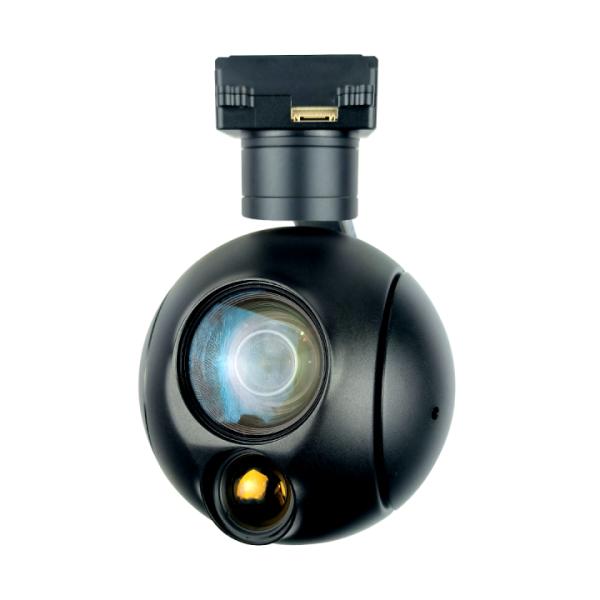

MDHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

China Moneypro

The MDHU30G625 is a professional three-axis stabilization gimbal combining 30X optical zoom visible light imaging with 640×512 thermal imaging. Featuring a compact, lightweight design at 645g, it delivers exceptional stability with minimal jitter and low power consumption of just 6W. The visible light camera uses a 2-megapixel wide dynamic CMOS sensor with fast autofocus under 1 second, while the thermal camera employs uncooled vanadium oxide technology with 25mm lens and 50mK sensitivity. Advanced AI capabilities enable simultaneous detection of up to 100 targets with human and vehicle recognition. Multiple control options include network IP, S.BUS, and UART protocols. The system supports dual-channel synchronized recording, picture-in-picture display, pseudo-color switching, and optional global temperature measurement. Ideal for surveillance, search and rescue, and professional monitoring applications.

The DHU30G625 is a professional three-axis gimbal camera system featuring an integrated 270x hybrid zoom and a 640×512 thermal imaging module with a 25mm lens. Designed with a compact structure, it offers high stability, strong integration, and low power consumption. The visible light camera is equipped with a wide dynamic range sensor delivering 2 effective megapixels. The thermal imager utilizes a vanadium oxide detector at 640×512 resolution and includes a built-in calibration shutter. A software ground station is provided, enabling dual-channel video with picture-in-picture display. The gimbal and camera can be directly controlled via network, S.BUS, and UART interfaces. Functions include local TF card storage, network-based file read/write, dual-channel synchronous recording, multiple PiP display modes, and switchable pseudo-color palettes.

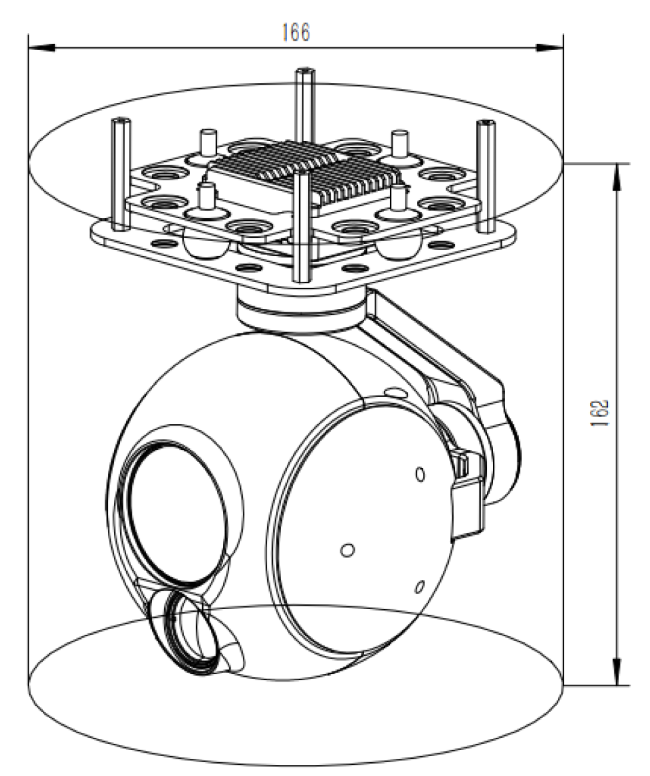

DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

Voltage	DC12 26.2V	Power	Dynamic 6W
Roll Angle	45 45	Pitch Angle	-40 +100
Yaw Angle	-295 +295	Pitch and Roll Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position
Adjustable Gimbal Speed	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control Modes	Support network IP control, S.BUS control, UART control (PWM control is optional)

CMOS Size	1/2.8 INCH 200 mega pixel wide dynamic CMOS SENSOR
Optical Zoom	30x HD optical zoom lens, f=4.5 135 mm 5%
AF Time	Real time fast focusing, focusing time < 1s
Video Output	Network output RTSP 1080P stream, local TF 1080P storage
Field Angle(FOV)	D : WIDE 67.8o 5% TELE 2.77o 5% H : WIDE 59.8o 5% TELE 2.34o 5% V : WIDE 40.5o 5% TELE 1.48o 5%

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field of view	25mm Lens Field of view 17.3 14.0
Measurement function (optional)	Support global temperature measurement, optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
