MDHU290G609L11 1080p visible light +640 thermal imaging +1100 m laser rangin

China Moneypro

The MDHU290G609L11 is an advanced integrated imaging system combining 1080p visible-light camera with 640×512 thermal imaging and 1100m laser ranging capabilities. Featuring a compact three-axis stabilized gimbal pod, this system delivers exceptional performance with minimal power consumption. The 2-megapixel visible-light camera with wide dynamic range supports 9x digital zoom, while the uncooled vanadium oxide thermal module provides precise temperature measurement with ten pseudo-color display modes. The 905nm Class 1 laser rangefinder offers accurate distance detection from 5 to 1100 meters. Dual network IP and HDMI outputs enable flexible connectivity, with RTSP streaming support and four picture-in-picture modes. Advanced features include human and vehicle detection tracking up to 100 simultaneous targets, adjustable gimbal control via network or serial port, and local TF dual recording. Operating on DC12V-26.2V with dynamic 7W power consumption, this lightweight system weighs just 315g and operates reliably in temperatures from -10 to +55 degrees Celsius, making it ideal for surveillance, reconnaissance, and monitoring applications.

The DHU290G609L11 is a compact, high-performance three-axis stabilized gimbal camera designed for enhanced stability and low power consumption. It integrates a 1080P visible-light camera with a 9.1mm lens and a 640×512 thermal imaging module based on a vanadium oxide detector. The system supports 9× digital zoom and includes a 1100m laser rangefinder. Featuring dual output via network IP and HDMI, the gimbal achieves high precision while maintaining small size and light weight. The visible-light camera utilizes a wide dynamic range 2-megapixel sensor. The thermal imager provides ten pseudo-color display options, global temperature measurement, and four picture-in-picture modes. Real-time RTSP streaming is supported over the network. Both serial port and network protocols enable full control of the camera and pan-tilt movements. Additionally, the device supports dual recording and photo capture to a local TF card.

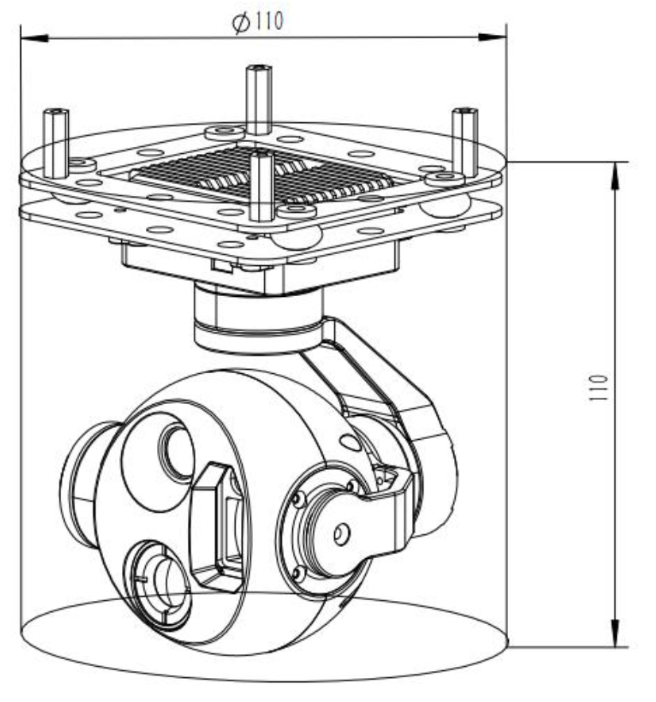

DHU290G609L11 1080p visible light +640 thermal imaging +1100 m laser rangin

Voltage	DC12V-26.2V	Power Supply	Dynamic 7W
Roll Angle action range	-40 +40	Pitch action range	-45 +100
Yaw angle action range	-145 +145	The amount of angular jitter in pitch and roll direction	0.02
Horizontal Angle jitter	0.03	One-click return function	One-click automatic quick return to the initial position
The speed of the head control is adjustable	The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera	Control mode	Support network IP control and serial port control And SBUS control

CMOS Size	CMOS SENSOR pixel: 2mega pixels
Digital Zoom	Support 9x digital zoom
Compressed Storage Mode	H264 H265,video streaming local TF storage
Field of View (FOV)	FOV 60 43
HDMI video	Micro-D HDMI 1080P 60fps
Network output mode	1080P 30fps

Resolution	640*512 pixel
Pixel spacing	12 m
Type	Uncooled vanadium oxide infrared thermal imagery instrument
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@F1.0@25
Field of view	9.1mm Lens; Angle: 45.76 37.31
Measurement Functions	Center point, highest temperature, lowest temperature, temperature display

Laser wave	905nm (class 1 laser)
Detect range	5-1100m
Accuracy / Resolution	Within 400m, 1m; Above 400, 0.4m%

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
