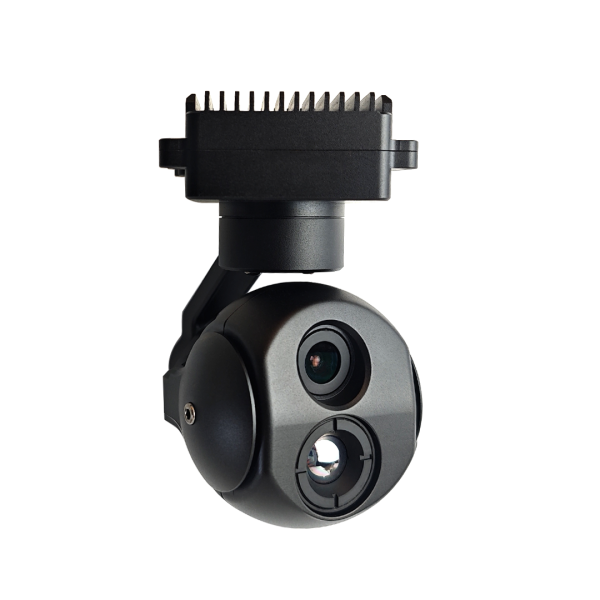

MDHU290A609 1080P Fixed Focus + 640 512 Thermal Imaging IP HDMI Dual Output Small Gimbal Camera
China Moneypro
The MDHU290A609 is a compact dual-sensor gimbal camera combining 1080P fixed-focus visible light imaging with 640×512 thermal imaging in a lightweight, stabilized platform. Featuring a high-precision three-axis gimbal with FOC control technology, it delivers exceptional stability with minimal jitter and supports multiple control methods including network IP, serial port, and S.BUS. The system offers dual output via IP and HDMI, 9x digital zoom, and local TF dual-channel video recording. With advanced thermal capabilities including 50mK sensitivity and global temperature measurement, plus intelligent human and vehicle detection tracking up to 100 simultaneous targets, this professional-grade camera operates efficiently at just 5.5W dynamic power consumption. Its compact 120×93.5mm design and 190g weight make it ideal for aerial platforms and surveillance applications requiring both visible and thermal reconnaissance in demanding environments from -10 to +55 degrees Celsius.
The DHU290M609 is a dual-sensor, fixed-focus integrated system featuring a 1080P visible light camera, a 9.1mm 640×512 thermal imager, and a high-precision three-axis stabilized gimbal. It supports network IP and HDMI dual outputs, while the gimbal adopts an FOC control solution with a high-precision encoder, offering excellent stability, compact size, light weight, and low power consumption. The visible light sensor delivers an effective 2-megapixel resolution. The gimbal and cameras can be operated via serial port, S.BUS, or network, and the system supports local dual-channel (TF card) video recording and photo capture.
Voltage
DC 12V-26.2V
Power
Dynamic 5.5w
Pitch Angle action range
-40 ~ +100
Yaw Angle action range
-140 ~ +140
Roll Angle action range
-45 ~ +45
Tilt and roll direction angle jitter
0.02
Horizontal angle jitter
0.03
One-key return function
One-click automatic quick return to the initial position
Gimbal control speed adiustable
The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera
Control mode
Support network IP control ,serial port and S.BUS control
CMOS Size
1/2.8 inch 2 mega pixel Wide dynamic range CMOS SENSOR
Digital zoom
Support 9x digital zoom
Video Output
Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)
FOV:60 x43
Resolution ratio
640 512 pixel
Space between pixels
12 m
Type
Uncooled vanadium oxide
Wavelength Range
8 14 m
Thermal sensitivity(NETD)
50mk@25 @F1.0
Field angle
9mm camera lens, FOV 48 38
Measurement function
Support global temperature measurement and optional full pixel temperature saving function
