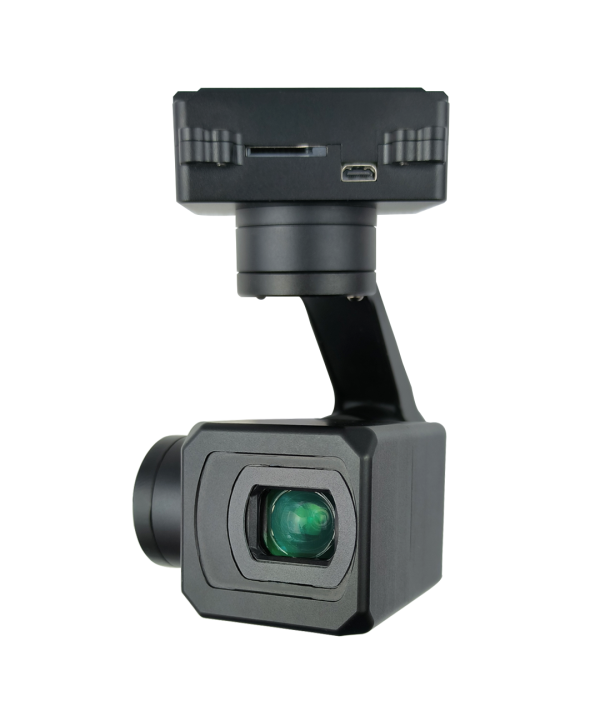

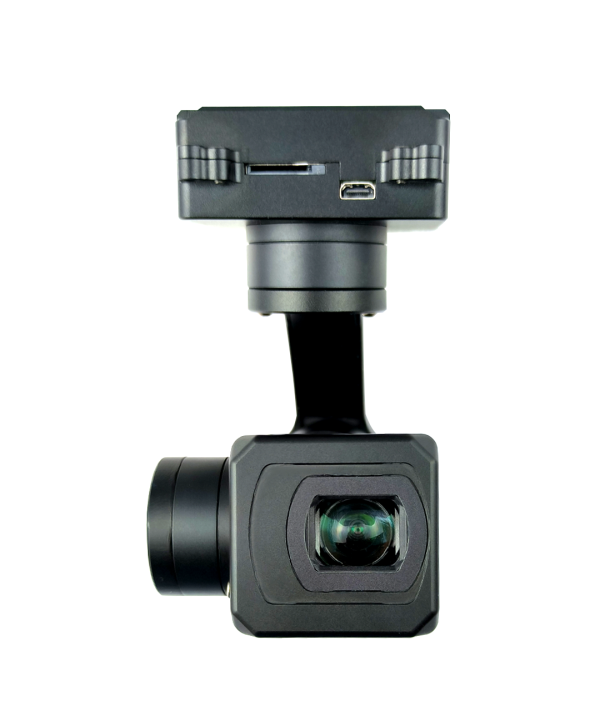

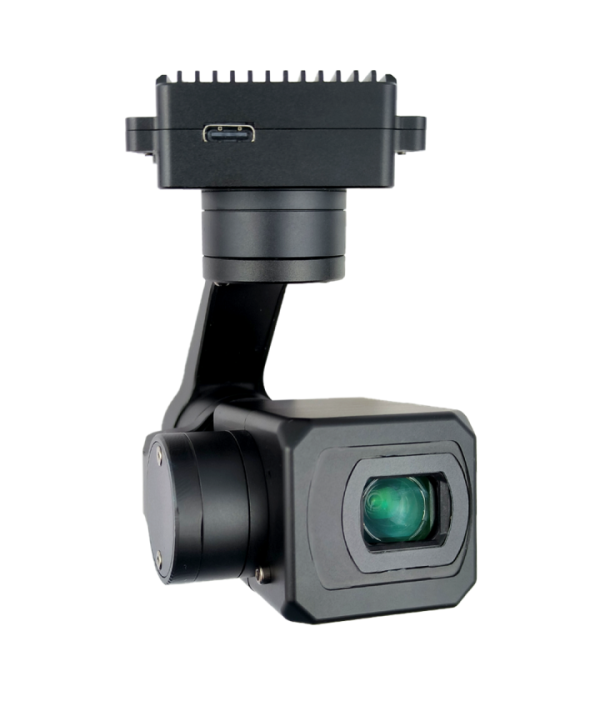

MDHU05S35 45x hybrid zoom dual output small gimal

China Moneypro

The MDHU05S35 is a compact professional gimbal featuring a 45x hybrid zoom camera with advanced 3-axis stabilization. It delivers exceptional stability with minimal jitter of 0.02 degrees on pitch and roll, and 0.03 degrees horizontally. The system includes a 4MP CMOS sensor with 5x optical zoom, real-time autofocus under 1 second, and dual IP HDMI output for flexible connectivity. Supporting network IP, S.Bus, and serial port control, it operates efficiently at just 6W static power consumption. The gimbal offers extensive motion ranges with pitch from -45 to +120 degrees and heading from -145 to +145 degrees. Features include one-click auto-return to center, adaptive speed control, and local TF dual-channel recording. Weighing only 210 grams and measuring 99x120mm, it’s ideal for surveillance and monitoring applications. Advanced tracking capabilities detect and follow humans and vehicles simultaneously, with support for up to 100 targets and dynamic stabilization debounce for reliable performance in demanding environments.

The DHU05S35 is a compact single-zoom gimbal that combines a 45x hybrid zoom camera with a high-precision professional three-axis stabilized PTZ. It features both IP and HDMI outputs, with PTZ control managed via IP. The gimbal employs an FOC control scheme with a high-precision encoder, offering excellent stability, a lightweight and compact design, and low power consumption. The visible light camera is built around a 4-megapixel effective sensor. Control of both the camera and PTZ is supported via serial ports, S.BUS, and network interfaces. Additionally, the system enables dual-channel video recording and photography to a local TF card.

DHU05S35 45x hybrid zoom dual output small gimal

Voltage	DC 12V-26.2V	Power	Static 6W
Roll angle action range	-45 +45	Pitch angle action range	-45 +120
Heading Angle action range	-145 +145	Pitch and Roll Jitter Angle	0.02
Horizontal Angle jitter	0.03	One-click back to center function	One key automatic fast return to the initial position

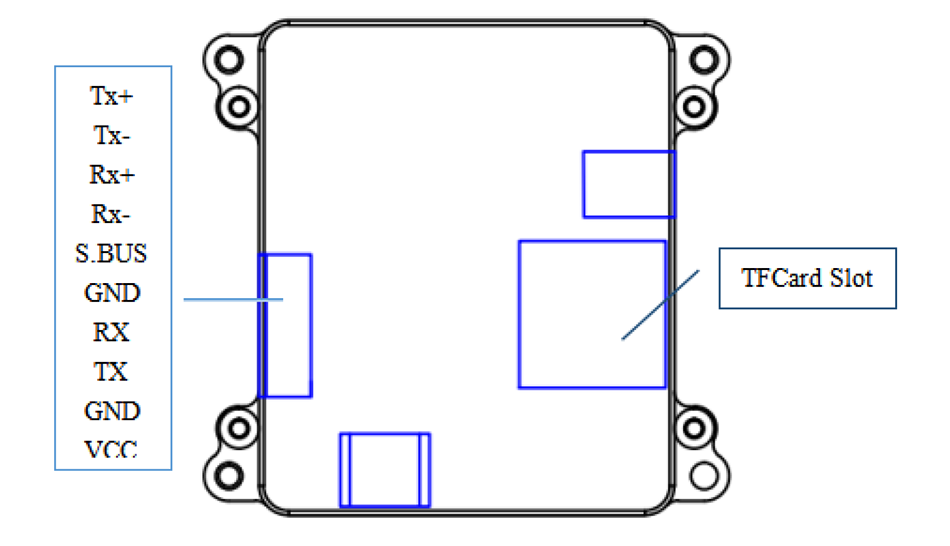

PTZ control speed adjustable	When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera	Control mode	Support network IP, S.Bus and Serial port control (Optional PWM control)

SENSOR	1/3 inch 4MP CMOS SENSOR
Optical Zoom	5x HD optical zoom lens, f=5 10% 25 10%mm
AF Time	Real time fast focusing, focusing time < 1s
Video output	Network RTSP 1080p output, video stream local TF storage
Field Angle(FOV)	D : WIDE 61.1o TELE 12.41o H : WIDE 50.12o TELE 10.81o V : WIDE 38.07o TELE 8.13o

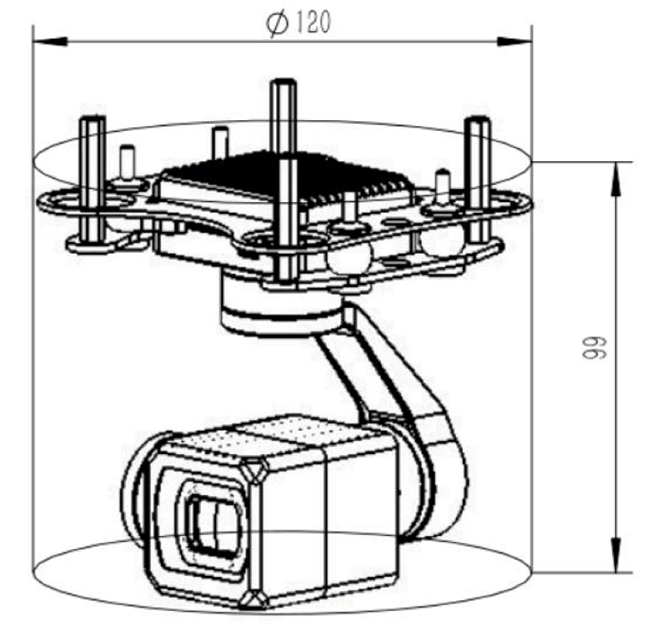

Device Size	99mm 120mm	Work Condition	-10 to +45 / 20% to 80% RH
Storage Condition	-20 to +60 / 20% to 95% RH	Weight (Not including dampers)	210 10g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
