MDHU05G207 45x Hybrid Zoom Dual Output Small Gimbal Camera

China Moneypro

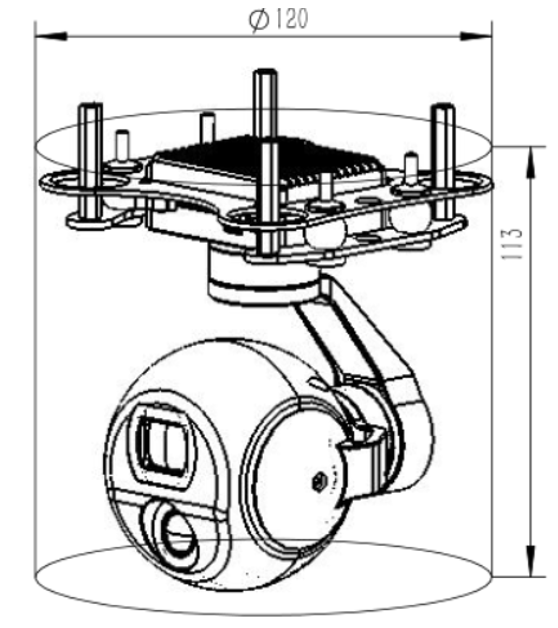

The MDHU05G207 is a professional-grade gimbal camera system featuring 45x hybrid zoom capability with integrated thermal imaging. It combines a 4-megapixel visible light camera with a 256×192 thermal module and high-precision three-axis stabilization. The system delivers dual IP and HDMI outputs with RTSP picture-in-picture streaming and multiple display modes. Advanced features include global temperature measurement, intelligent human and vehicle detection tracking up to 100 simultaneous targets, and local dual-channel TF video recording. With exceptional stability at 0.02-0.03 degree angular jitter, compact 120x113mm dimensions, and lightweight 260g design, it operates on 12-26V DC with minimal 6.5W power consumption. Control options include network IP, S.Bus, and serial port interfaces with adaptive speed adjustment. Perfect for surveillance, reconnaissance, and thermal analysis applications requiring professional performance in a portable package.

The DHU05G207 is a zoom dual-optical system integrating a 45x hybrid zoom, a 256 192 thermal imaging module, and a high-precision professional three-axis stabilization pod. It features dual network IP and HDMI outputs, and a high-precision encoder Field-of-Center (FOC) control scheme for the gimbal, resulting in high stability, compact size, light weight, and low power consumption. The system supports RTSP picture-in-picture streaming, multiple picture-in-picture modes, multiple pseudo-color display options, and global temperature measurement. The visible light camera features a 4-mega pixel sensor. Both the camera and gimbal can be controlled via the serial port, S.BUS, and network. Local TF dual-channel video recording and photography are supported.

DHU05G207 45x Hybrid Zoom Dual Output Small Gimbal Camera

Voltage	DC 12V-26V	Power	Dynamic 6.5W
Roll Angle action range	-45 ~+45	Pitch action range	-45 ~+100
Yaw angle action range	-140 +140	The amount of angular jitter in pitch and roll direction	0.02
The amount of horizontal Angle jitter	0.03	One-click return function	One click automatic quick return to the initial position

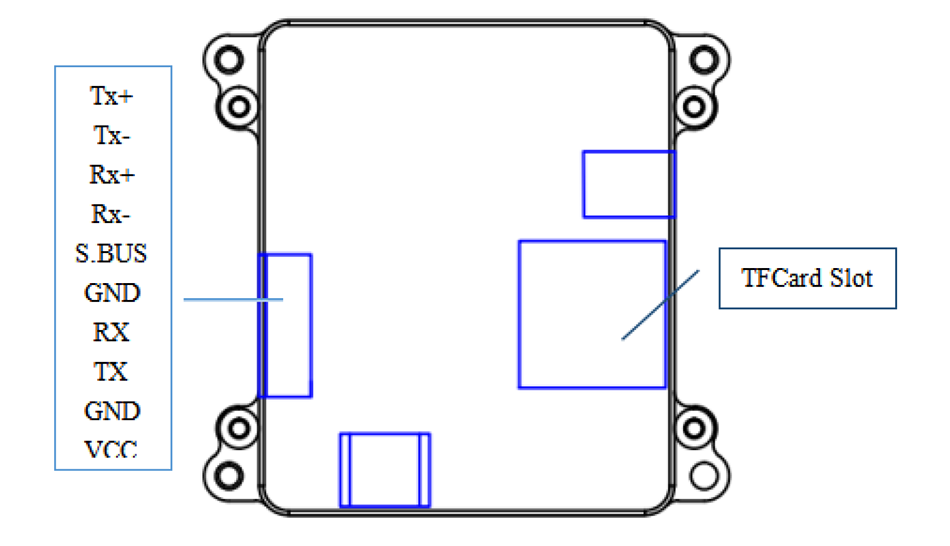

PTZ control speed adjustable	When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera	Control mode	Support network IP, S.Bus and Serial port control (Optional PWM control)

CMOS Size	1/2.8 inch 4MP CMOS SENSOR
Optical zoom	5x HD optical zoom lens, f=5 10% 25 10%mm
focusing time	Real time focusing, fast focusing time < 1s
Video Output	Network RTSP 1080p output, video stream local TF storage
Field Angle(FOV)	D : WIDE 61.1o TELE 12.41o H : WIDE 50.12o TELE 10.81o V : WIDE 38.07o TELE 8.13o
Support mode	1080P 30fps

Resolution ratio	256*192 pixel
Space between pixels	12 m
Type	Uncooled Vanadium Oxide Detector
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field Angle	7mm Lens FOV 24.7 x 18.9
Measurement (Optional)	Global temperature measurement, optional full pixel temperature saving

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
