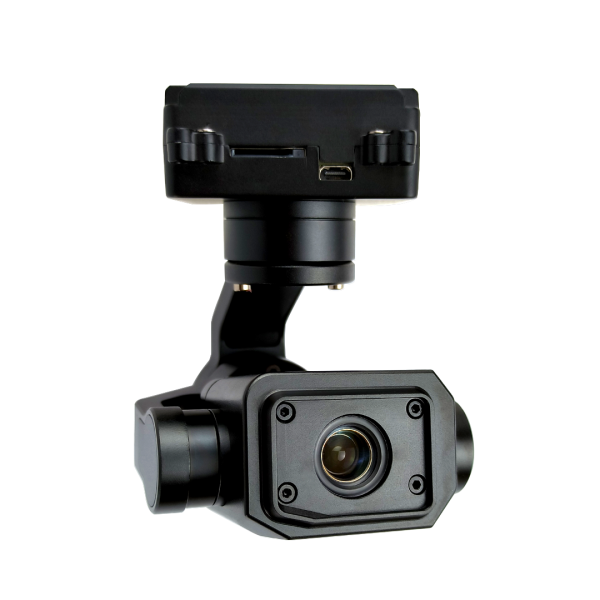

MDHU03 48MP Million Pixels 3-Axis Single light Gimbal, HDMI&IP output

China Moneypro

The MDHU03 is a professional 48-megapixel integrated gimbal system featuring a 3-axis stabilization platform with 3x optical zoom capability. Equipped with a 1/2-inch CMOS sensor, it delivers exceptional image quality with real-time fast focusing under one second. The system offers multiple connectivity options including HDMI and IP output with RTSP streaming support, alongside network, serial port, and S.BUS control modes. Its advanced three-axis gimbal utilizes high-precision FOC encoder control for superior stability with minimal jitter angles of 0.02 degrees pitch and roll. The compact design weighs just 210 grams while maintaining low power consumption at 6W dynamic operation. Features include intelligent human and vehicle detection tracking up to 100 simultaneous targets, 9x digital zoom, one-click position restore, and local TF card storage. Operating across -10 to +45 degrees Celsius with adjustable pan-tilt speeds, this lightweight professional system is ideal for surveillance, broadcasting, and aerial applications requiring precision stabilization and high-resolution imaging.

DHU03 is a single light integrated system with 3x optical zoom and high-precision professional three-axis stab gimbal. It adopts HDMI&IP output, and the adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The zoom visible light camera adopts a SENSOR with an effective pixel count of 48 million; The system supports network RTSP stream output. Network, serial port and S.BUS, and can control the camera andPTZ, and support local TF storage.

DHU03 48MP Million Pixels 3-Axis Single light Gimbal, HDMI&IP output

Voltage	DC12V-26.2V	Power	Dynamic 6W
Roll angle action range	-45 +45	Pitch angle action range	-130 +30
Yaw angle action range	-150 +150	Pitch and Roll Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position
Pan- tilt control speed is adjustable	When the pan-tilt rotates, the speed is adaptive based on the current speed mode and the multiple of the visible light camera	Control mode	Support network IP control, SBUS control, serial port control(Optional PWM control)

SENSOR	1/2 inch 48 megapixel CMOS SENSOR
Optical Zoom	3x High definition optical zoom lens, 15mm(Wide)-50mm(Tele) 5%
Digital zoom	9x digital zoom
Focusing time	Real time fast focusing function, focusing time<1s
Field Angle (FOV)	D : WIDE 28.98o 3% TELE 9.06o 3% H : WIDE 23.48o 3% TELE 7.29o 3% V : WIDE 17.81o 3% TELE 5.49o 3%
Video output	Network high-definition RTSP output 1080P, video stream local TF storage

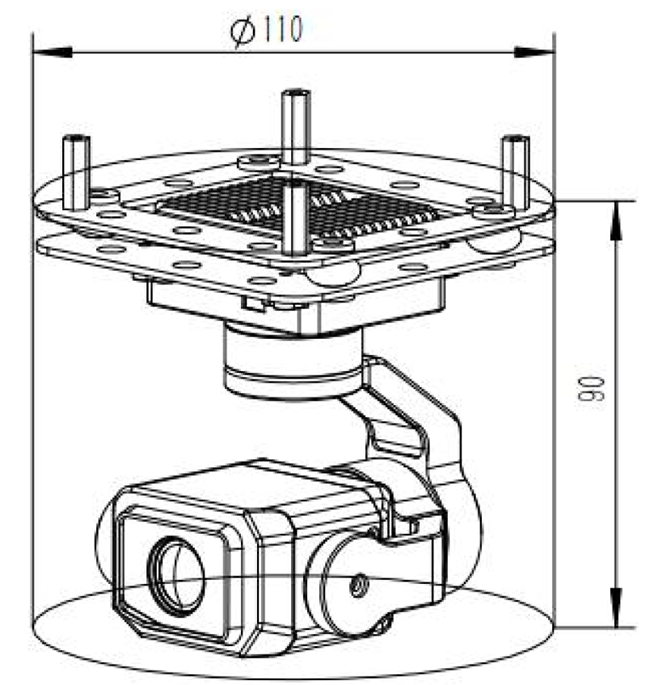

Device Size	110mm 90mm	Work Condition	-10 to +45 / 20% to 80% RH
Storage Condition	-20 to +60 / 20% to 95% RH	Weight (Not including dampers)	210 10g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Gyroscope stabilization
