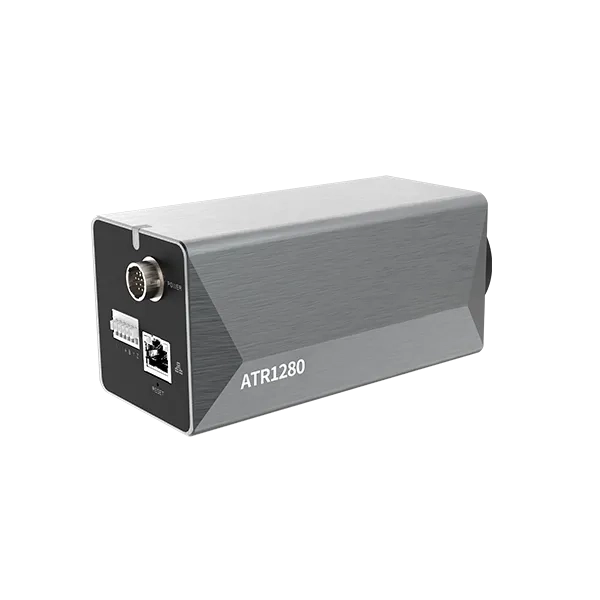

MATR1280 HD Online Thermal Camera

China Moneypro

ATR1280 is a high-performance and high-precision electrically adjustable temperature measurement thermal imager that outputs infrared images with a resolution of 1280 x 1024.

It adopts an electric focusing scheme and supports the GigE protocol, ensuring stable operation and fast response.

Equipped with professional application software, it is an ideal choice for fields such as education, scientific research, and industrial automation.

Feature

High-definition images and precise temperature measurement

Using an infrared detector with a resolution of up to 1280 1024, ATR1280 provides users with clearer and more detailed infrared thermal images.

High-speed data transmission

Equipped with a Gigabit network interface that supports the GigE protocol, the device enables real-time transmission of temperature data, for remote monitoring and data analysis in industrial scenarios.

Wide Measurement Range and Temperature Compensation Algorithm

With a wide measurement range from -20 C to +550 C, ATR1280 is suitable for industrial scenarios with various high-temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.

Specification

Thermal Imaging Parameters
Detector	Uncooled VOx detector
Infrared Resolution	1280 1024
Pixel pitch	12 m
Spectral Band	8 m~14 m
Thermal Sensitivity (NETD)	<50mK
Temperature Measurement Function
Measurement Range	-20 ~+150 ,0 ~550
Measurement Accuracy	2 C or 2% of readings
Temperature Measurement Correction	Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance
Measurement Tool	Settings of measurement rules for a total of 12 points, lines, and areas Supports isotherm setting
Temperature Width Stretch	Support temperature width stretch
Image and Video
Frame Rate	15 Hz
Palettes	18 color palettes including black-hot, white-hot, iron red, rainbow, etc.
Thermal Image Capture	Support thermal image capture and secondary analysis
Mirror Image	Horizontal/Vertical/Diagonal
Digital Zoom	1.0~8.0 continuous zoom (step size: 0.1)
System Interface
Communication interface	RJ45, supporting Gigabit network.
Network Protocol	TCP, UDP, ICMP, DHCP
Interface Protocol	GigE Vision
Device Specifications
Operating Temperature	-20 ~+60
Power supply mode	6~16V DC
Typical Power Consumption	4.5W
Dimensions	70mm 63mm 143mm (19mm lens)
Weight	Approx. 725g (19mm lens)
