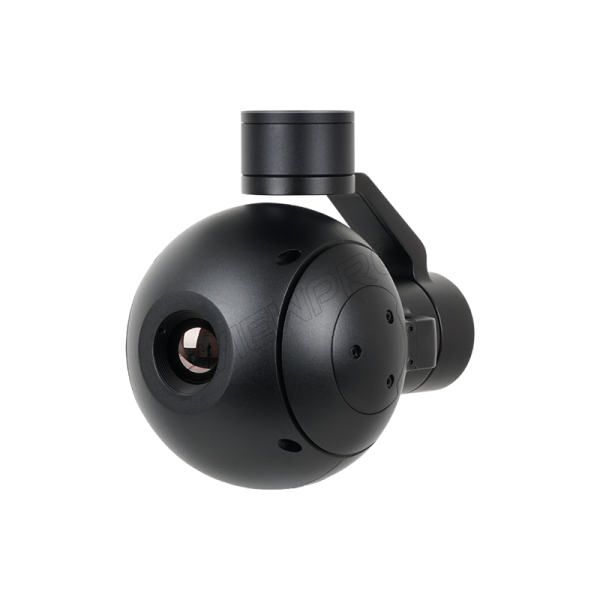

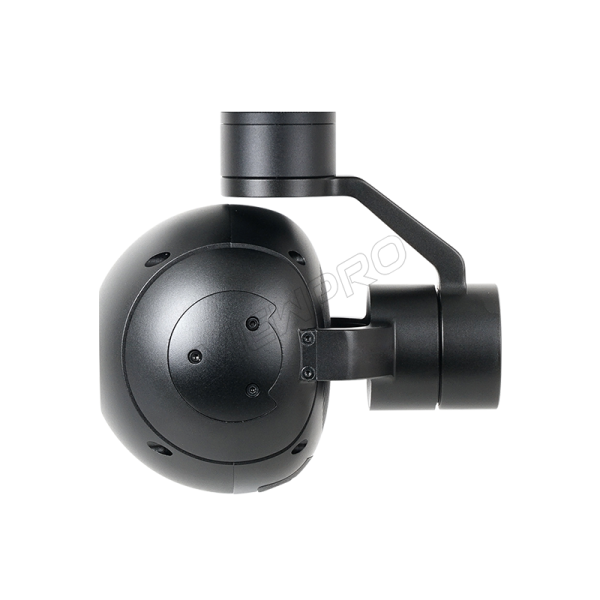

MAT19 Lightweight 19mm 640*512 Thermal Camera with AI Tracking Objects
China Moneypro

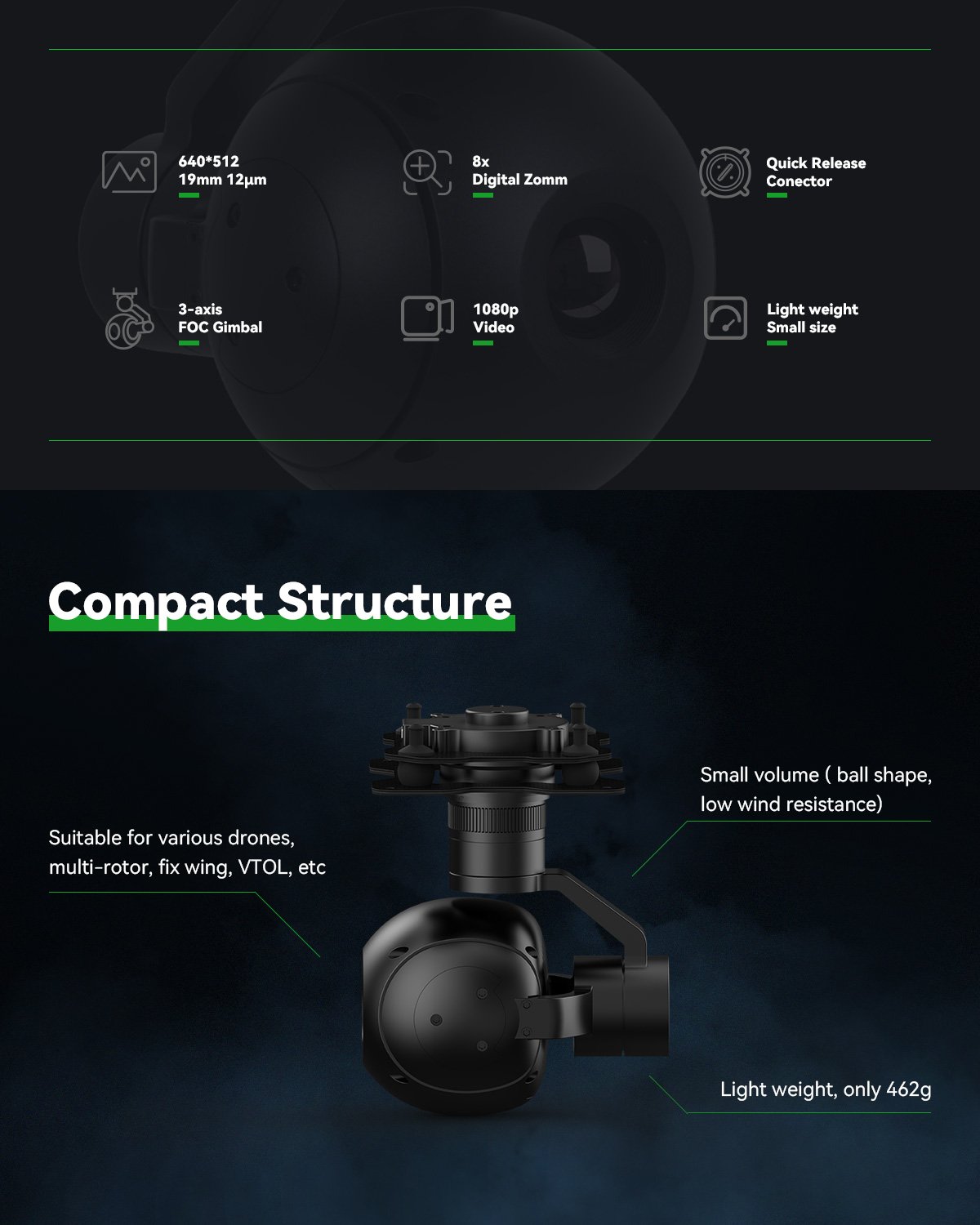

MAT19 is a single-sensor 640*51219mm IR thermal camera with a 3-axis gimbal, features 416g light weight, small volume, and compact structure. Its pixel pitch is12 m and supports 8x digital zoom. AT19 is integrated with an AI object identification and tracking module, which can realize car and human automatic detection and tracking. It is widely used in UAV industries of inspection, surveillance, search and rescue, firefighting, and other industrial applications.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 400~1000mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | HTTP read pictures |

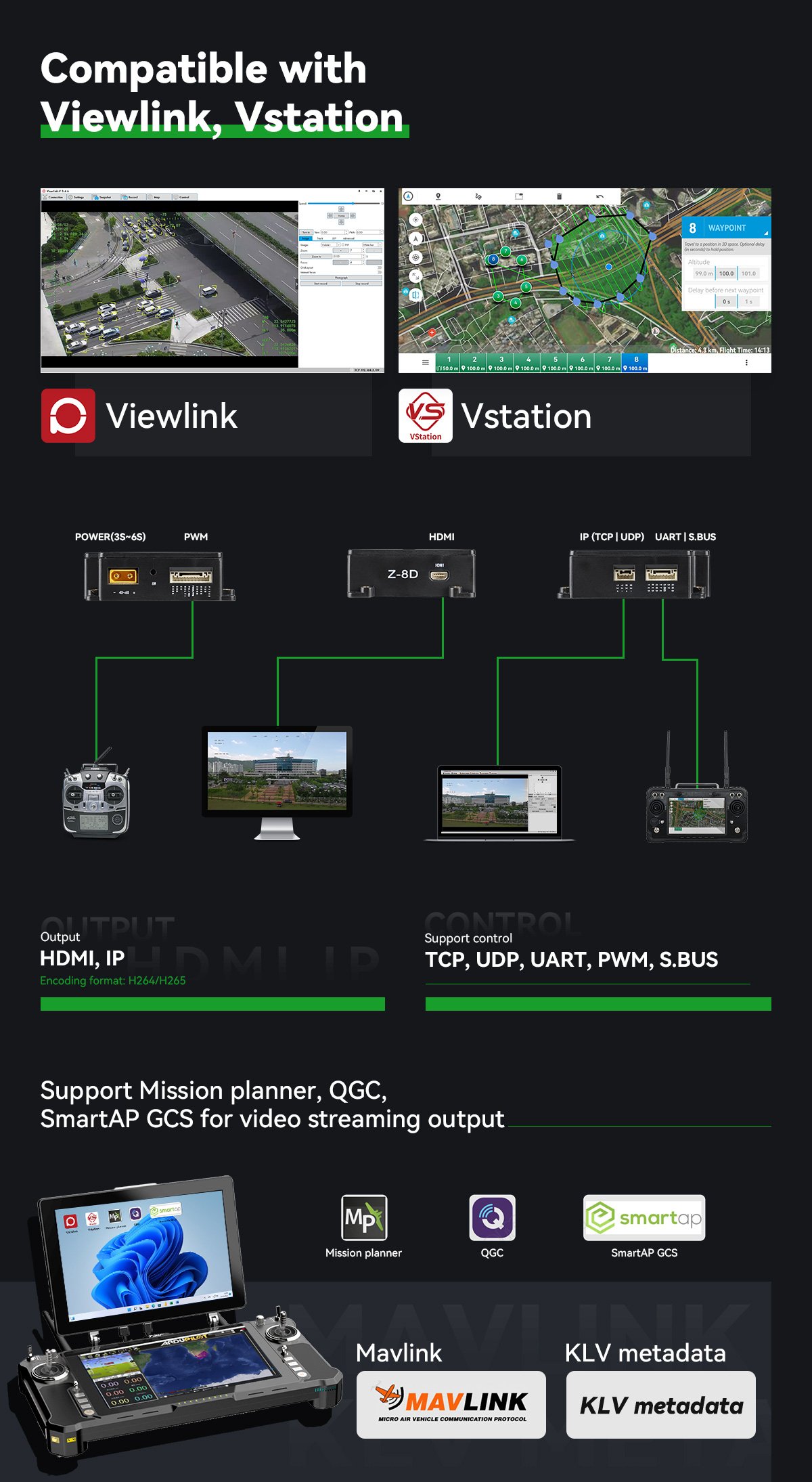

| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |

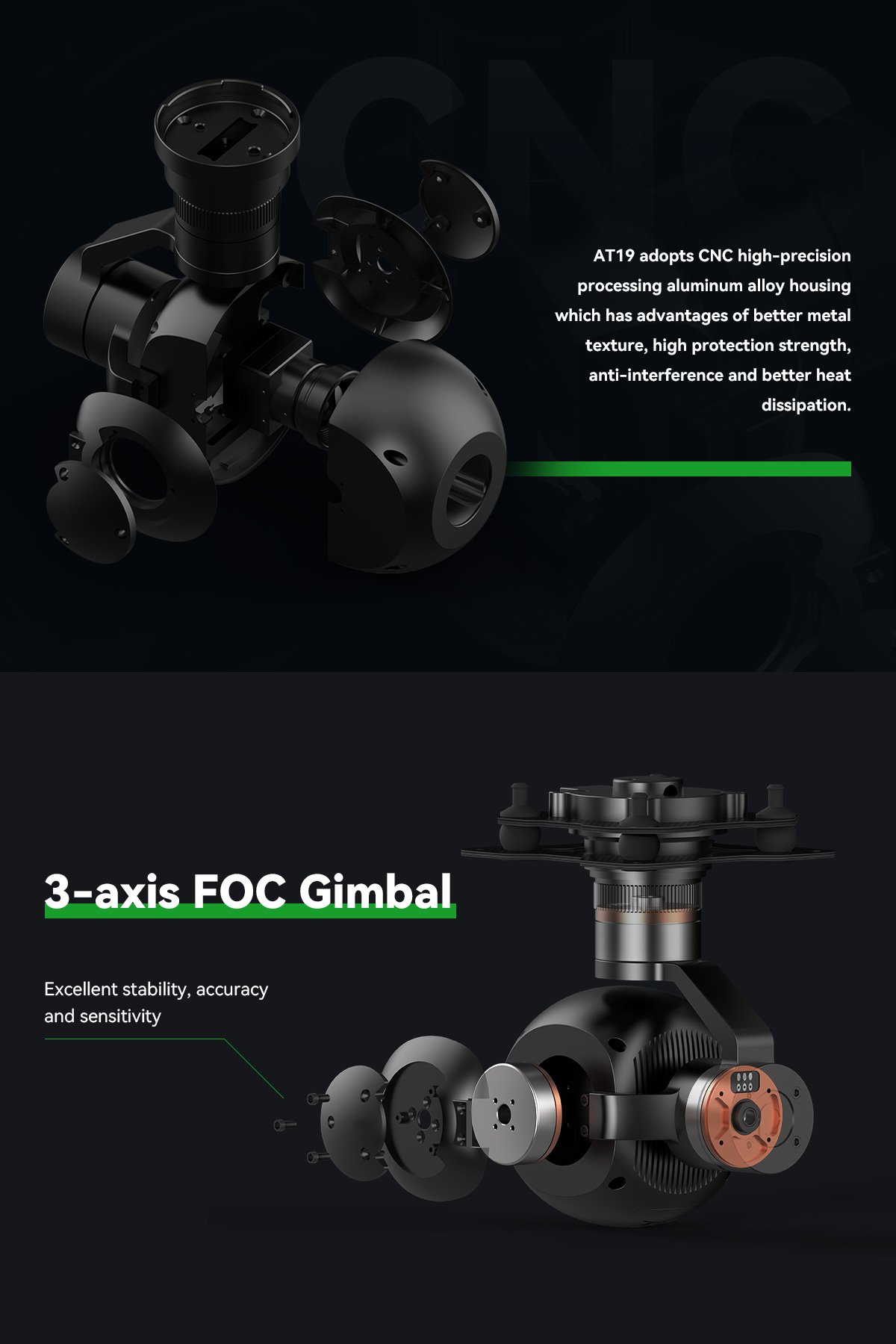

| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -45 103 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -40 100 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Coating Film | DLC |
| Horizontal FOV | 22.9 |
| Vertical FOV | 18.4 |
| Diagonal FOV | 29.0 |
| Detective Distance (Man: 1.8 0.5m) | 792 meters |
| Recognize Distance (Man: 1.8 0.5m) | 198 meters |
| Verified Distance (Man: 1.8 0.5m) | 99 meters |
| Detective Distance (Car: 4.2 1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2 1.8m) | 607 meters |
| Verified Distance (Car: 4.2 1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 50mK@F.0 @25 |
| Color palette | White, iron red, pseudo color |

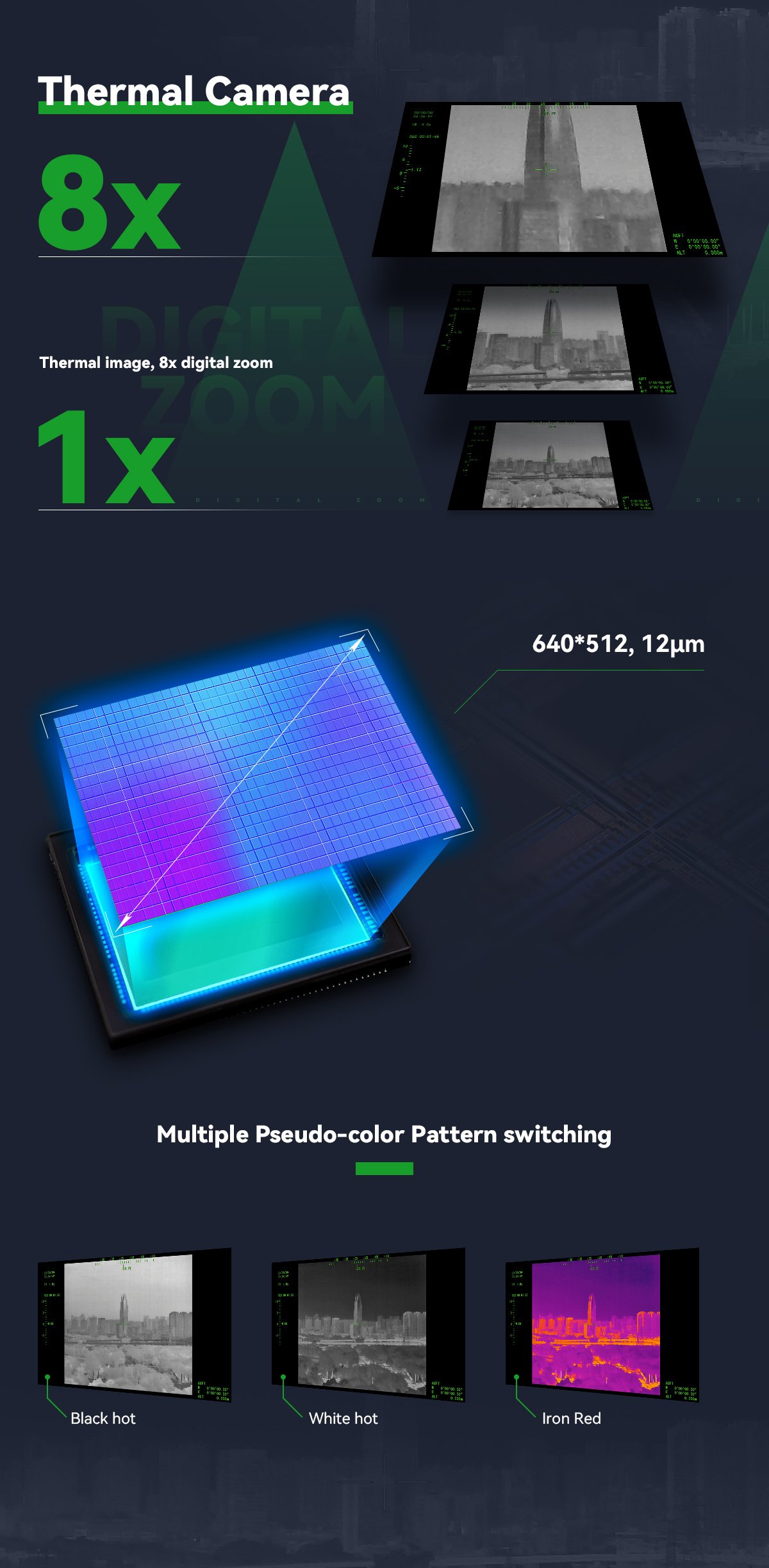

| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |

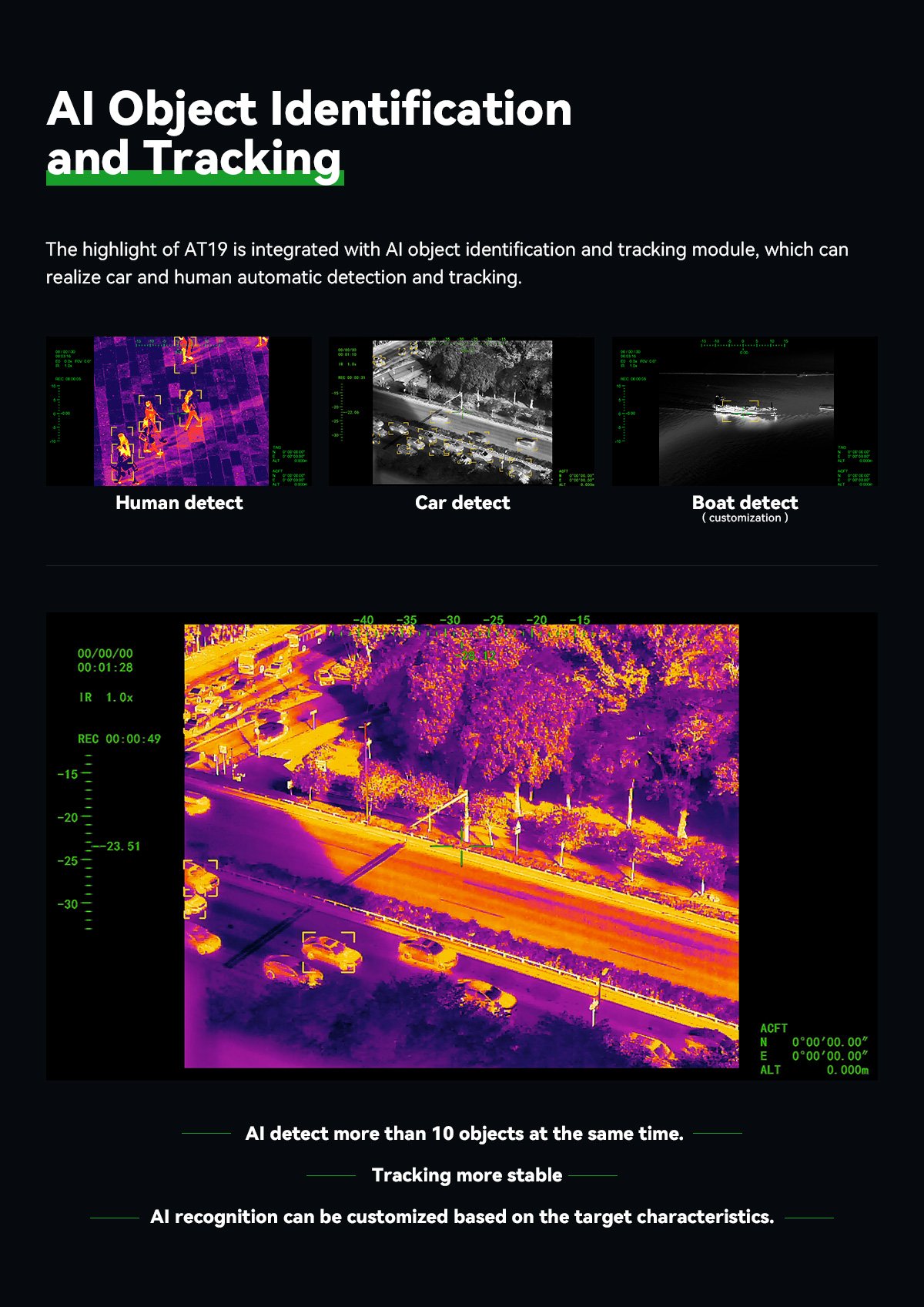

| IR Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Packing Information | |
| N.W. | 612g(Viewport version) |

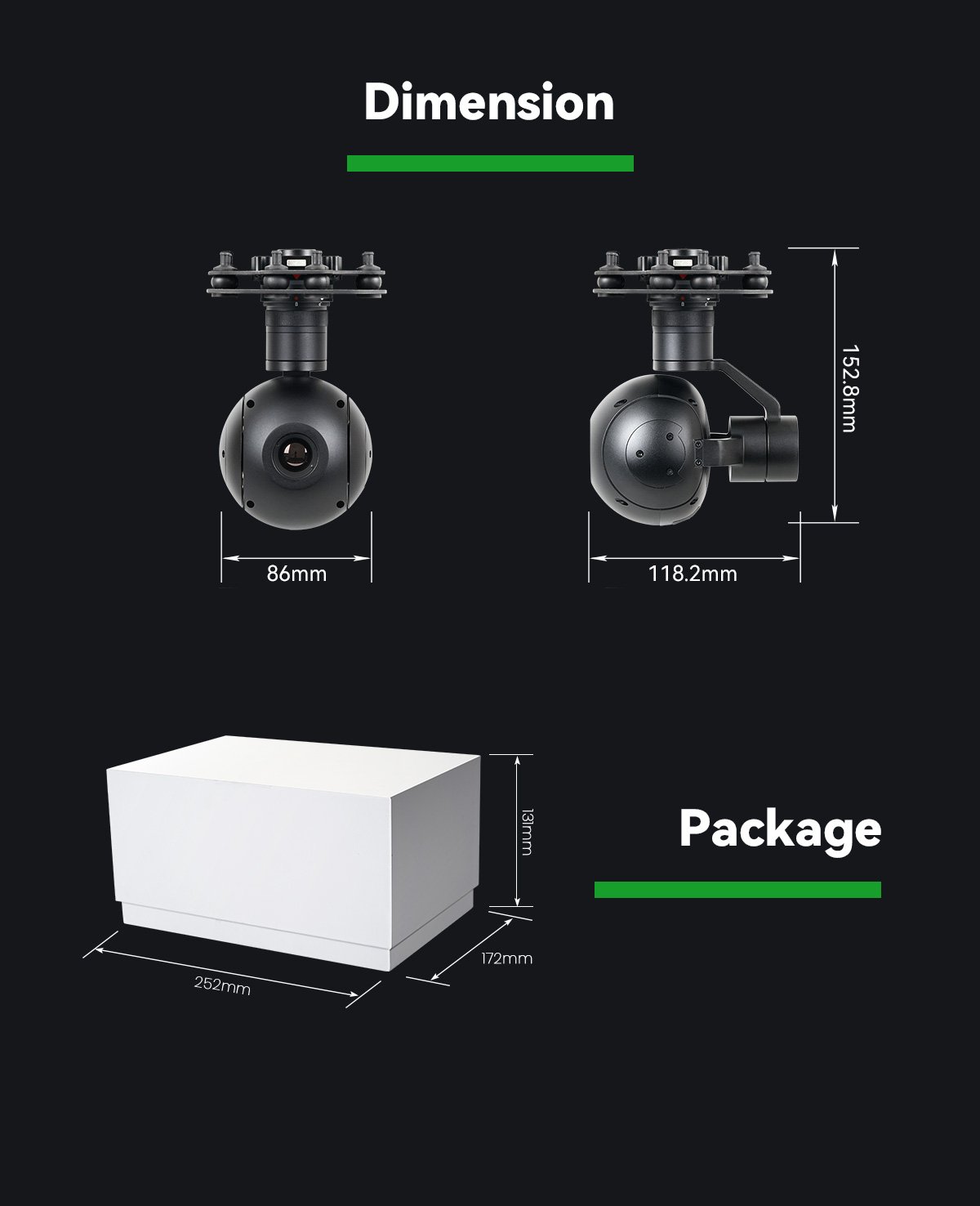

| Product meas. | 118.2*86*147.1mm / 118.2*86*152.8mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | 1770g |
| Package meas. | 300*250*200mm |
