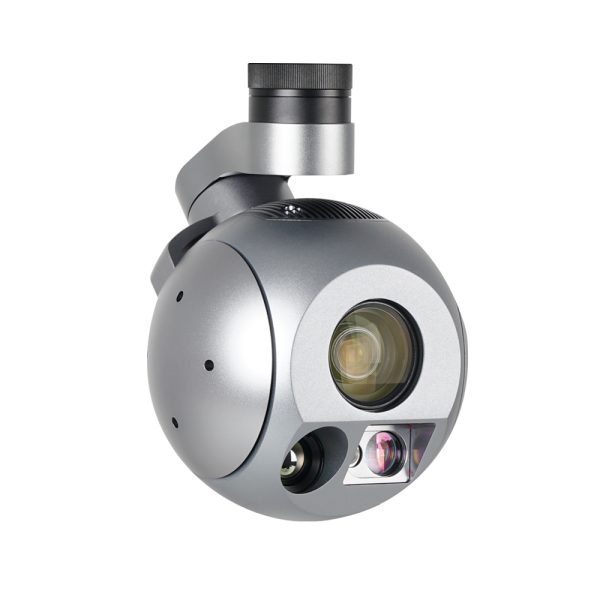

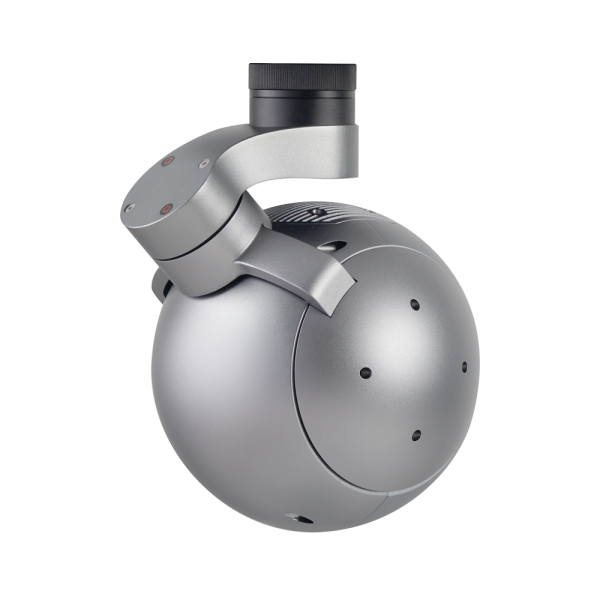

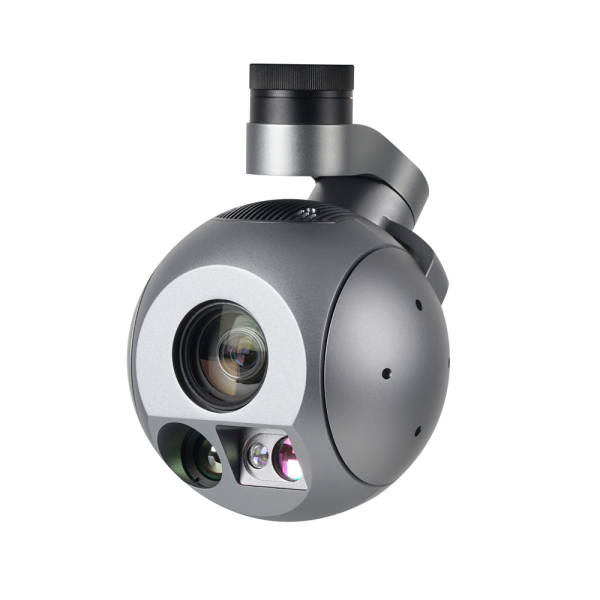

MA40TR Pro 40x EO + IR+ LRF AI Object Tracking Gimbal Camera
China Moneypro
The MA20KT-19 is a 3-axis 4K Ultra-High Definition dual-sensor AI Object Tracking Gimbal Camera. It is equipped with multiple sensors: an 8.51MP imaging sensor with 20x optical zoom, and a 640 512 thermal imaging sensor with a 19mm focal length.
| Hardware Parameters | ||||
| Working voltage | 16V | |||
| Input voltage | 4S ~ 6S | |||
| Output voltage | 5V (connect with PWM) | |||
| Dynamic current | 1200~2500mA @ 16V | |||
| Working environment temp. | -20 C ~ +60 C | |||
| Video Output | micro HDMI (1080P 30/60fps) / IP Rtsp (720P/1080P 30fps) | |||
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) | |||
| Photo storage format | JPG (1920*1080) | |||
| Video storage format | MP4 (1080P 30fps) | |||
| Network reader | HTTP reading | |||

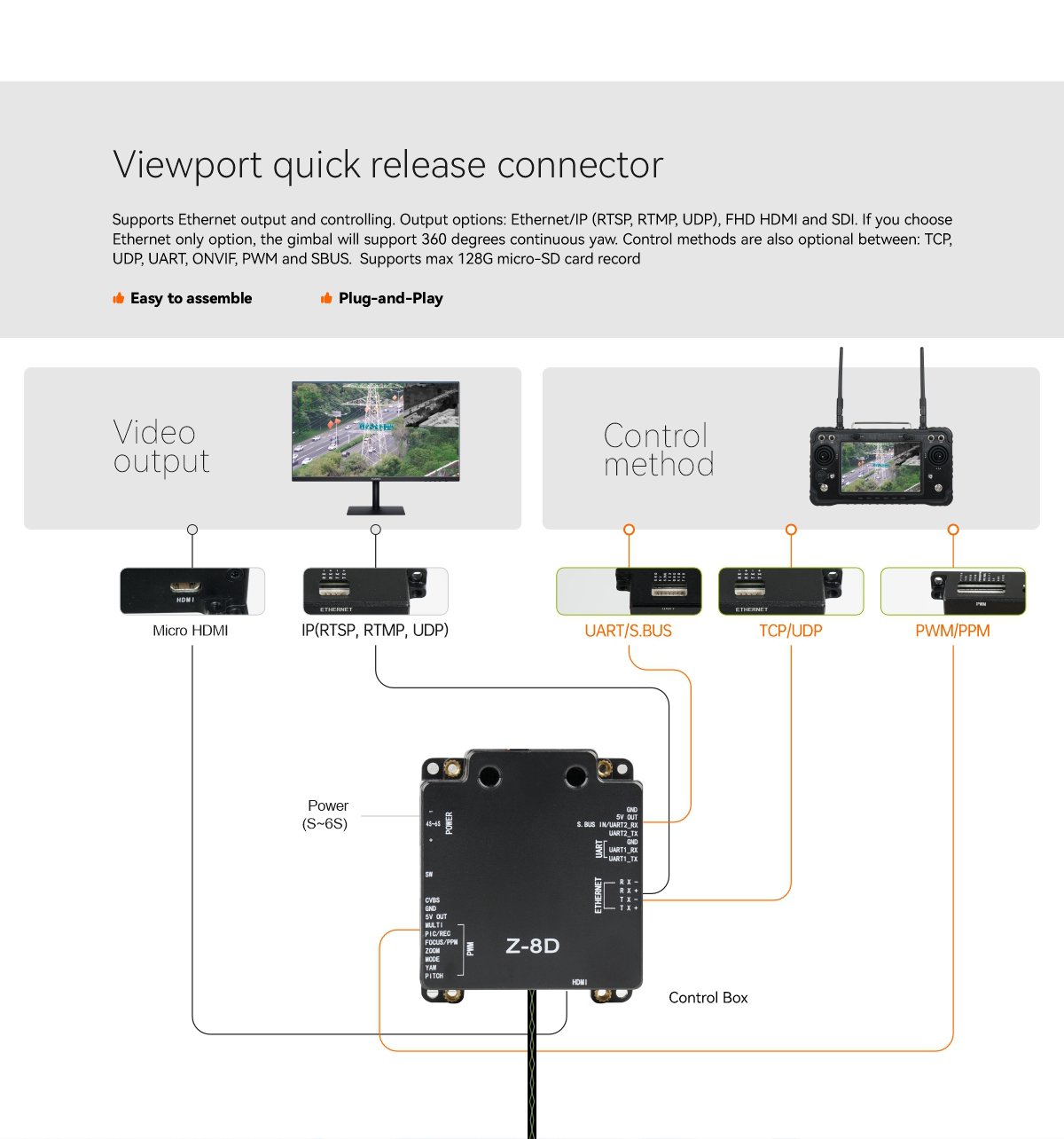

| Control method | PWM / S.BUS / TTL / TCP(IP output version) / UDP(IP output version) | |||
| Gimbal Parameters | ||||
| Mechanical Range | Pitch/Tilt: -60 130 , Roll: 40 , Yaw/Pan: 300 / 360 *N (IP output version) | |||
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 / 360 *N (IP output version) | |||
| Vibration angle | Pitch/Roll/Yaw 0.02 | |||
| One-key to center | ||||
| Camera Parameters | ||||
| Imager Sensor | 1/2.8 Sony CMOS | |||
| Effective pixel | 2.13 MP | |||

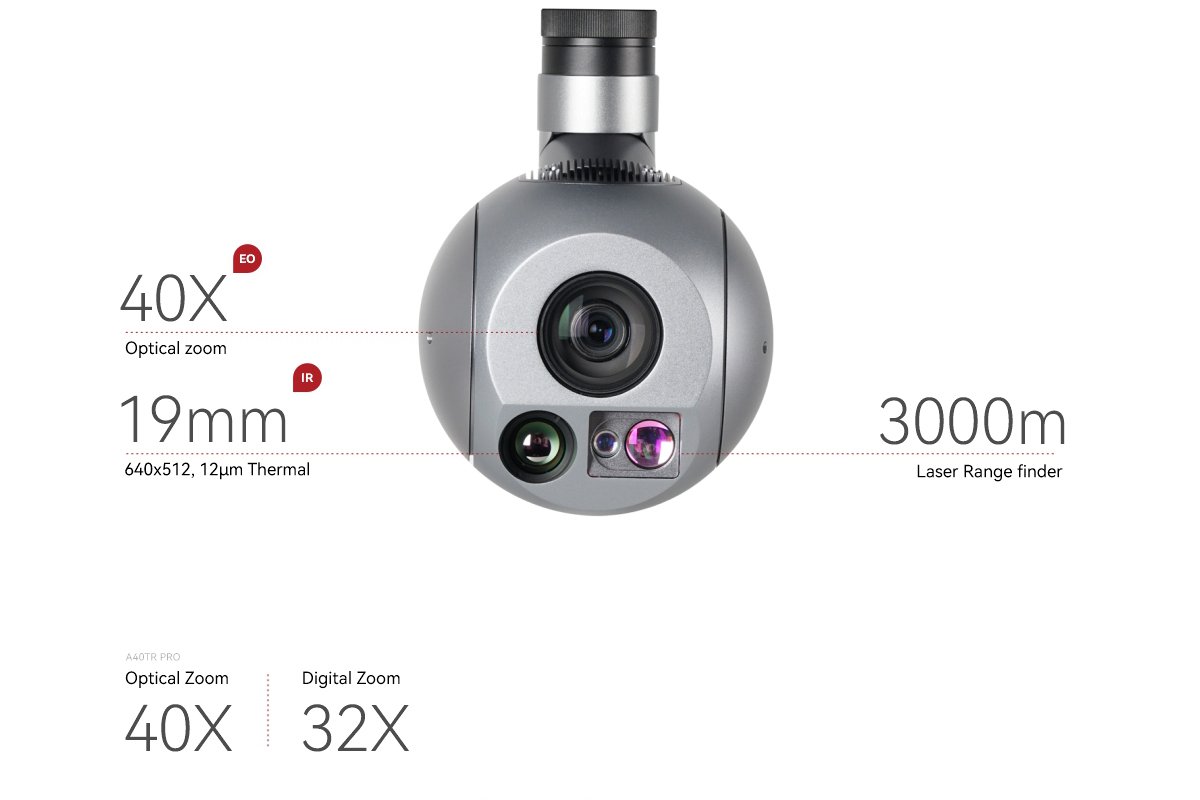

| Lens | Optical zoom: 40x f = 4.25 mm (Wide), 170 mm (Tele) F1.6 to F4.95 | |||
| Digital zoom | 32x | |||
| Angle of view ( H ) | 66.35 (Wide) ~ 1.9 (Tele) | |||
| Min. object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m | |||
| Focus | Auto / One-click auto focus / Manual | |||
| White balance | Auto / Indoor / Outdoor / One-key / Manual | |||
| Shutter speed | 1/1 to 1/30,000 S | |||
| Exposure control | Auto / Manual / Priority mode ( Shutter priority / Aperture priority ) | |||
| Sync system | Internal | |||
| Back light compensation | Yes | |||
| Auto ICR | Yes | |||
| Progressive scan | Yes | |||
| Image stabilizer | Yes | |||
| Defog mode | Yes | |||
| IR Thermal Imager Parameters | ||||
| Focus Length | 19mm | |||
| Coating Film | DLC | |||
| Horizontal FOV | 22.9 | |||
| Vertical FOV | 18.4 | |||
| Diagonal FOV | 29.0 | |||

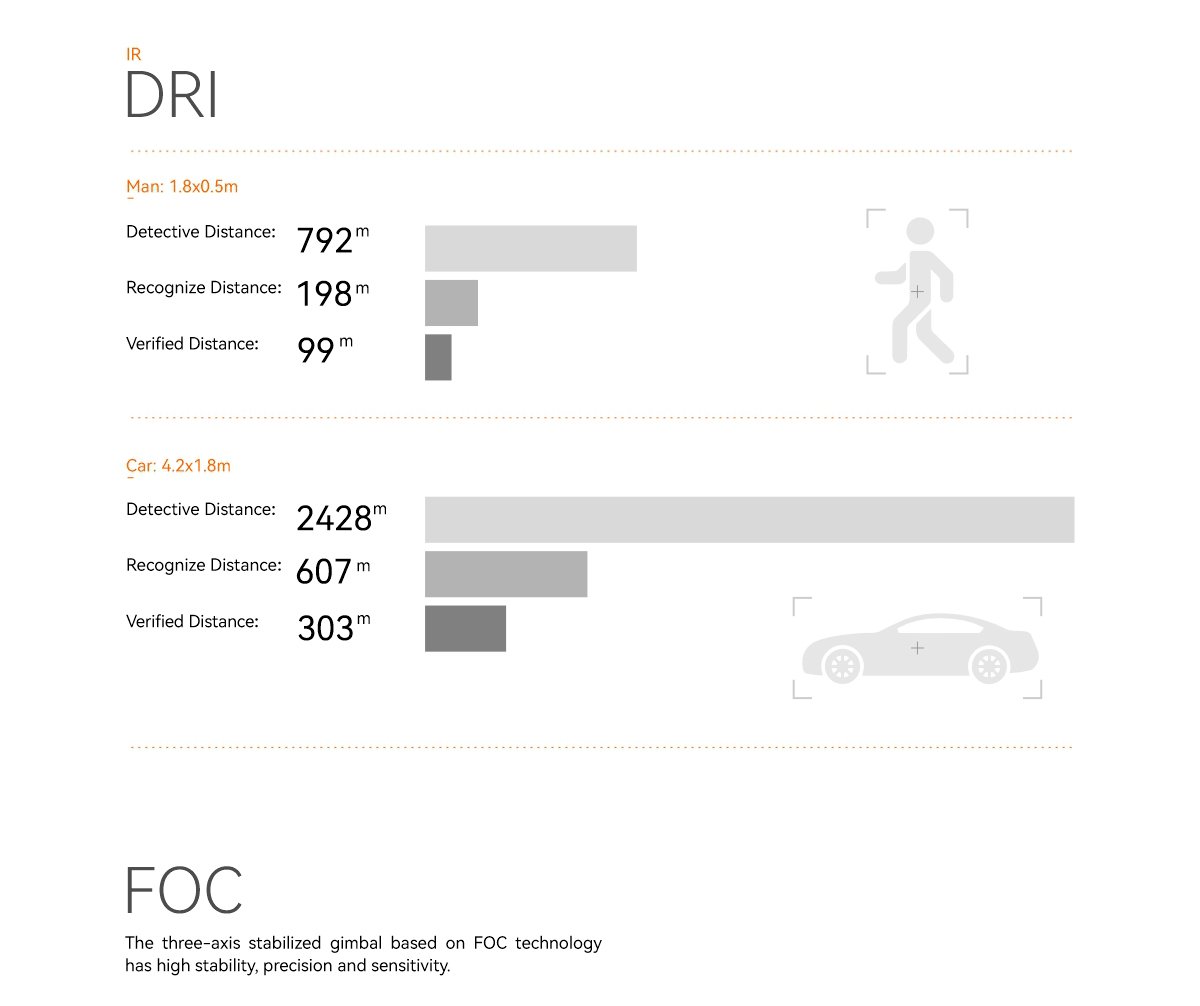

| Detective Distance (Man: 1.8 0.5m) | 792 meters | |||
| Recognize Distance (Man: 1.8 0.5m) | 198 meters | |||
| Verified Distance (Man: 1.8 0.5m) | 99 meters | |||
| Detective Distance (Car: 4.2 1.8m) | 2428 meters | |||
| Recognize Distance (Car: 4.2 1.8m) | 607 meters | |||
| Verified Distance (Car: 4.2 1.8m) | 303 meters | |||
| Working mode | Uncooled long wave (8 m~14 m) thermal imager | |||
| Detector pixel | 640*512 | |||
| Pixel size | 12 m | |||
| Focusing method | Athermal prime lens | |||
| NETD | 50mK @F.0 @25 | |||

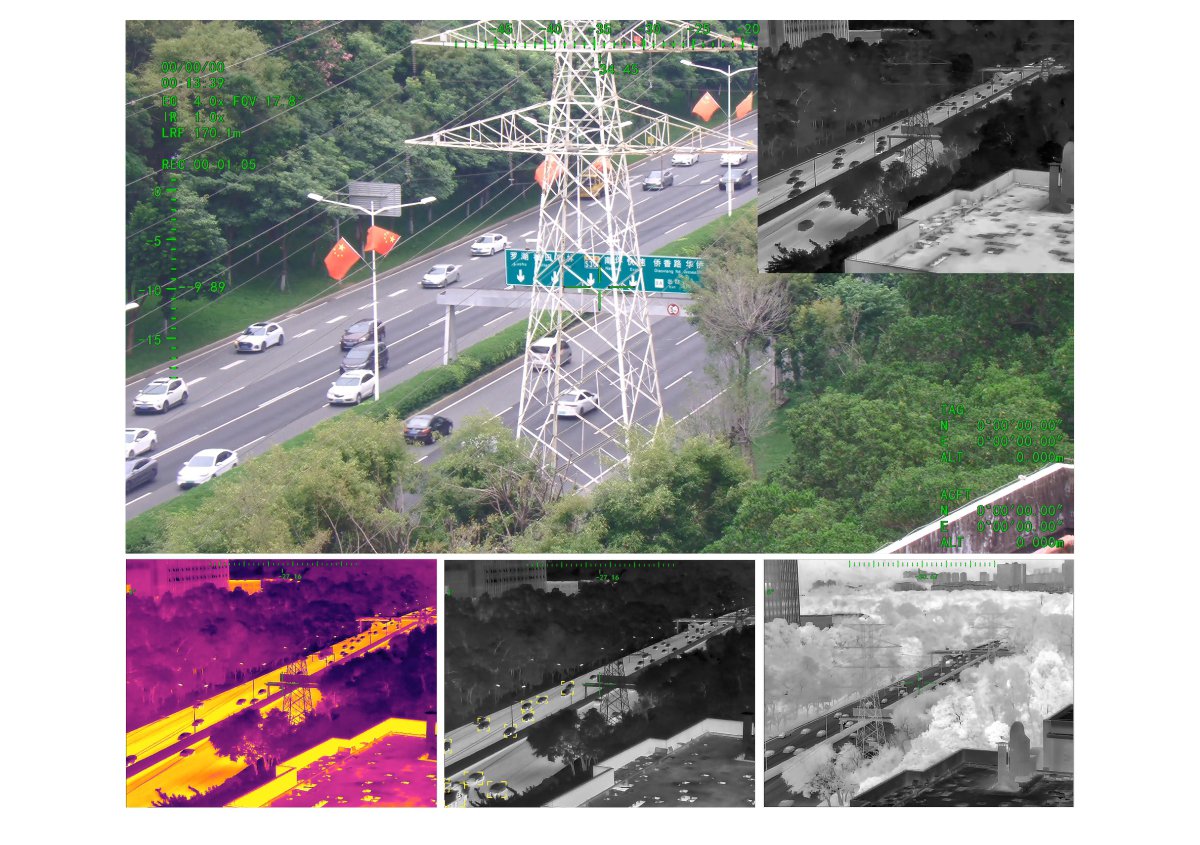

| Color palette | White hot, black hot, pseudo color | |||
| Digital zoom | 1x ~ 8x | |||
| Sync correct time | Yes | |||

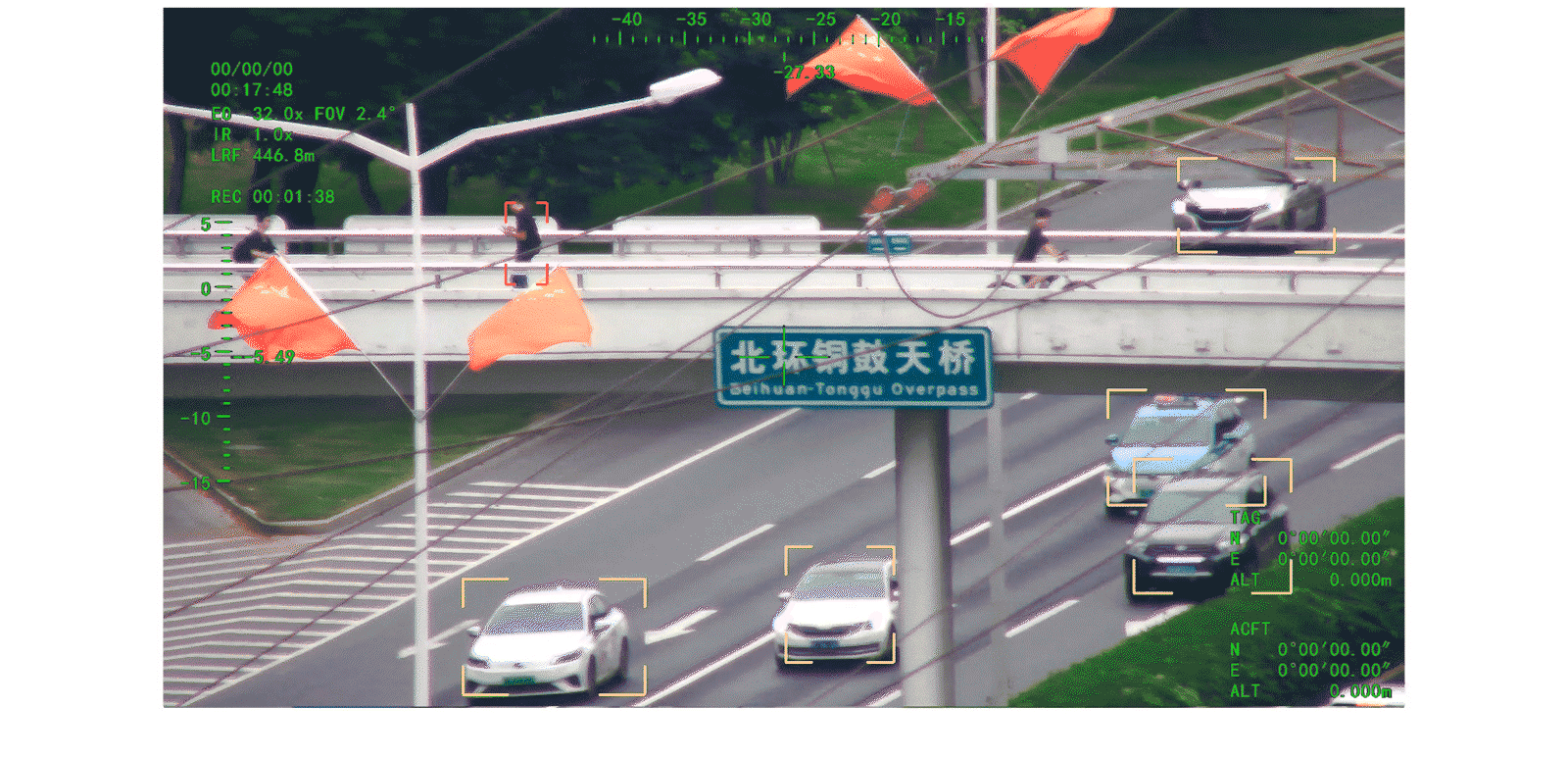

| EO / IR Camera Object Tracking Parameters | ||||
| Update rate of deviation pixel | 30Hz | |||
| Output delay of deviation pixel | <30ms | |||
| Minimum object contrast | 5% | |||
| SNR | 4 | |||
| Minimum object size | 16*16 pixel | |||
| Maximum object size | 256*256 pixel | |||
| Tracking speed | 48 pixel/frame | |||
| Object memory time | 100 frames | |||
| AI Tracking Linkage | Yes | |||

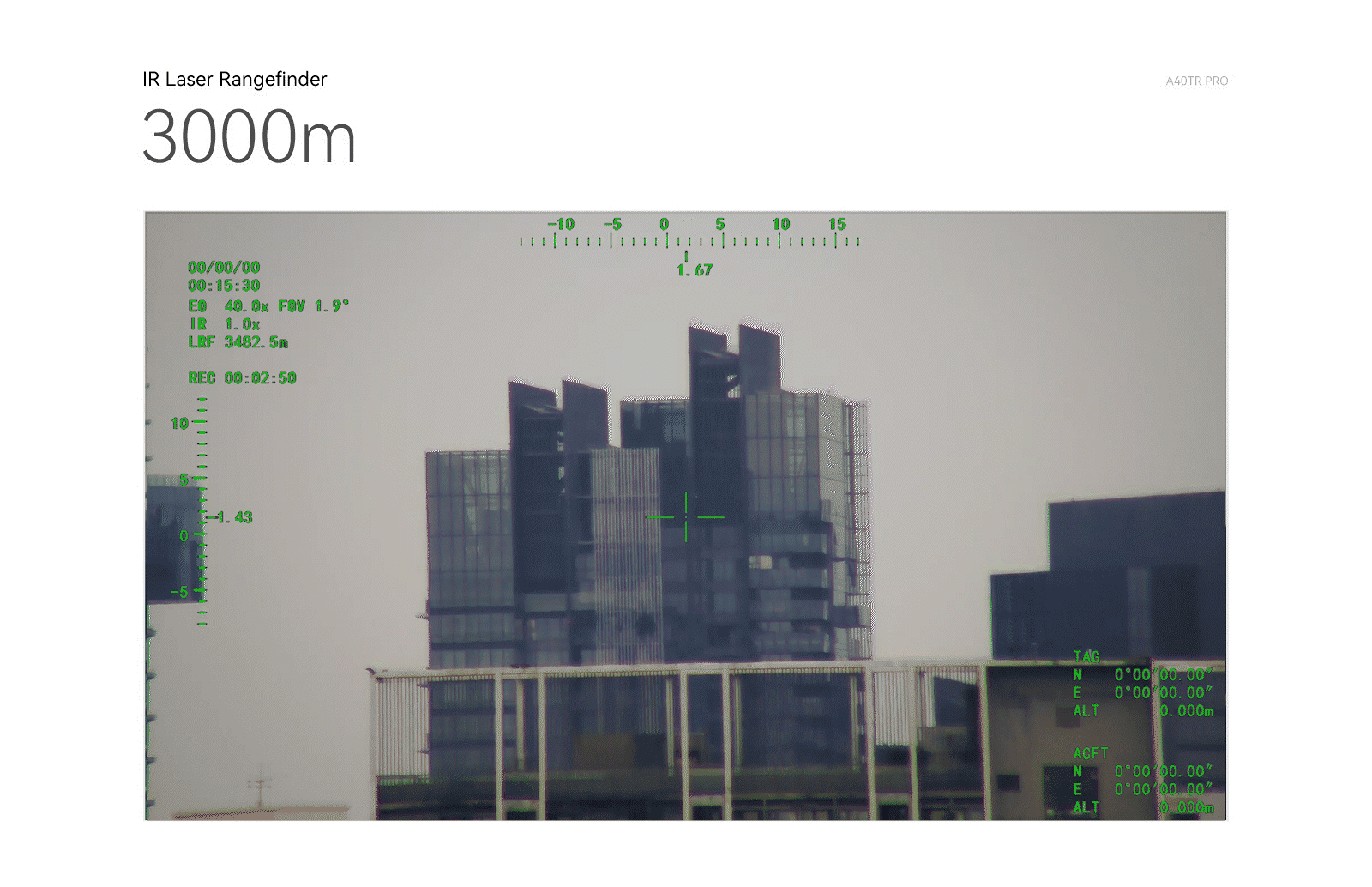

| Laser Rangefinder Parameters | ||||
| Effective range | For Vehicle 3000m For human 2000m | |||
| Minimum range of measurement | 15m | |||
| Range accuracy | 1m | |||
| Range frequency | 1~10Hz | |||
| Wave length | 1535 5nm | |||
| Divergence angle | ~0.6mrad | |||

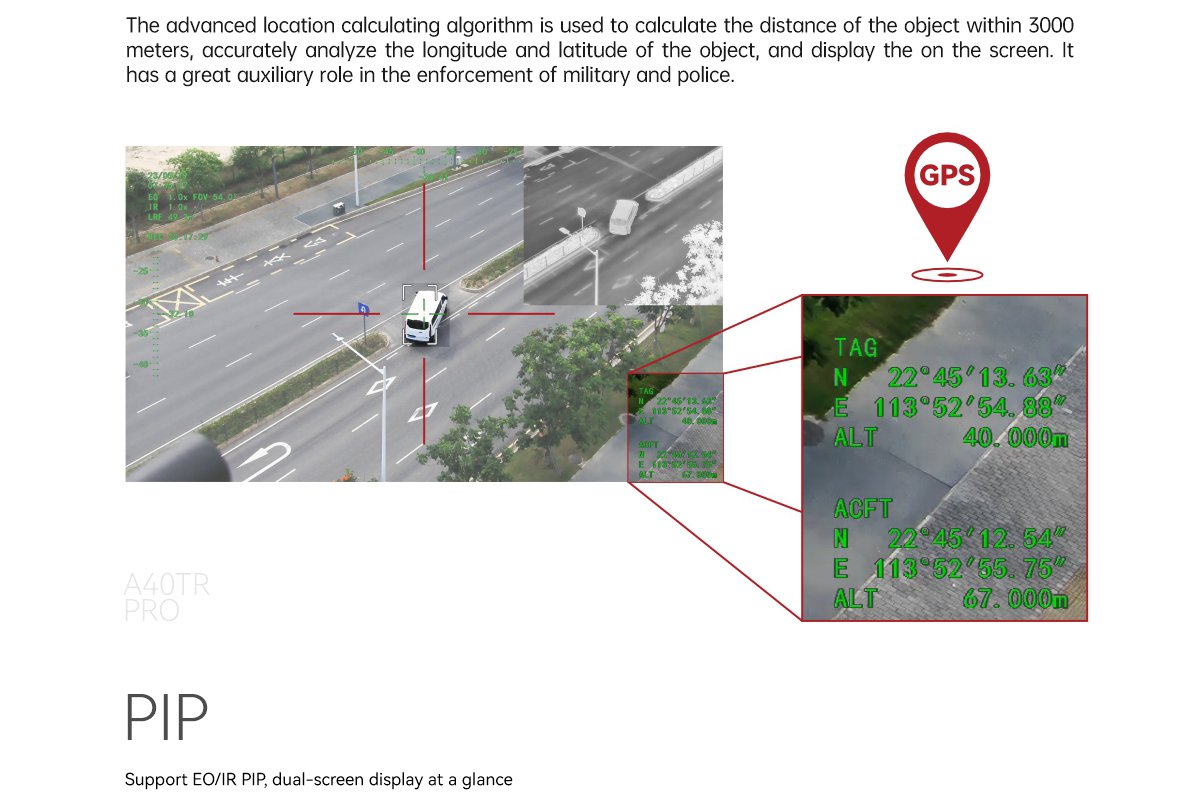

| Coordinate resolve | Logitude and latitude of target | |||
| Measurement | Measure distance from center of object to laser rangefinder sensor | |||

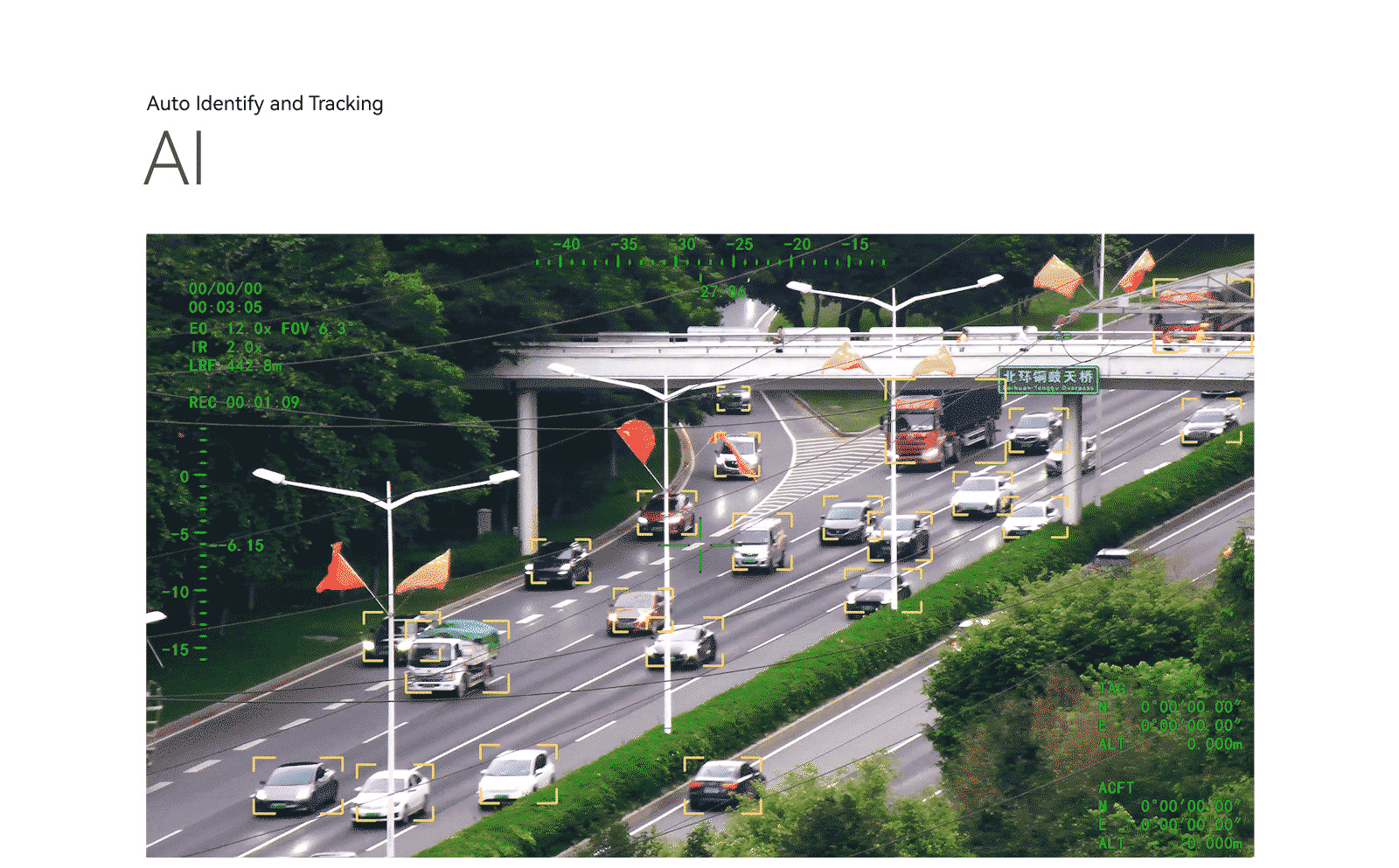

| Camera AI Recogn | ition Performance Parameters | |||
| Target type | Vehicle, Human | |||
| Simultaneous detection quantity | 10 targets | |||
| Contrast ratio | 5% | |||
| Minimum size of target | 5 X 5 pixel | |||
| Vehicle detection ratio | 85% | |||
| False alarm ratio | 10% | |||
| Packing Information | ||||
| N.W. | 1136g (Viewport Version) | |||
| Product meas. | 134.2*125*210.4mm Viewport Version | |||
