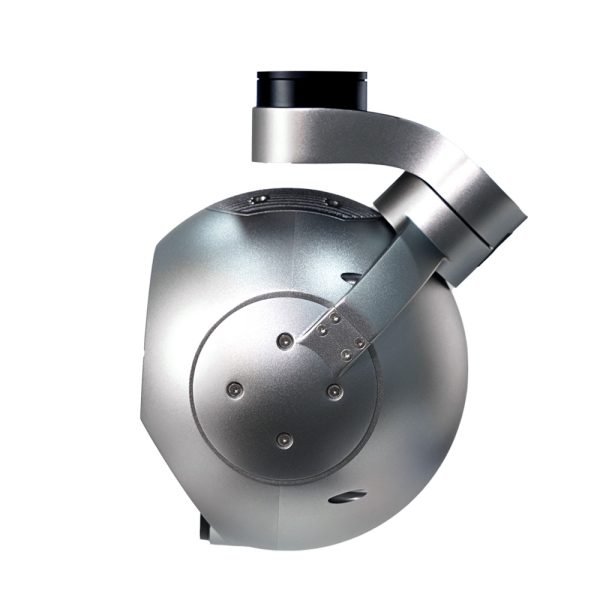

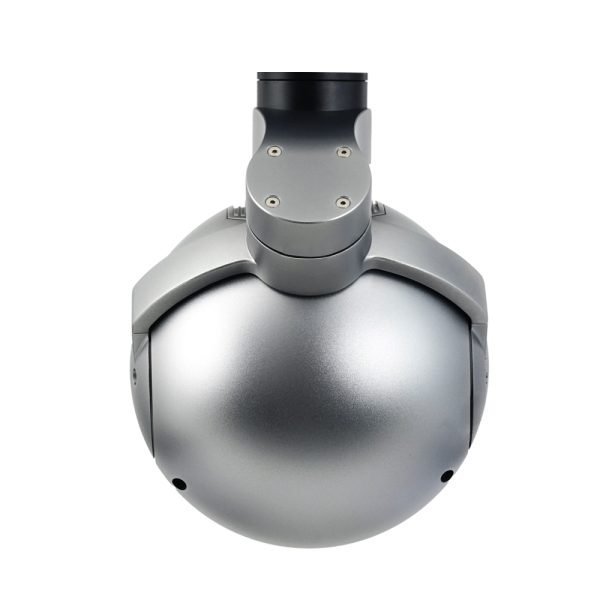

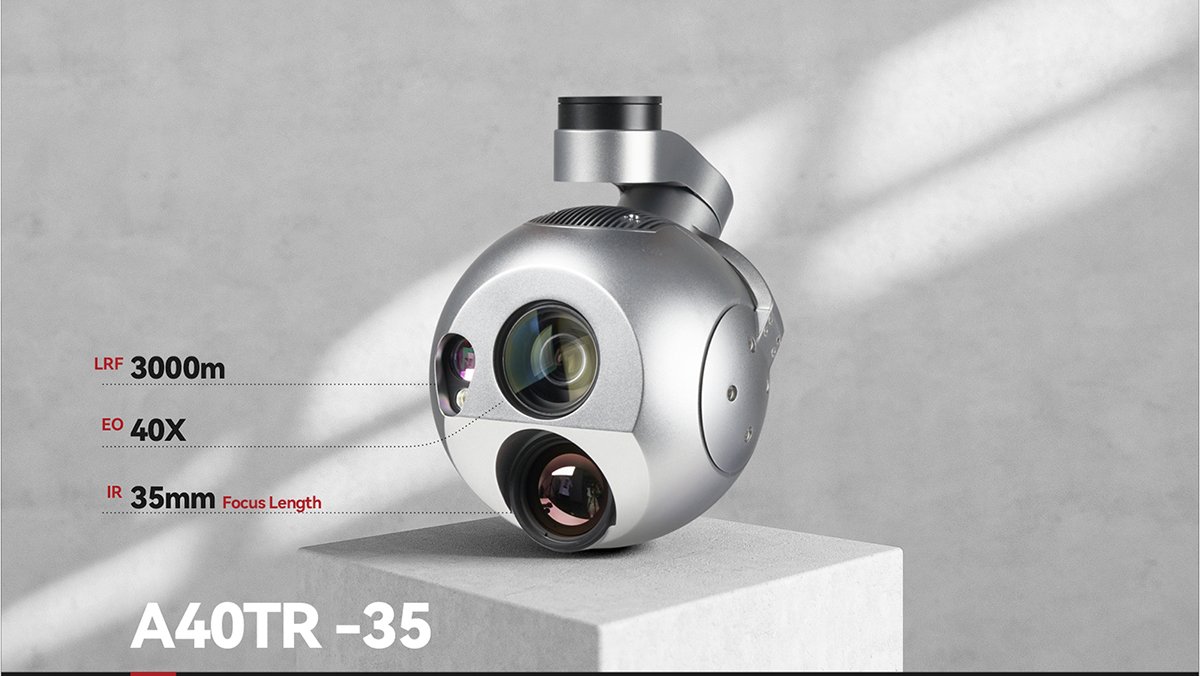

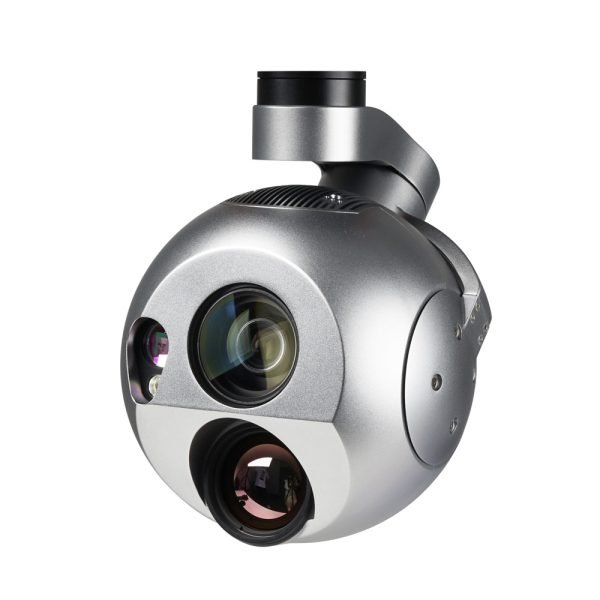

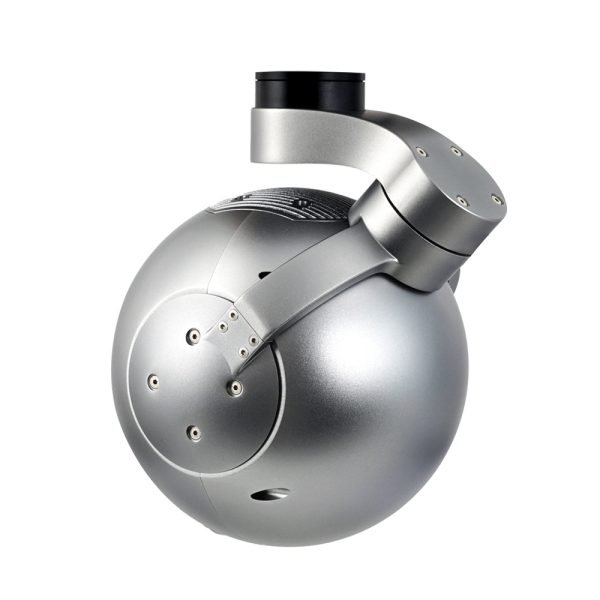

MA40TR-35 40X Al autonomous-ldentificationand automatic Tracking Camera

China Moneypro

The MA40TR-35 is a cutting-edge 40X autonomous identification and automatic tracking camera system designed for professional surveillance and reconnaissance applications. Featuring advanced AI-powered object detection and real-time tracking capabilities, this integrated system combines a high-resolution optical camera with thermal imaging and laser rangefinding technology. The 40X optical zoom lens delivers exceptional clarity from extreme distances, while the uncooled thermal imager provides reliable detection in all lighting conditions. With autonomous target identification for vehicles and humans, intelligent tracking linkage, and precise laser ranging up to 3000 meters, this system offers unmatched situational awareness. The robust gimbal provides smooth pan, tilt, and roll control with minimal vibration. Multiple output options including HDMI and IP streaming enable flexible integration. Built for demanding environments with operating temperatures from -20 to +60 degrees Celsius, the MA40TR-35 delivers professional-grade performance for security, surveillance, and tactical operations.

Share your love
Hardware Parameters
Working voltage16V
Input voltage4S ~ 6S
Output voltage5V (connect with PWM)
Dynamic current1200~2500mA @ 16V
Working environment temp.-20 C ~ +60 C

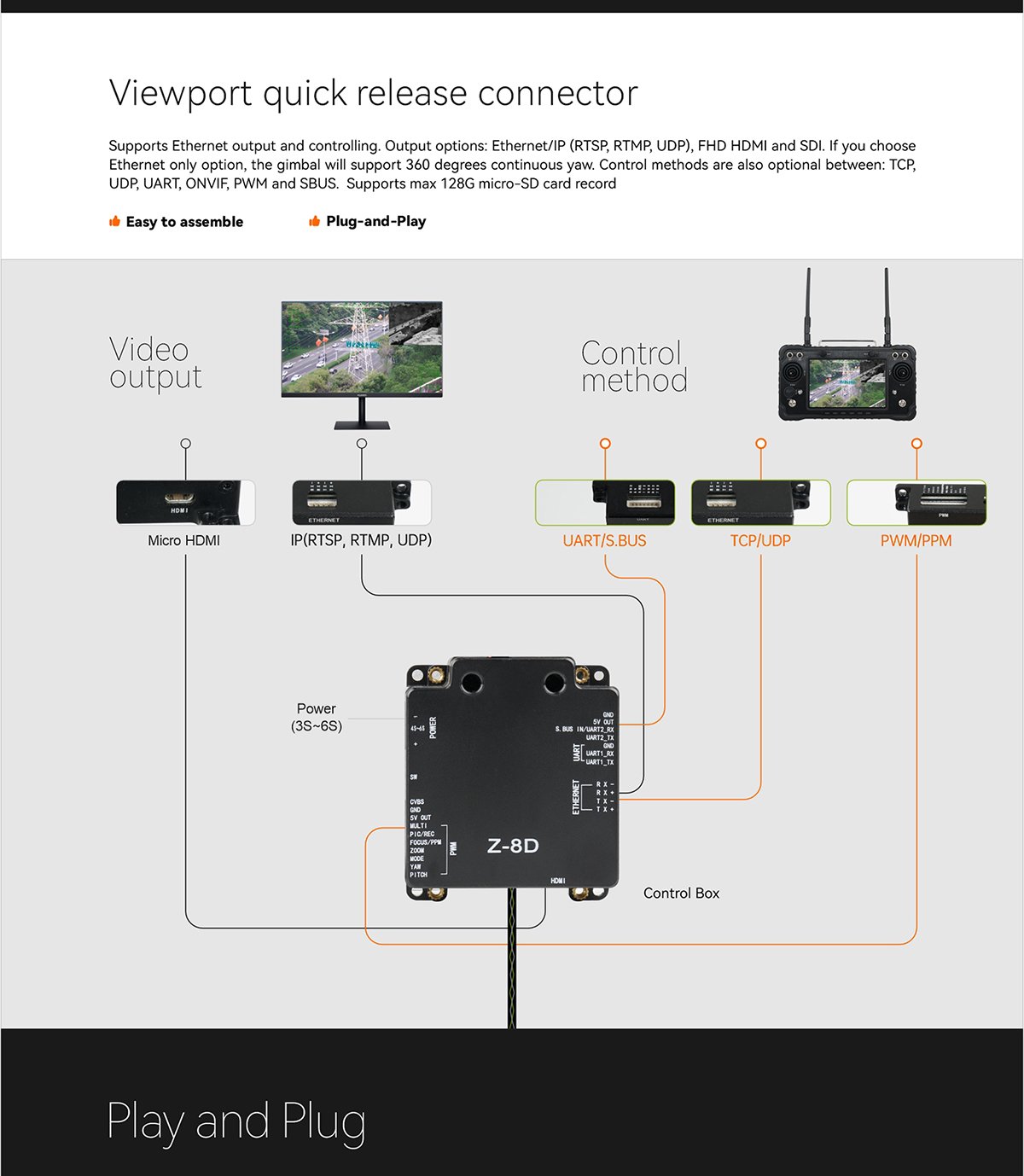

Video Outputmicro HDMI (1080P 30/60fps) / IP Rtsp (720P/1080P 30fps)
Local-storageSD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage formatJPG (1920*1080)
Video storage formatMP4 (1080P 30fps)
Network readerHTTP reading
Control methodPWM  / S.BUS / TTL / TCP(IP output version) / UDP(IP output version)
Gimbal Parameters
Mechanical RangePitch/Tilt: -60 130 ,    Roll: 40 ,
Yaw/Pan: 300 / 360 *N (IP output version)
Controllable RangePitch/Tilt: -45 90 ,
Yaw/Pan: 290 / 360 *N (IP output version)
Vibration anglePitch/Roll/Yaw 0.02
One-key to center

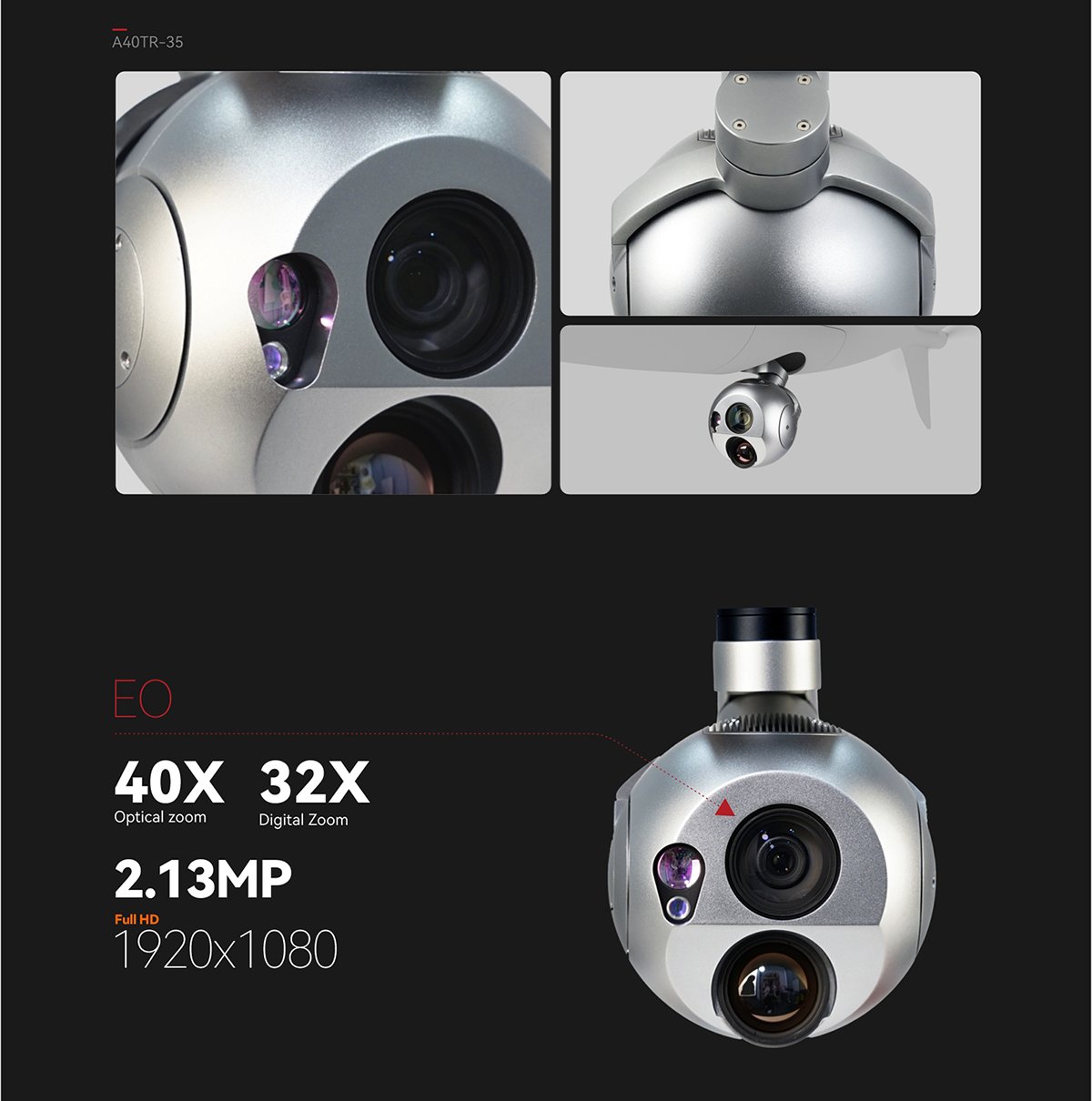

Camera Parameters
Imager Sensor1/2.8 Sony CMOS
Effective pixel2.13 MP
LensOptical zoom: 40x
f = 4.25 mm (Wide), 170 mm (Tele) F1.6 to F4.95
Digital zoom32x
Angle of view ( H )66.35 (Wide)  ~ 1.9 (Tele)
Min. object distance0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
FocusAuto / One-click auto focus / Manual
White balanceAuto / Indoor / Outdoor / One-key / Manual
Shutter speed1/1 to 1/30,000 S
Exposure controlAuto / Manual / Priority mode ( Shutter priority / Aperture priority )
Sync systemInternal
Back light compensationYes
Auto ICRYes
Progressive scanYes
Image stabilizerYes
Defog modeYes

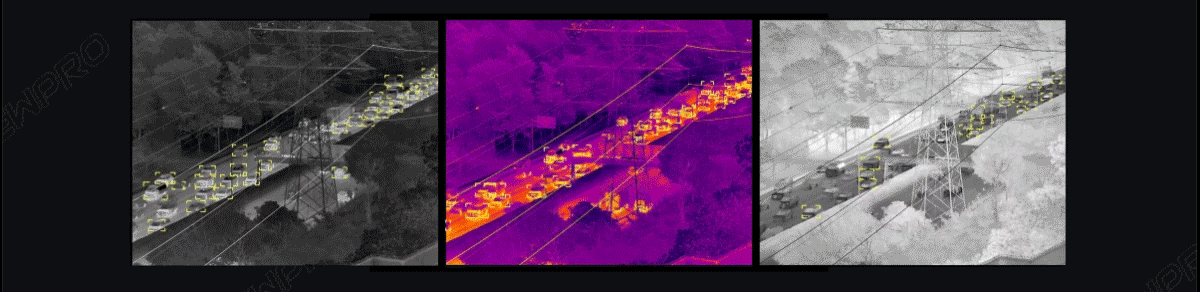

IR Thermal Imager Parameters
Focus Length19mm
Coating FilmDLC
Horizontal FOV22.9
Vertical FOV18.4
Diagonal FOV29.0
Detective Distance (Man: 1.8 0.5m)792 meters
Recognize Distance (Man: 1.8 0.5m)198 meters
Verified Distance (Man: 1.8 0.5m)99 meters
Detective Distance (Car: 4.2 1.8m)2428 meters
Recognize Distance (Car: 4.2 1.8m)607 meters
Verified Distance (Car: 4.2 1.8m)303 meters
Working modeUncooled long wave (8 m~14 m) thermal imager
Detector pixel640*512
Pixel size12 m
Focusing methodAthermal prime lens
NETD 50mK @F.0 @25
Color paletteWhite hot, black hot, pseudo color
Digital zoom1x ~ 8x
Sync correct timeYes

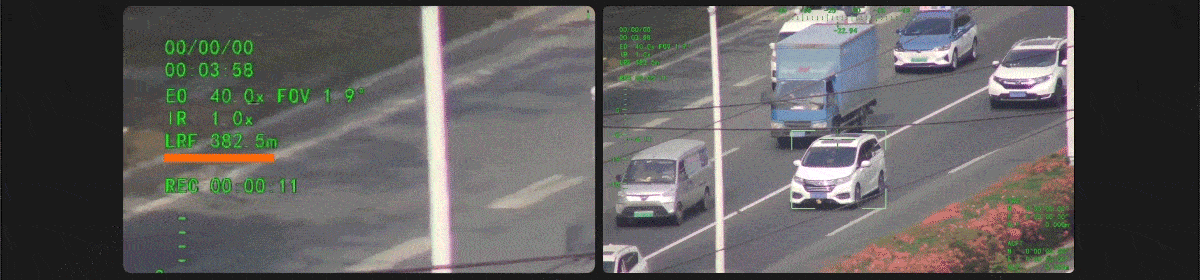

EO / IR Camera Object Tracking Parameters
Update rate of deviation pixel30Hz
Output delay of deviation pixel<30ms
Minimum object contrast5%
SNR4
Minimum object size16*16 pixel
Maximum object size256*256 pixel
Tracking speed48 pixel/frame
Object memory time100 frames
AI Tracking LinkageYes

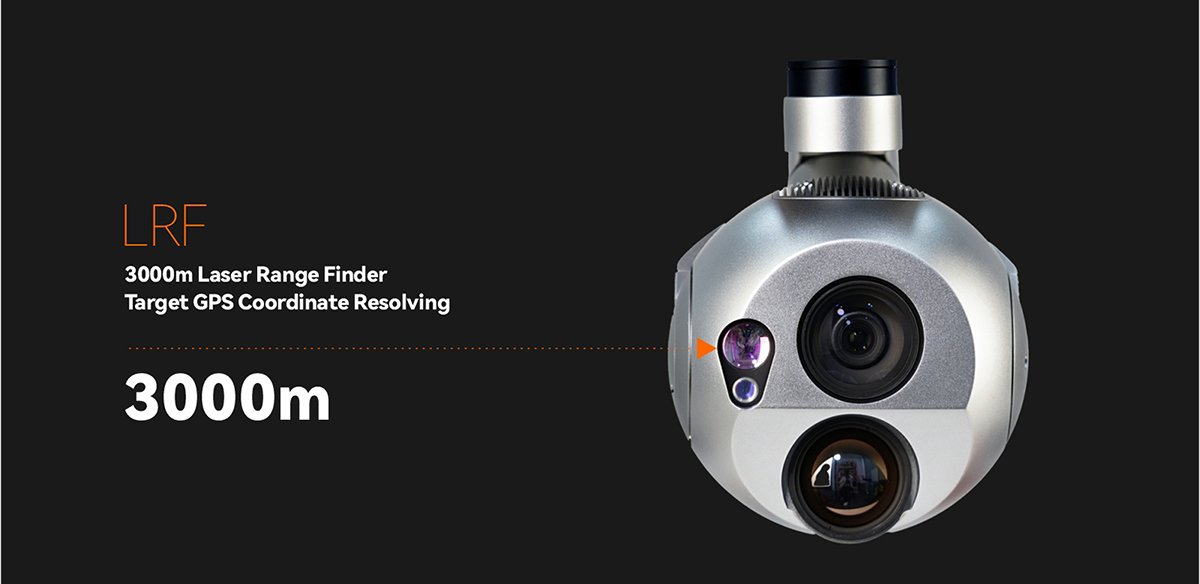

Laser Rangefinder Parameters
Effective rangeFor Vehicle 3000m  For human 2000m
Minimum range of measurement15m
Range accuracy 1m
Range frequency1~10Hz
Wave length1535 5nm
Divergence angle~0.6mrad

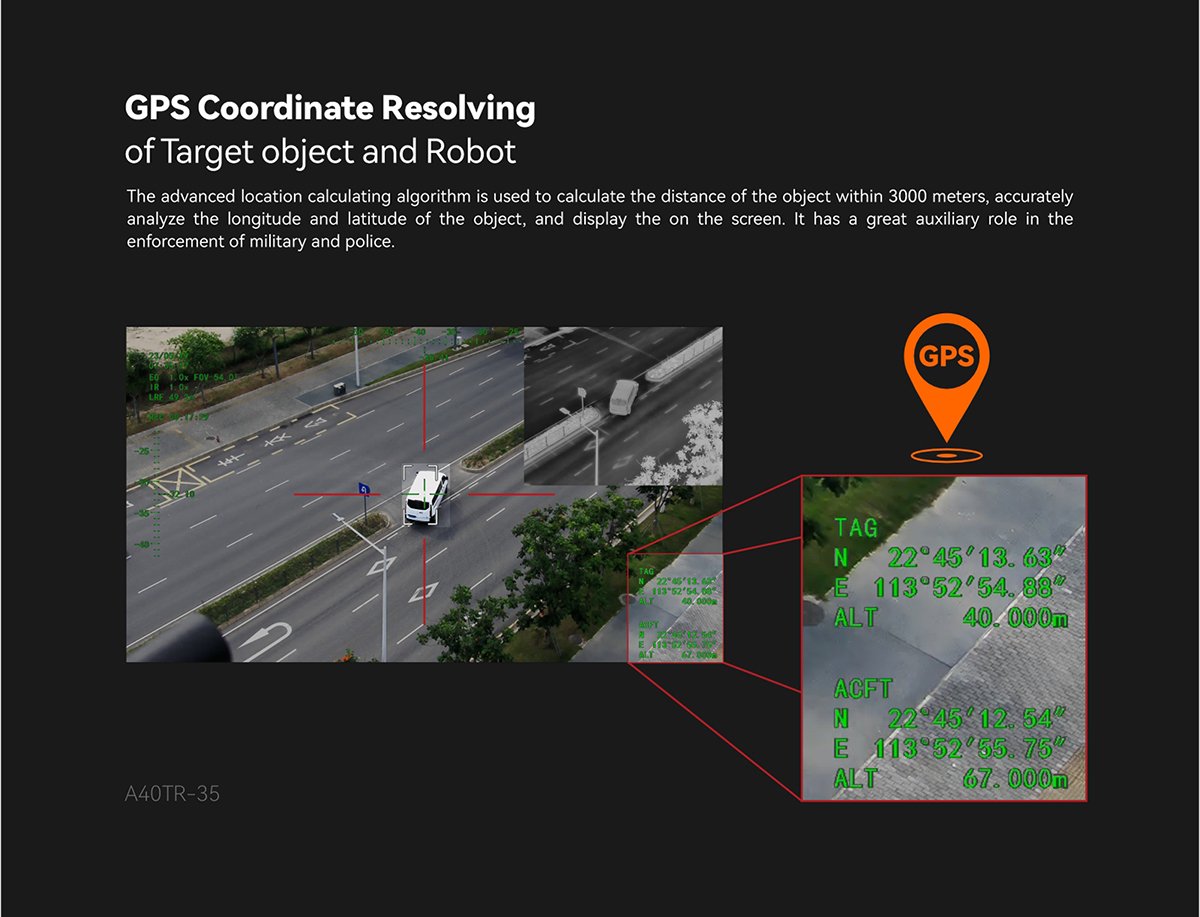

Coordinate resolveLogitude and latitude of target
MeasurementMeasure distance from center of object to laser rangefinder sensor

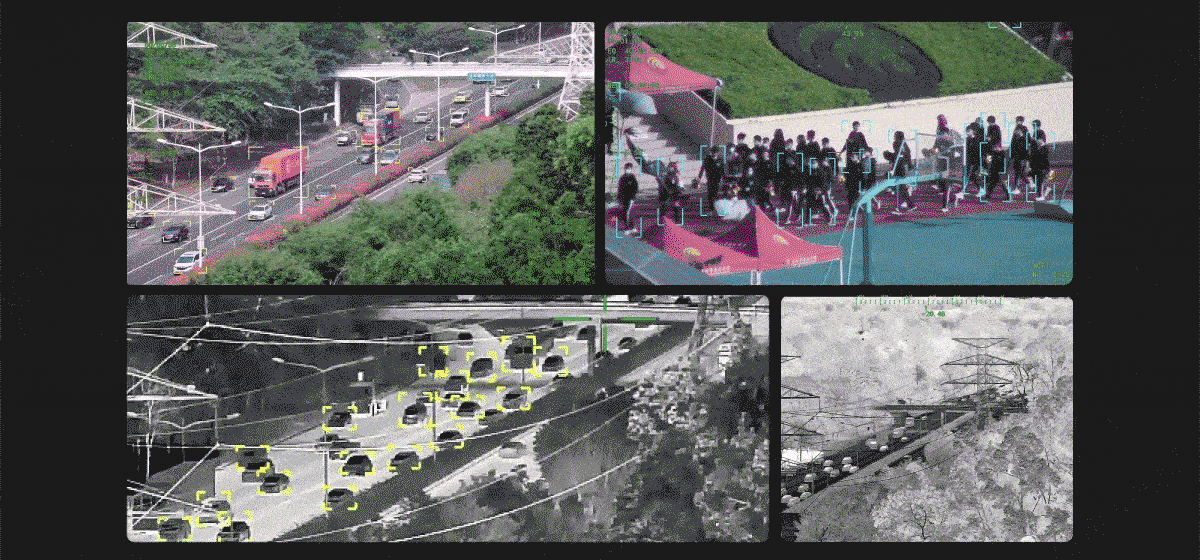

Camera AI Recognition Performance Parameters
Target typeVehicle, Human
Simultaneous detection quantity 10 targets
Contrast ratio 5%
Minimum size of target5 X 5 pixel
Vehicle detection ratio 85%
False alarm ratio 10%

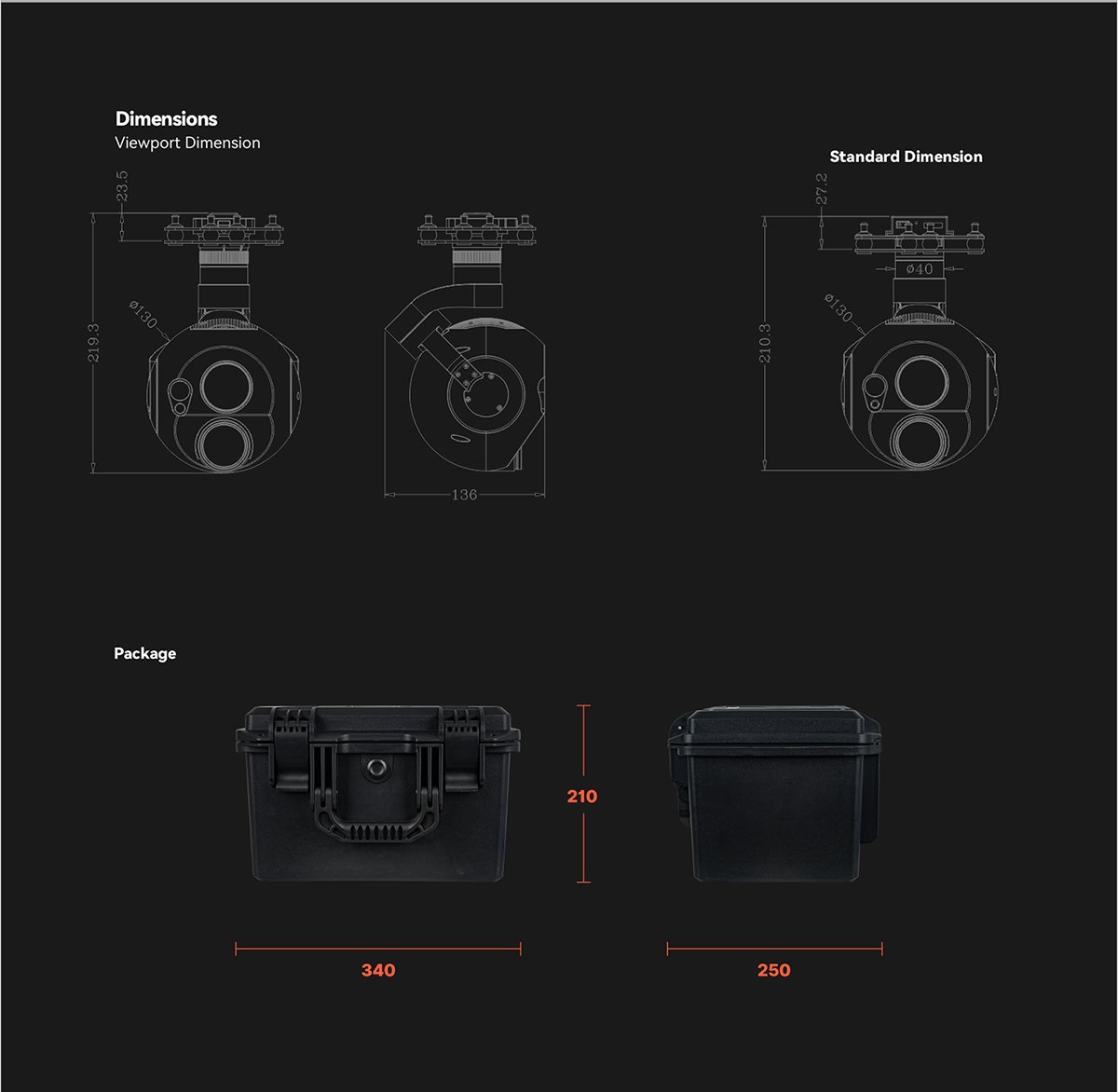

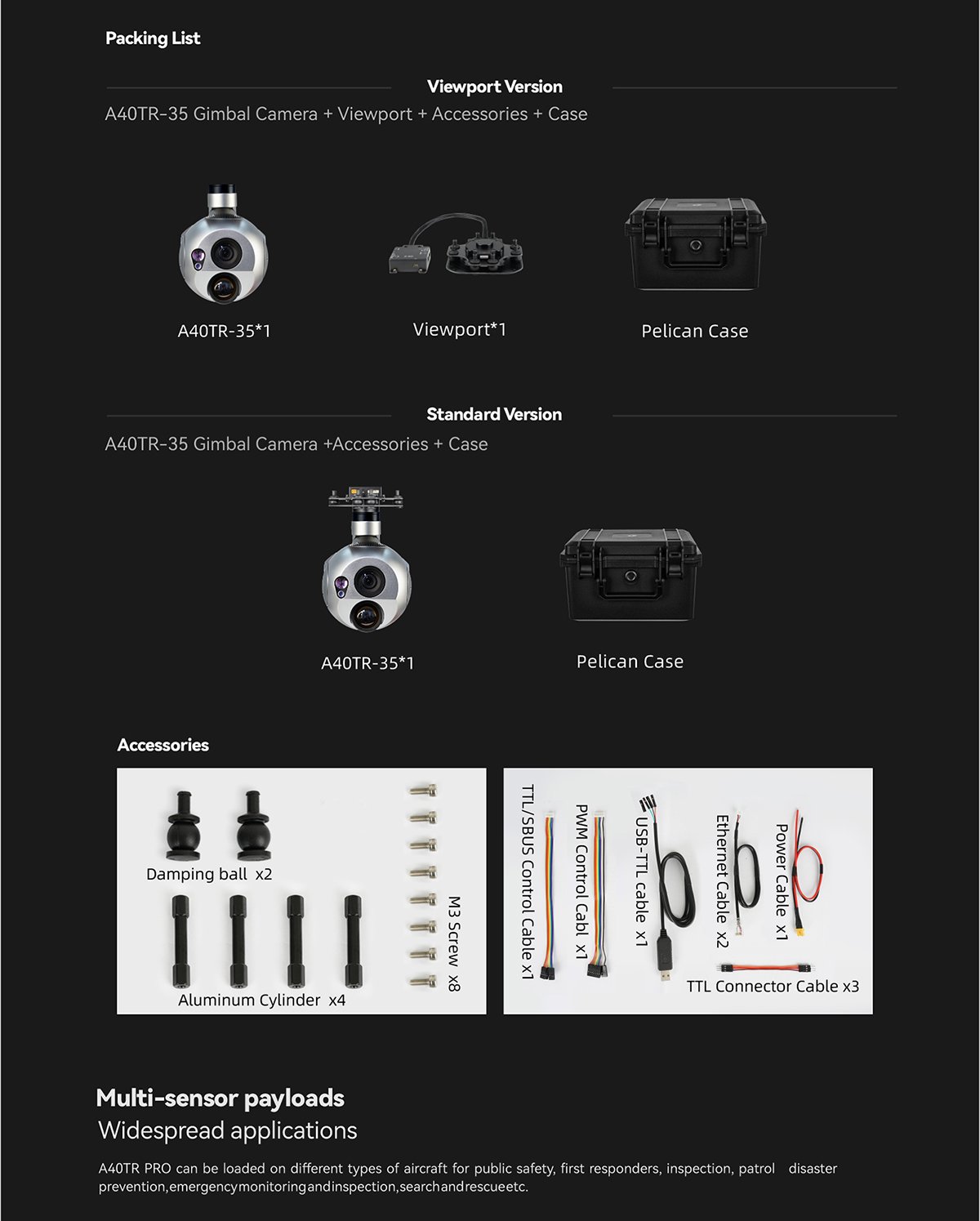

Packing Information
N.W.1136g (Viewport Version)
Product meas.134.2*125*210.4mm Viewport Version
