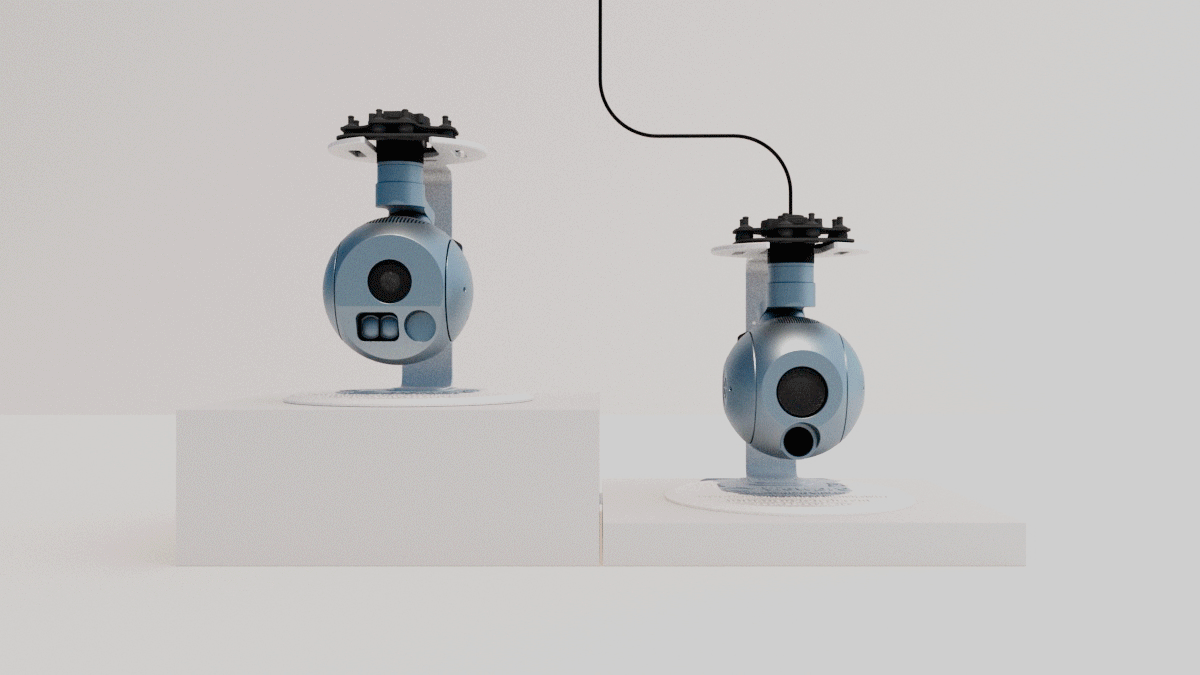

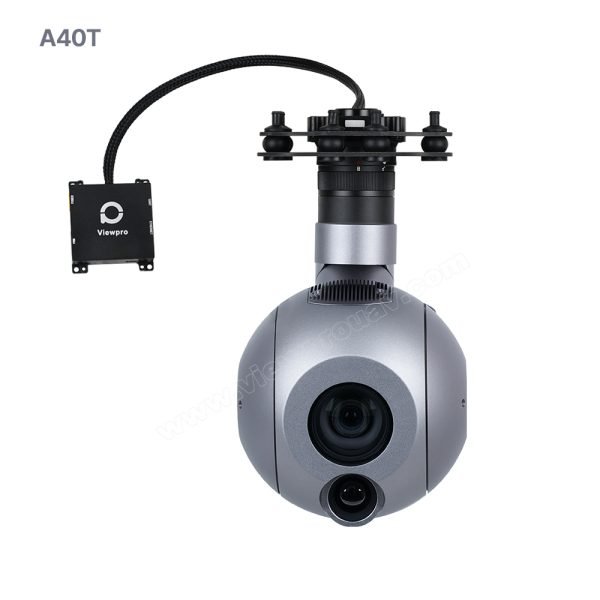

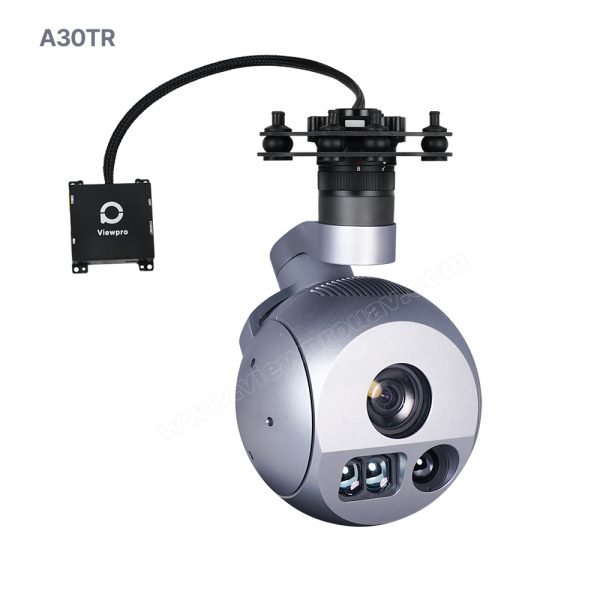

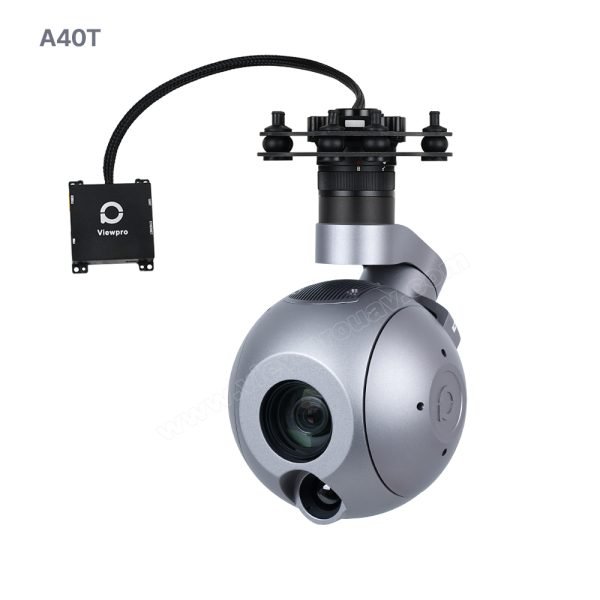

MA40T/A30TR 30x/40x Optical Zoom Dual-sensor AI Camera with LRF
China Moneypro

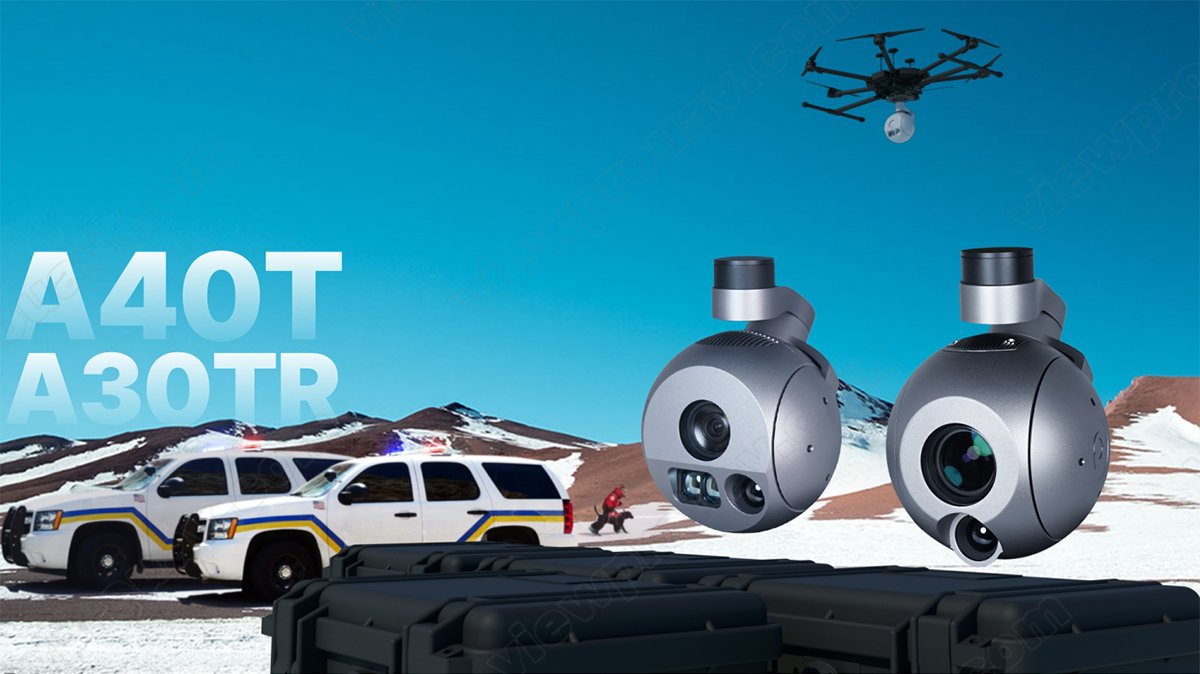

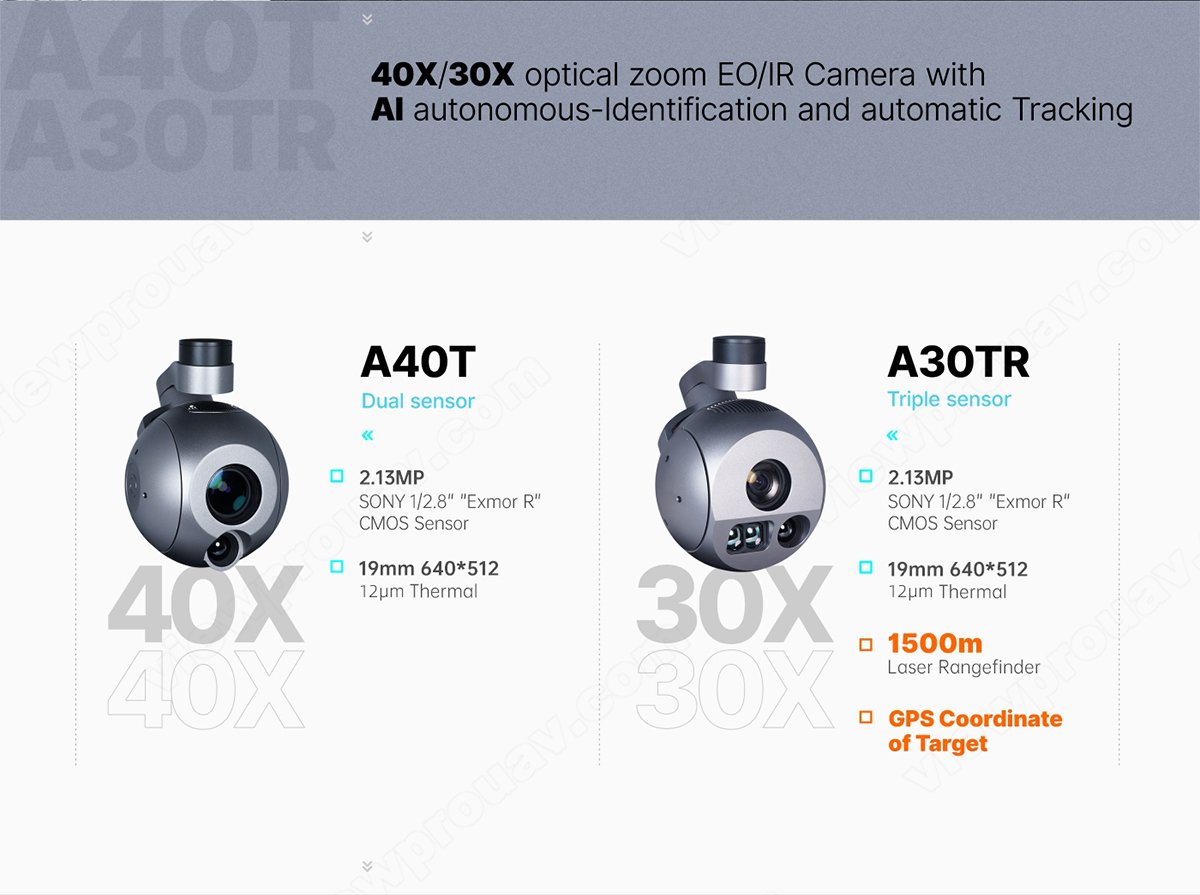

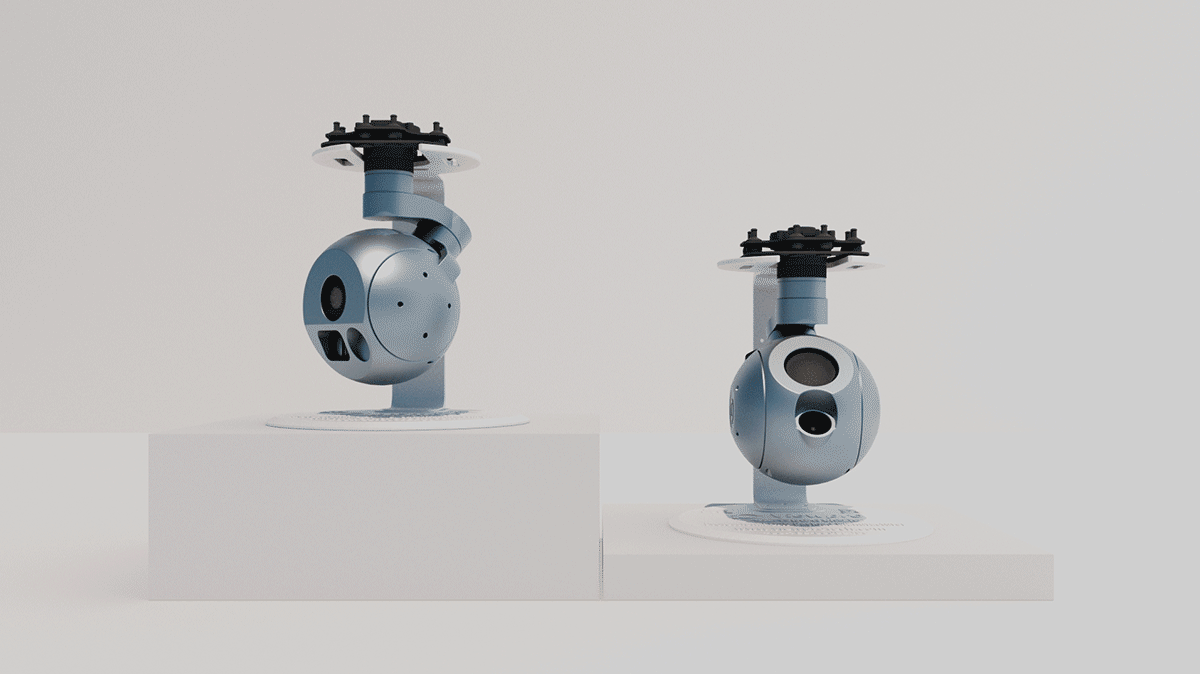

MA40T/A30TR are cost-effective dual-sensor gimbal camera with stable AI tracking function. A40T is 40x optical zoom and A30TR is 30x optical zoom with 19mm 640*512 12 m IR thermal camera. A30TR is with 1500m LRF. The high quality image and stable tracking function support the cameras can be applied to various applications, such as inspections, patrol, disaster prevention, emergency monitoring inspections, search and rescue, etc.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 800~1600mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| IP rating | IP44 |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | HTTP read pictures |

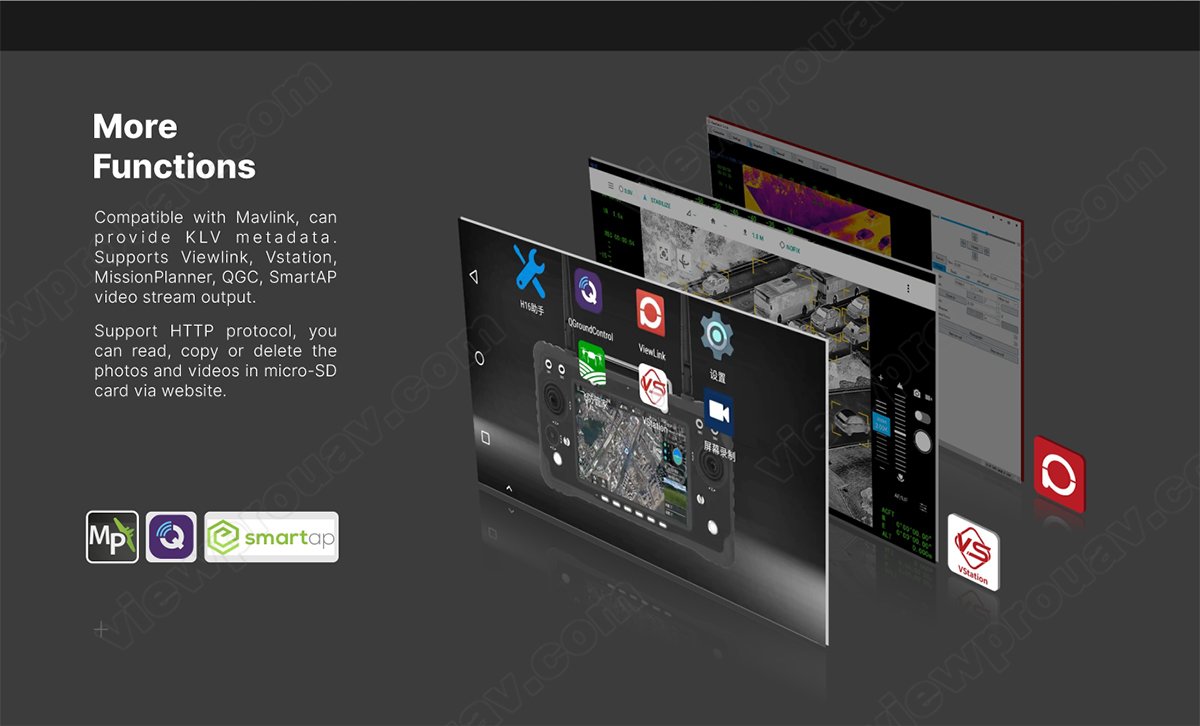

| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |

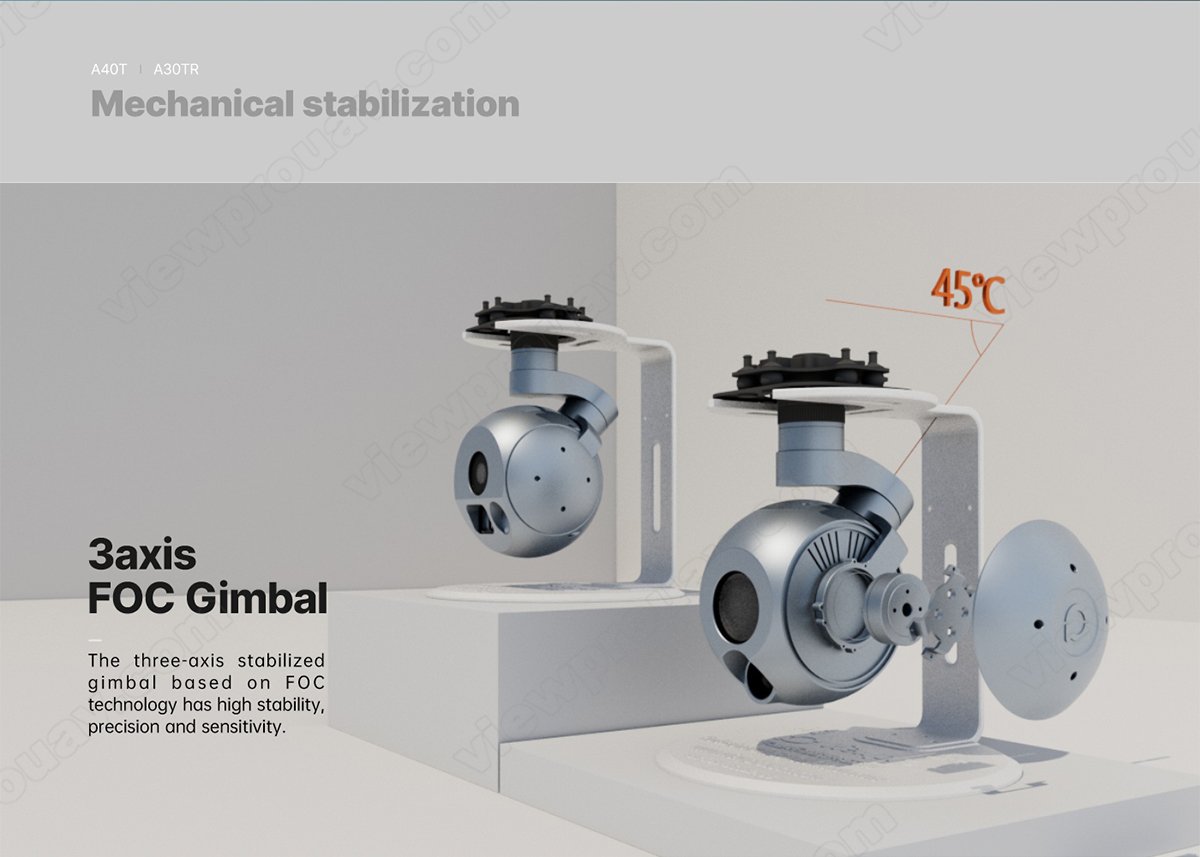

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -60 150 , Roll: 40 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 125 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |

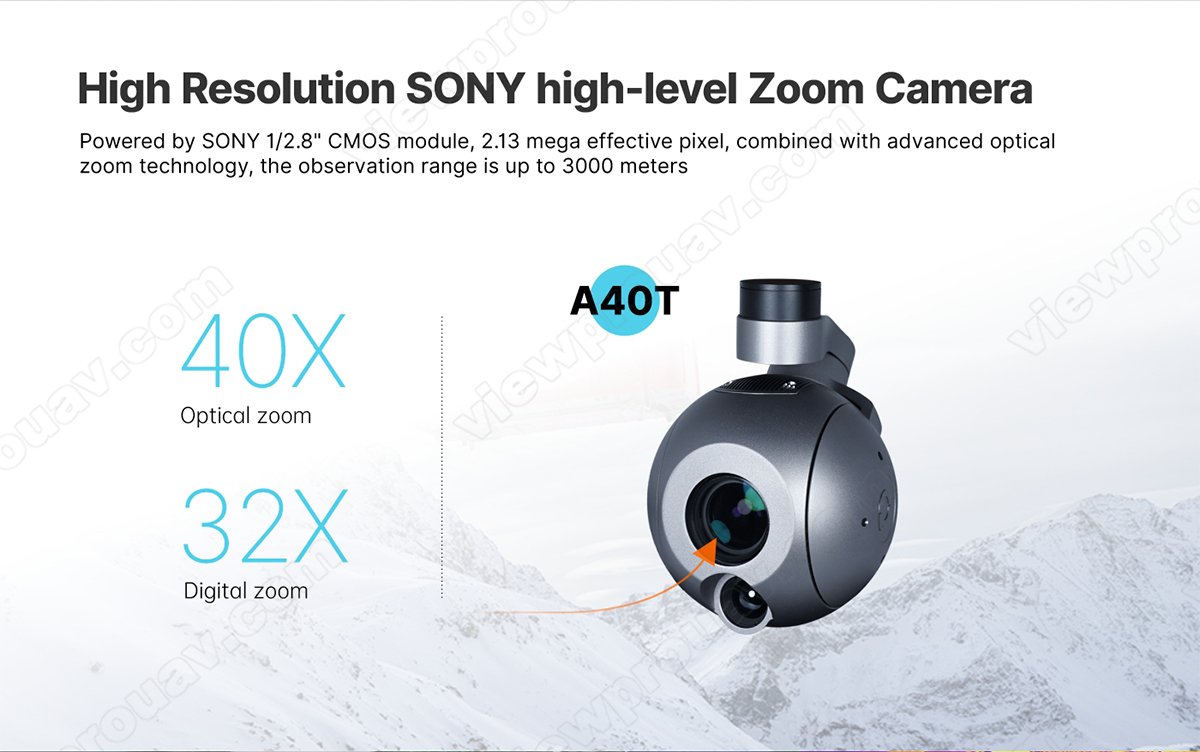

| Camera spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |

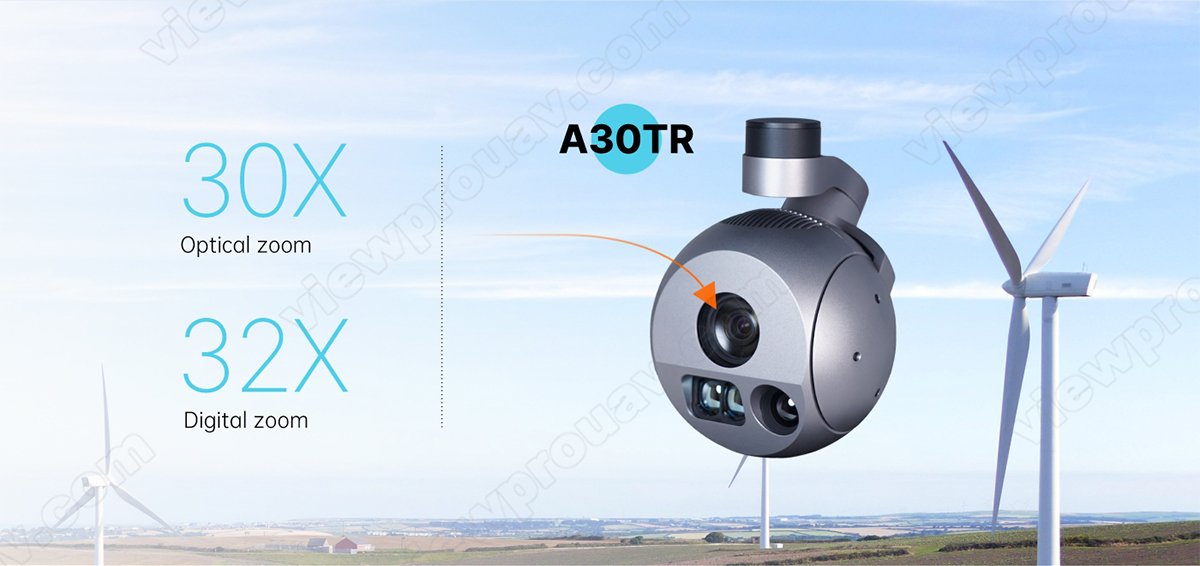

| Lens optical zoom | 30x, f=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |

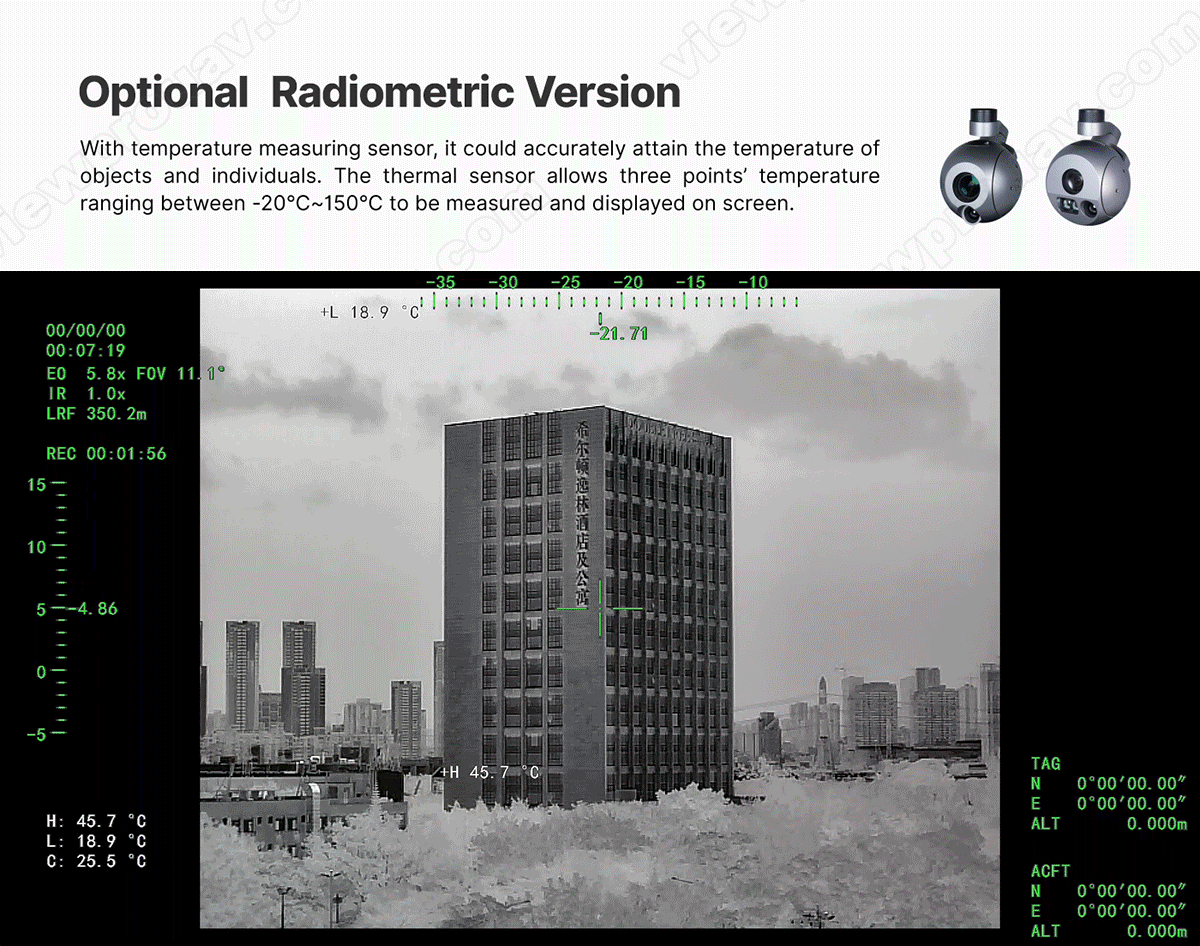

| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Coating Film | DLC |
| Horizontal FOV | 22.9 |
| Vertical FOV | 18.4 |
| Diagonal FOV | 29.0 |
| Detective Distance (Man: 1.8 0.5m) | 792 meters |
| Recognize Distance (Man: 1.8 0.5m) | 198 meters |
| Verified Distance (Man: 1.8 0.5m) | 99 meters |
| Detective Distance (Car: 4.2 1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2 1.8m) | 607 meters |
| Verified Distance (Car: 4.2 1.8m) | 303 meters |

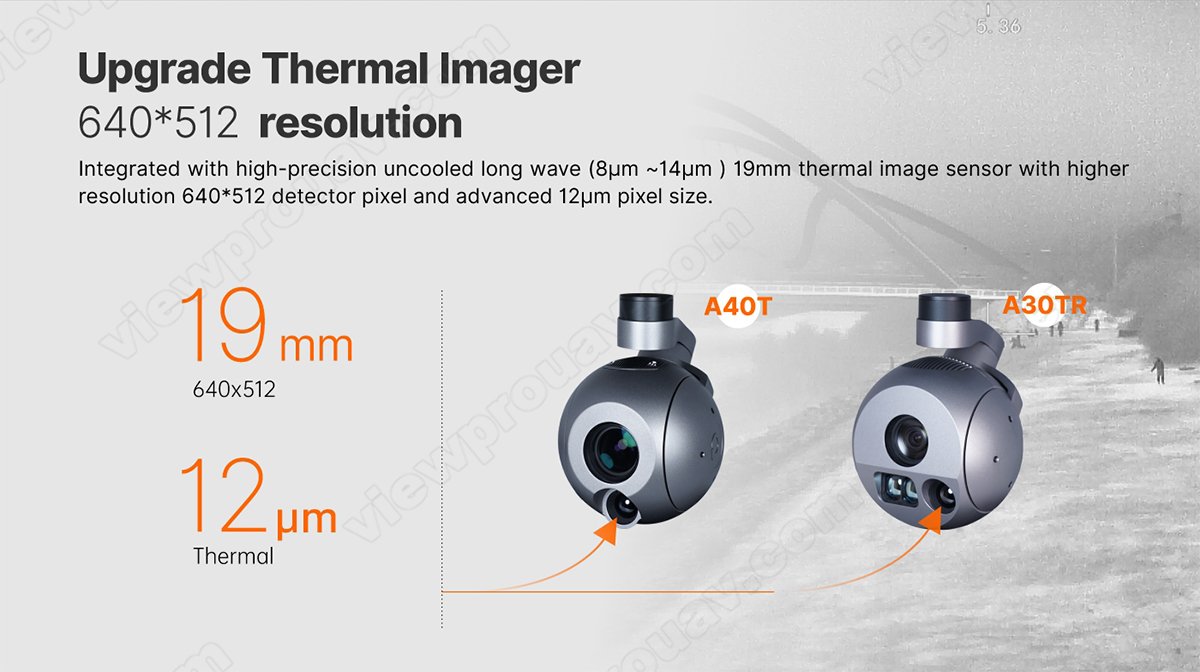

| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 50mK@F.0 @25 |
| Color palette | White hot, black hot, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |

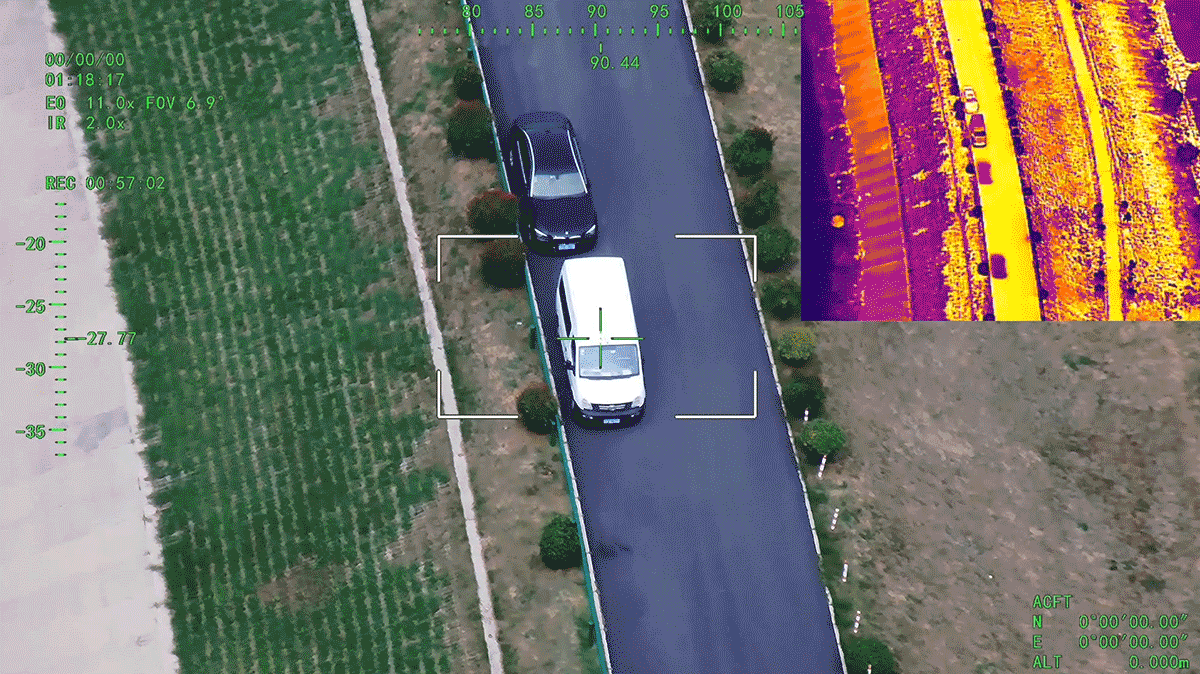

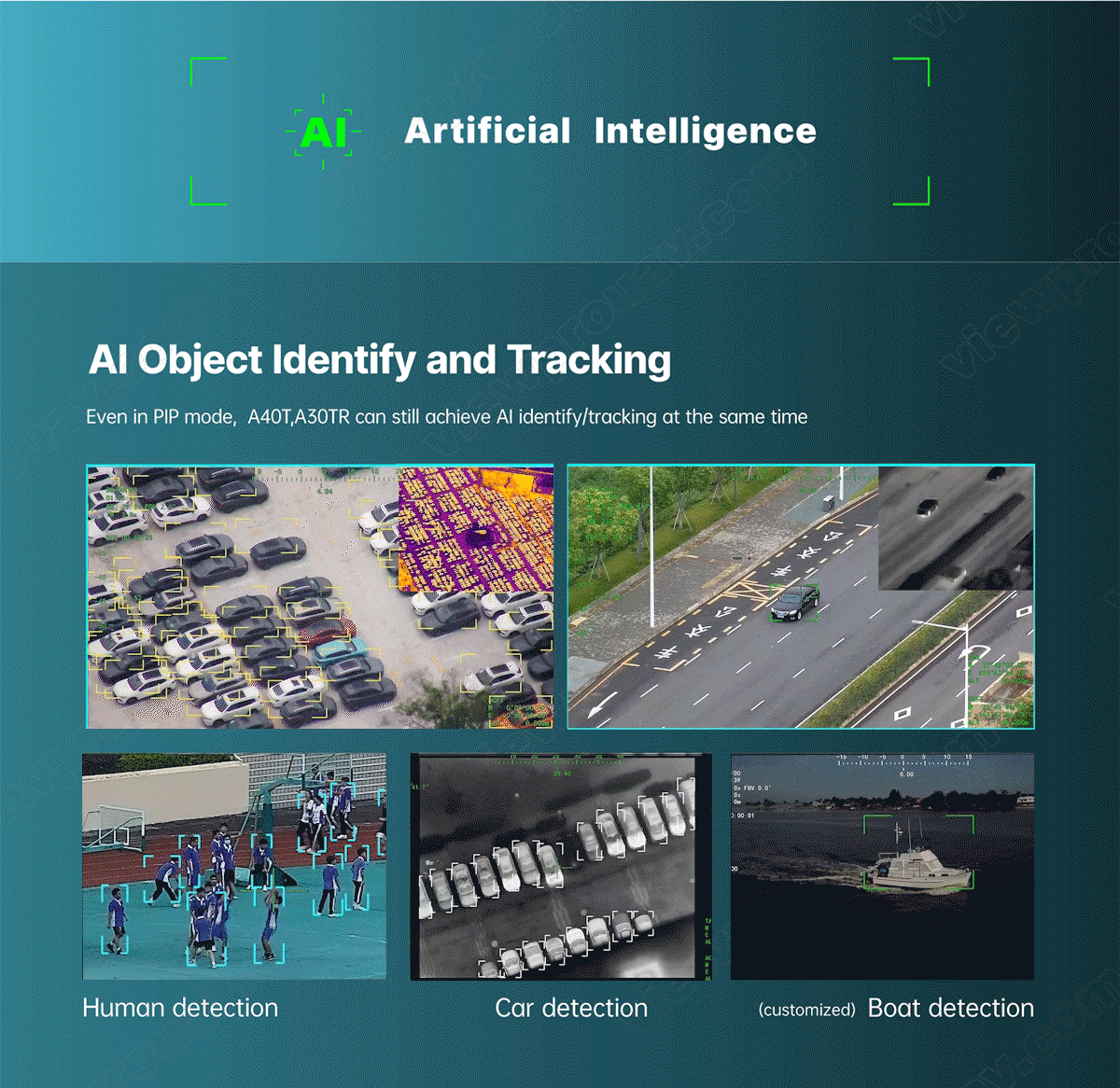

| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |

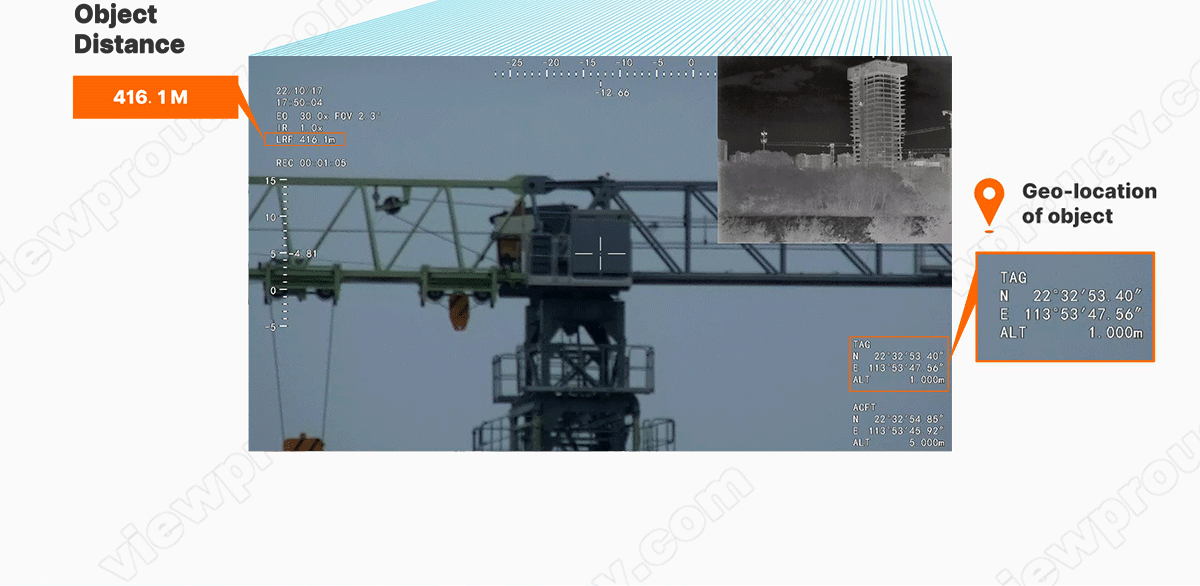

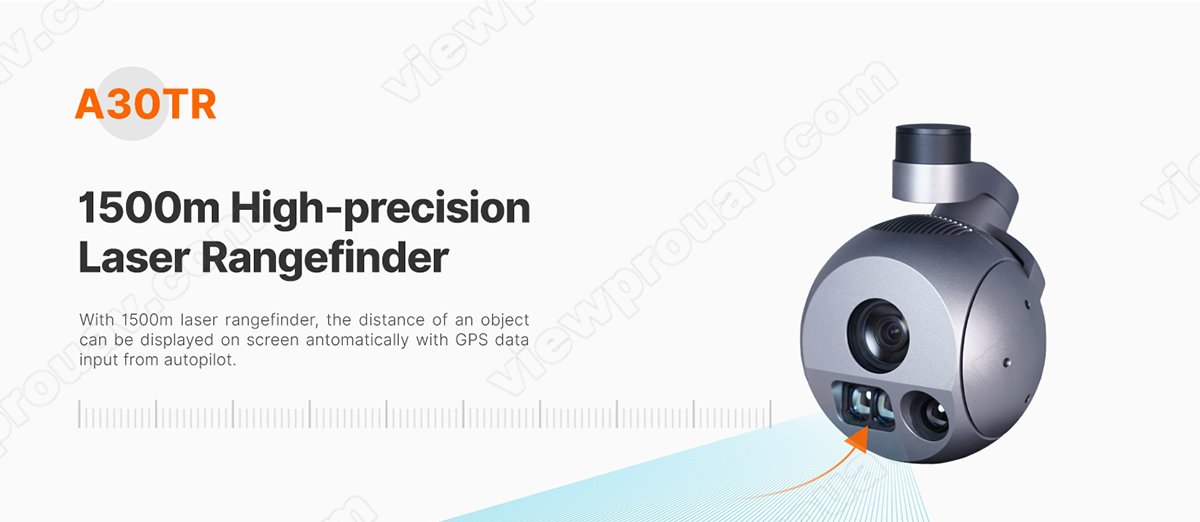

| IR Laser Rangefinder | |
| Range | 5~1500 meters |
| Resolution | 0.5m |
| Working current: | 80mA max |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 3 mrad |
| Laser pulse frequency | 1HZ |
| Power | 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |

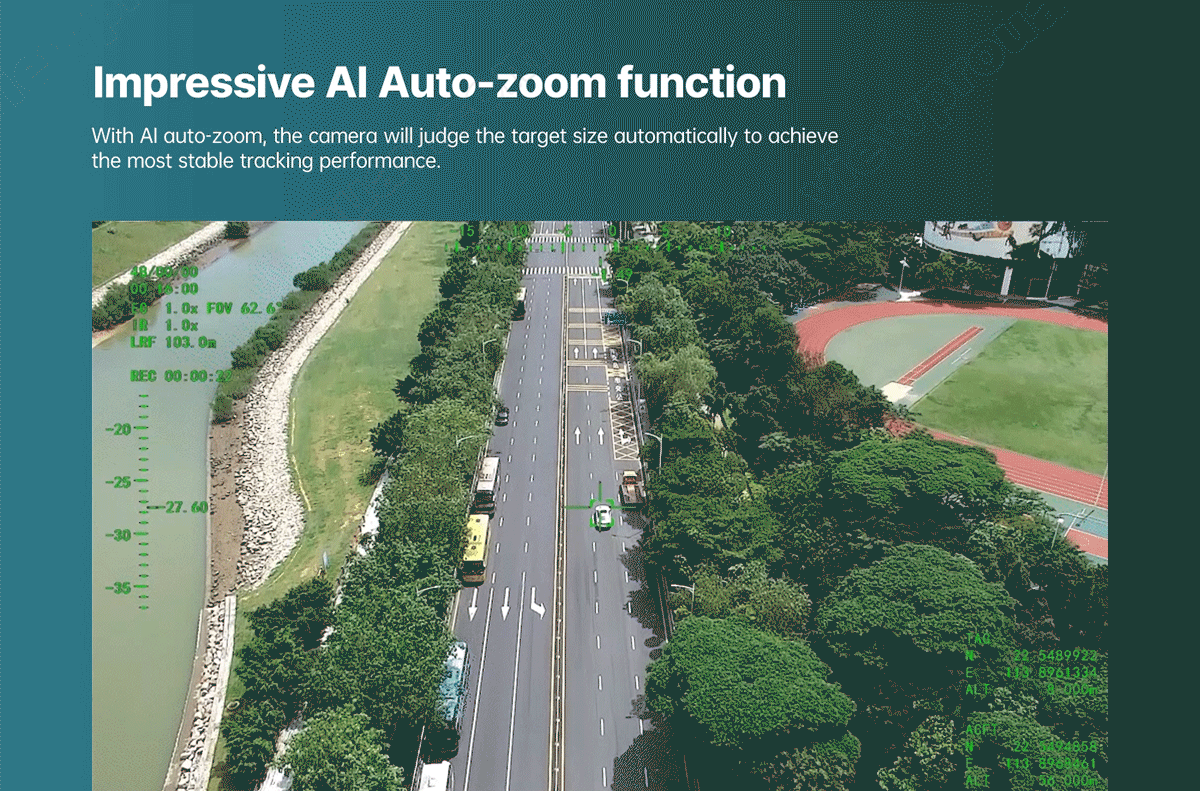

| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Packing Information | |
| N.W. | 1234g (Viewport version) |

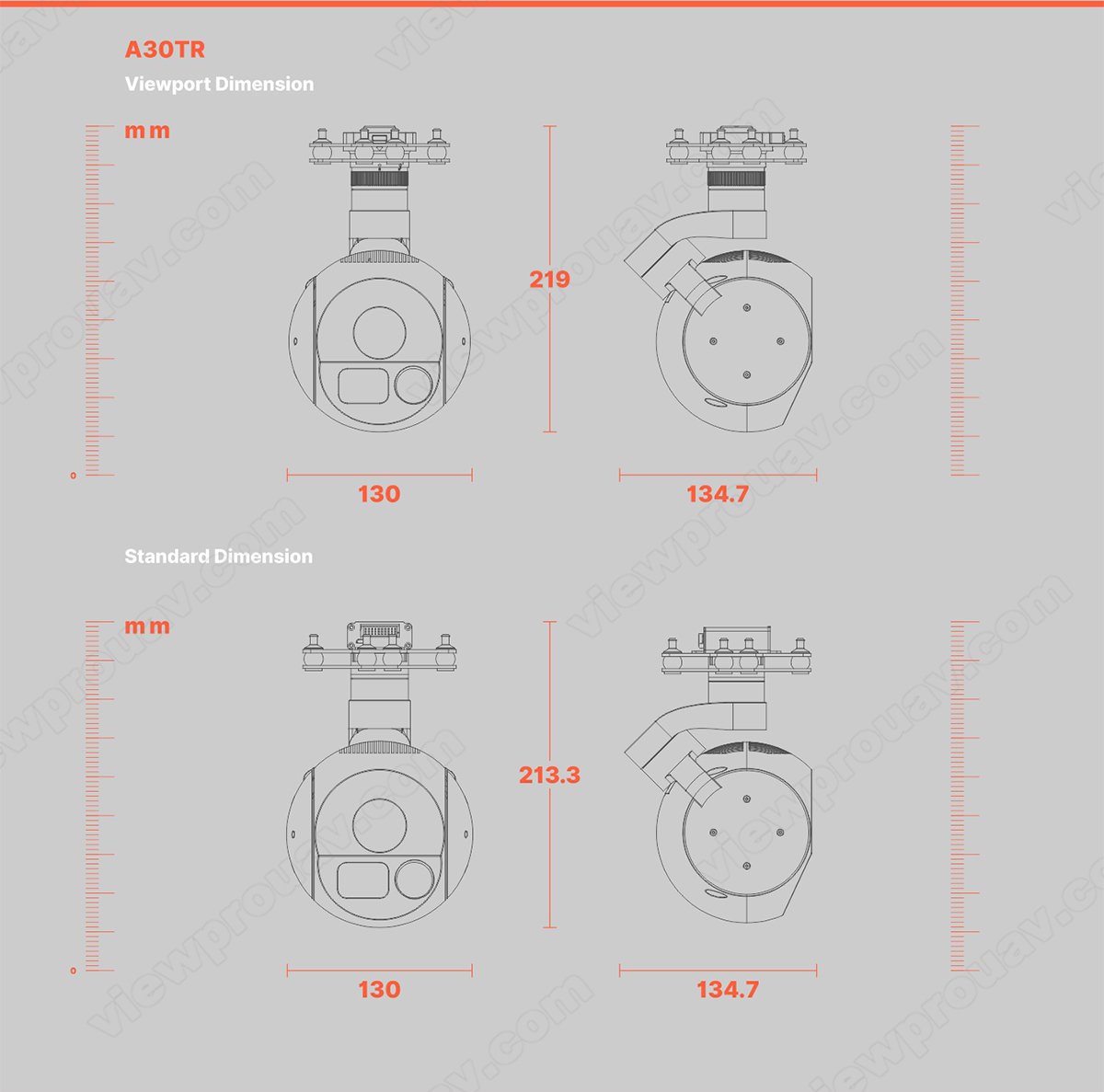

| Product meas. | 144.2*130*213.3mm (Standard version) /144.2*130*219mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2964g |

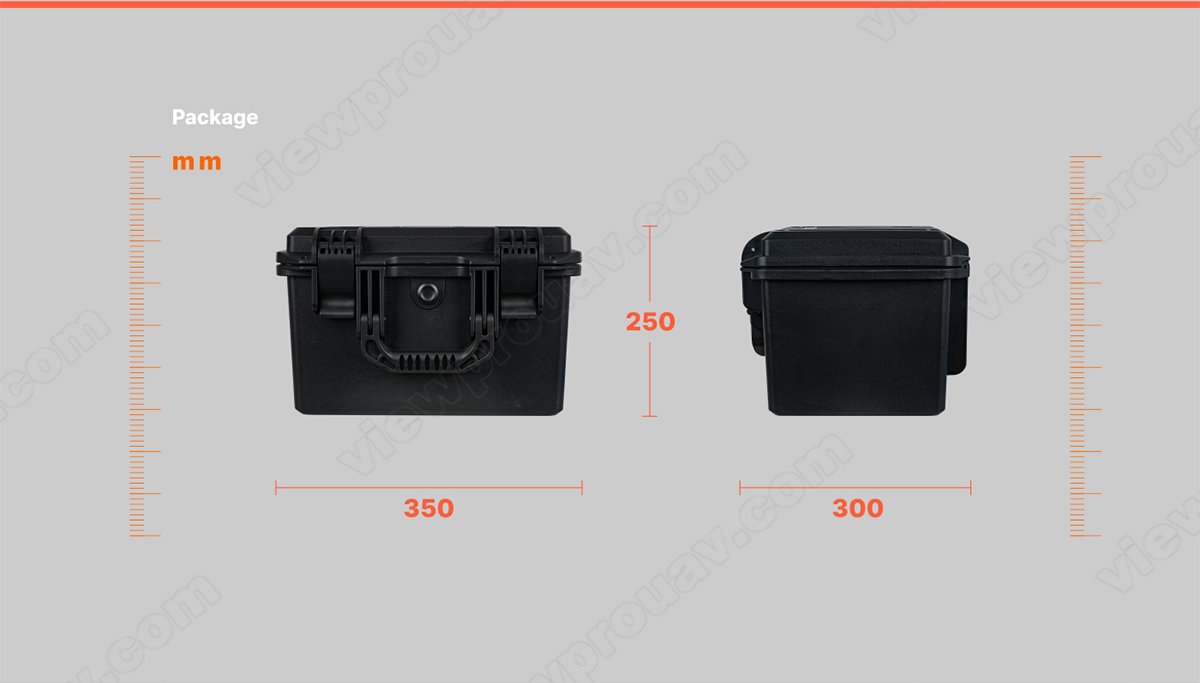

| Package meas. | 350*300*250mm |
