MA30TR-50M Laser Rangefinder EO/IR Camera with Al Auto-ldentify and Tracking
China Moneypro

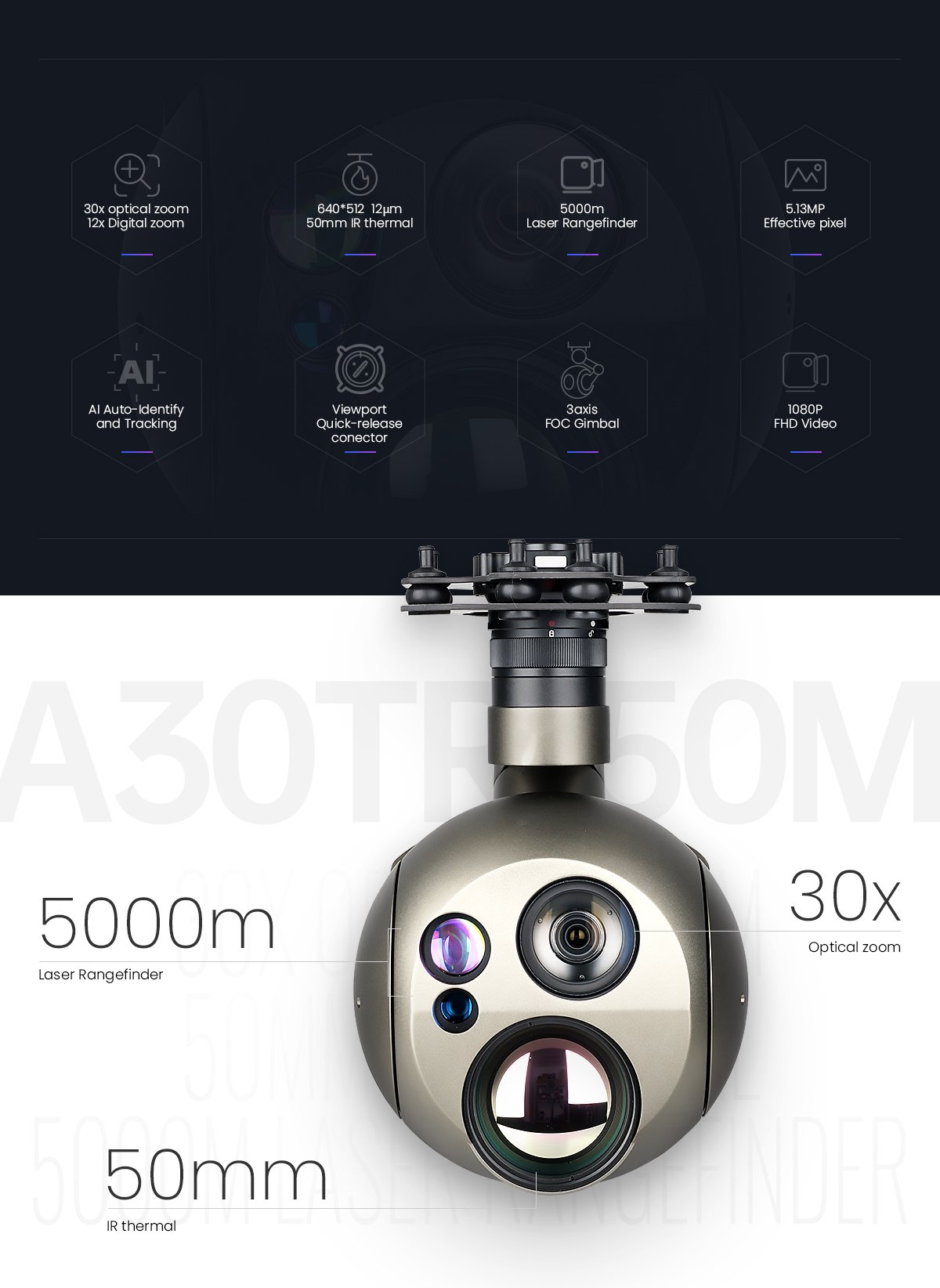

The MA30TR-50M is an advanced laser rangefinder EO/IR camera system featuring integrated AI auto-identification and tracking capabilities. This professional-grade gimbal camera combines a 30x optical zoom visible light camera with a 50mm thermal imaging system and 1535nm laser rangefinder. The system delivers full HD 1080p video with exceptional low-light performance at 0.009 lux and includes sophisticated object tracking with up to 10 simultaneous target detection. The thermal imager achieves detection ranges exceeding 2km for personnel and 6km for vehicles, while the laser rangefinder provides accurate distance measurements up to 5km. With AI-powered car and human detection at 85% accuracy, precise gimbal stabilization, and flexible control options including PWM, TTL, and network protocols, this system is ideal for surveillance, reconnaissance, and security applications requiring long-range target identification and continuous tracking.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 660~1250mA @ 16V |
| Power consumption | Average 10.6W, Max 20W |
| Working environment temp. | -20 ~ +50 |
| Output | Micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265) |
| Local-storage | TF card (Up to 256G, class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4(1080P 30fps) |

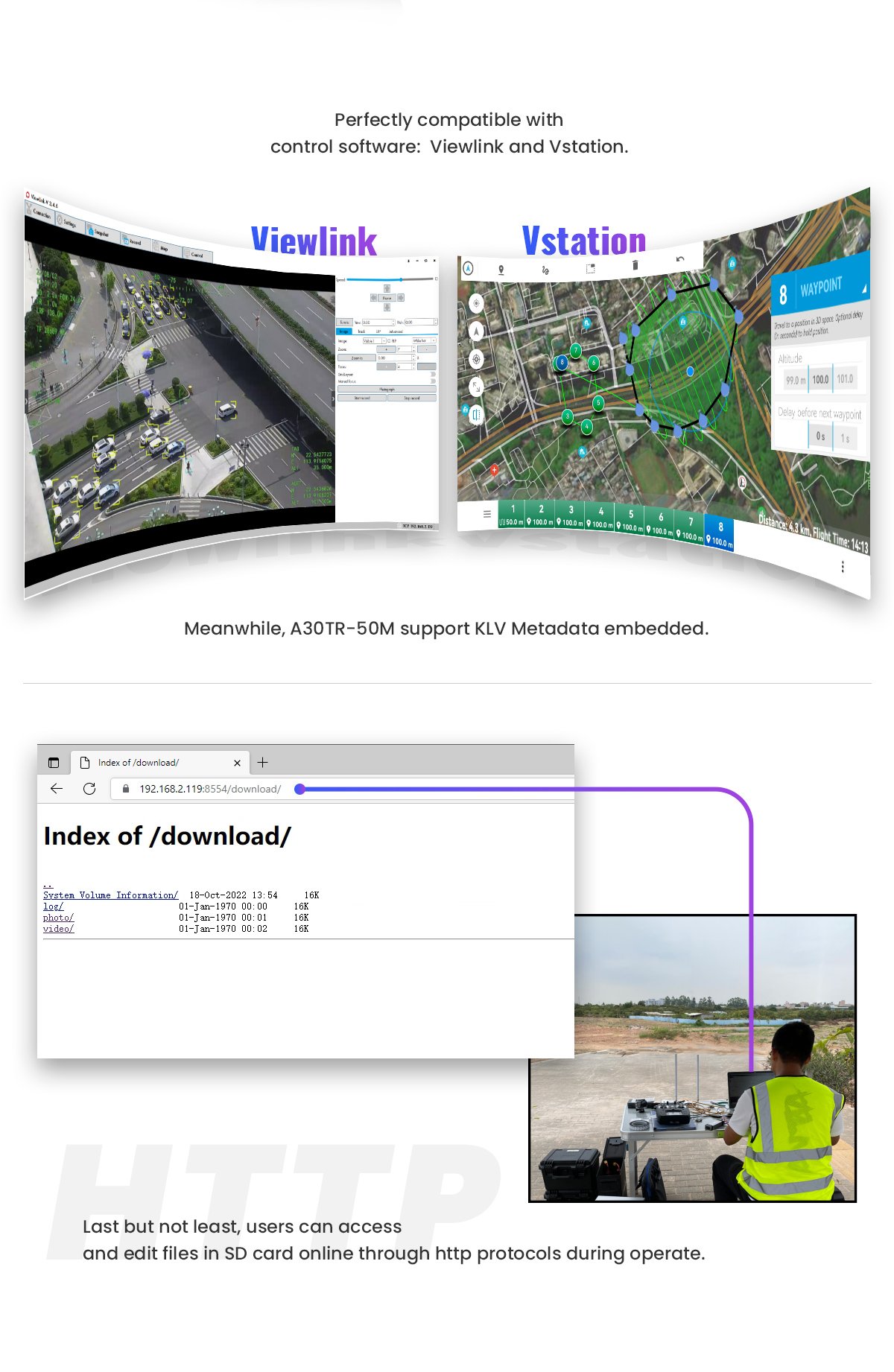

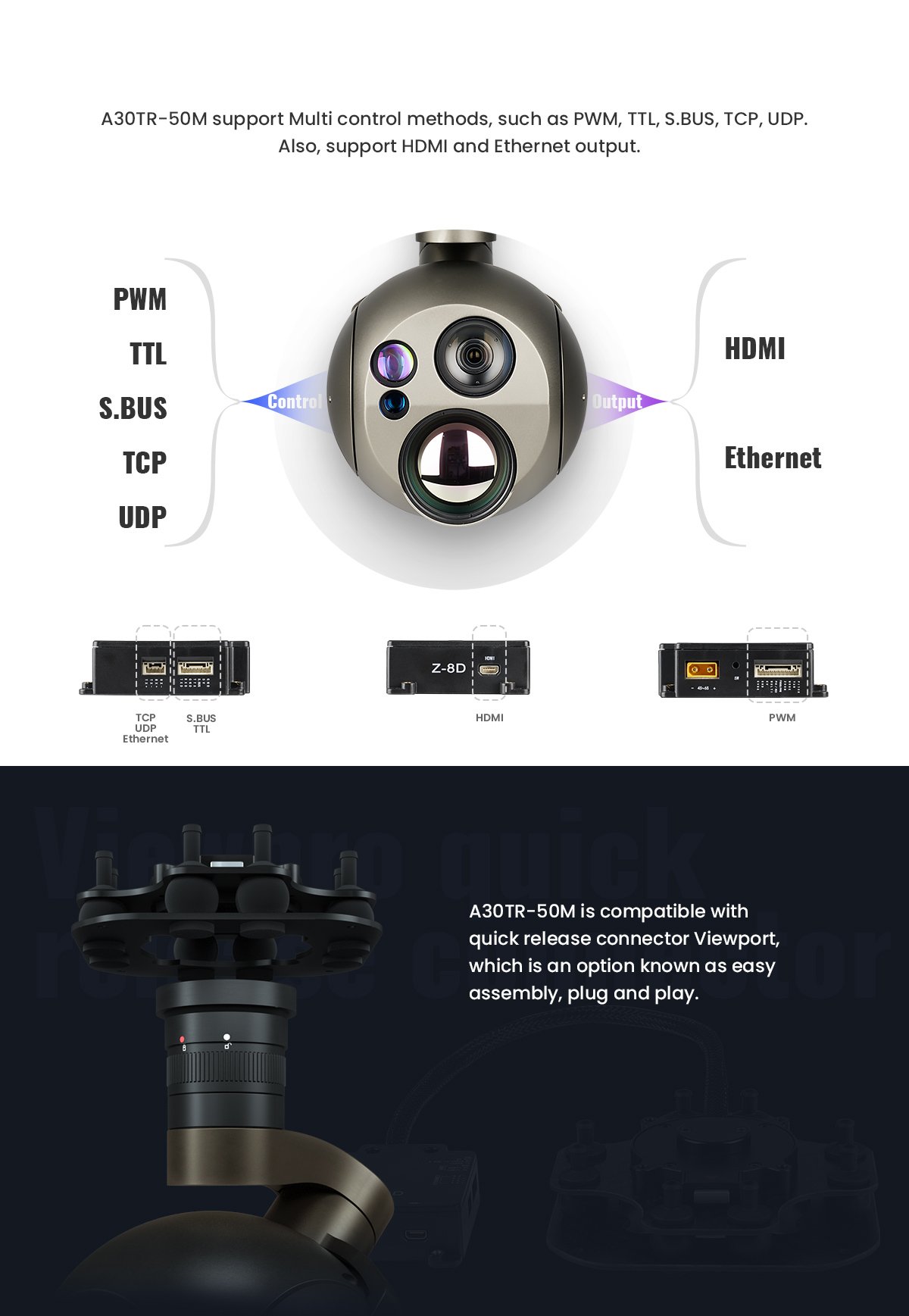

| Control method | PWM / TTL / S.BUS / TCP / UDP |

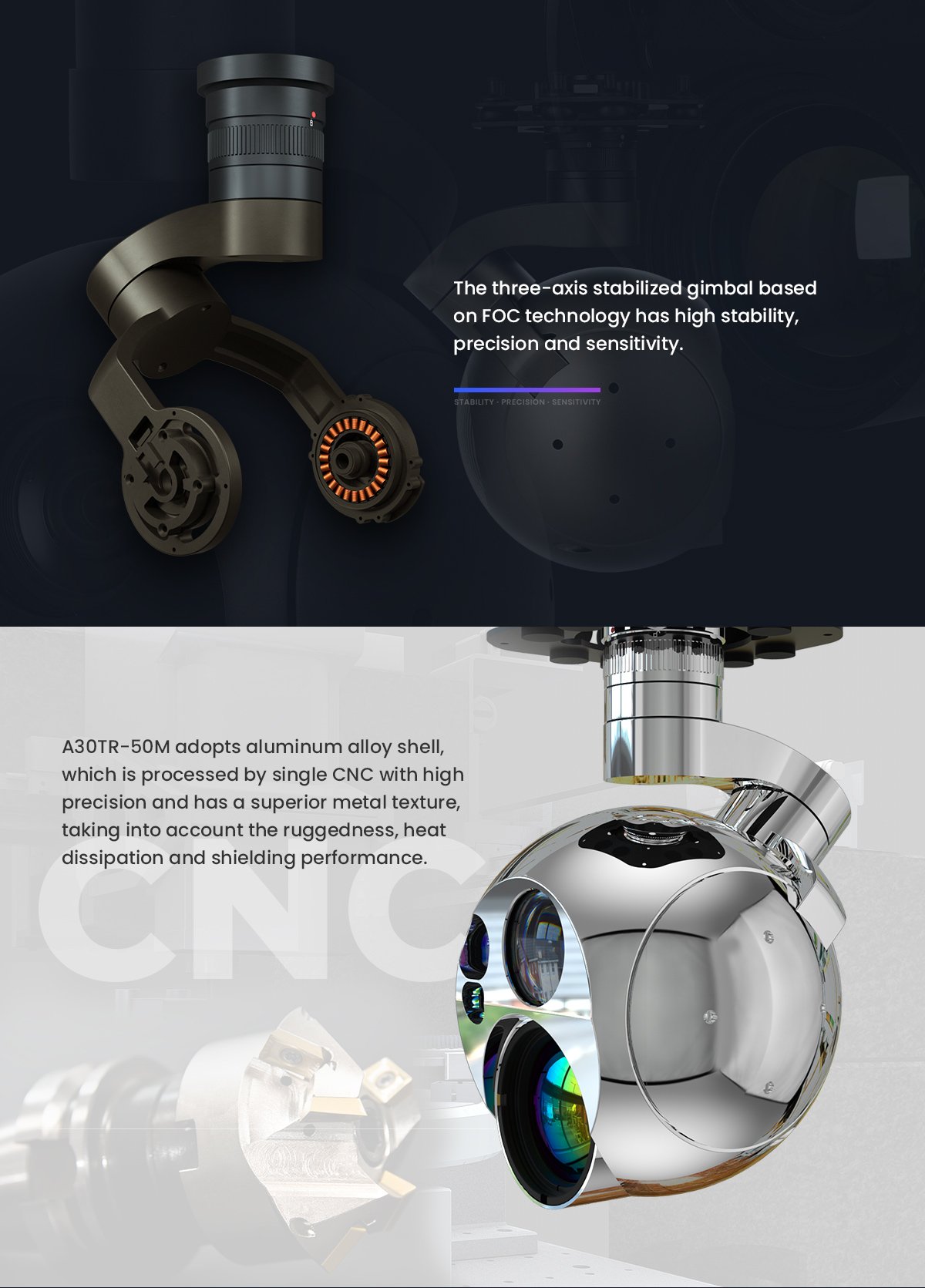

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55 (Up) 125 (Down), Roll: 45 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 120 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| Camera spec | |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |

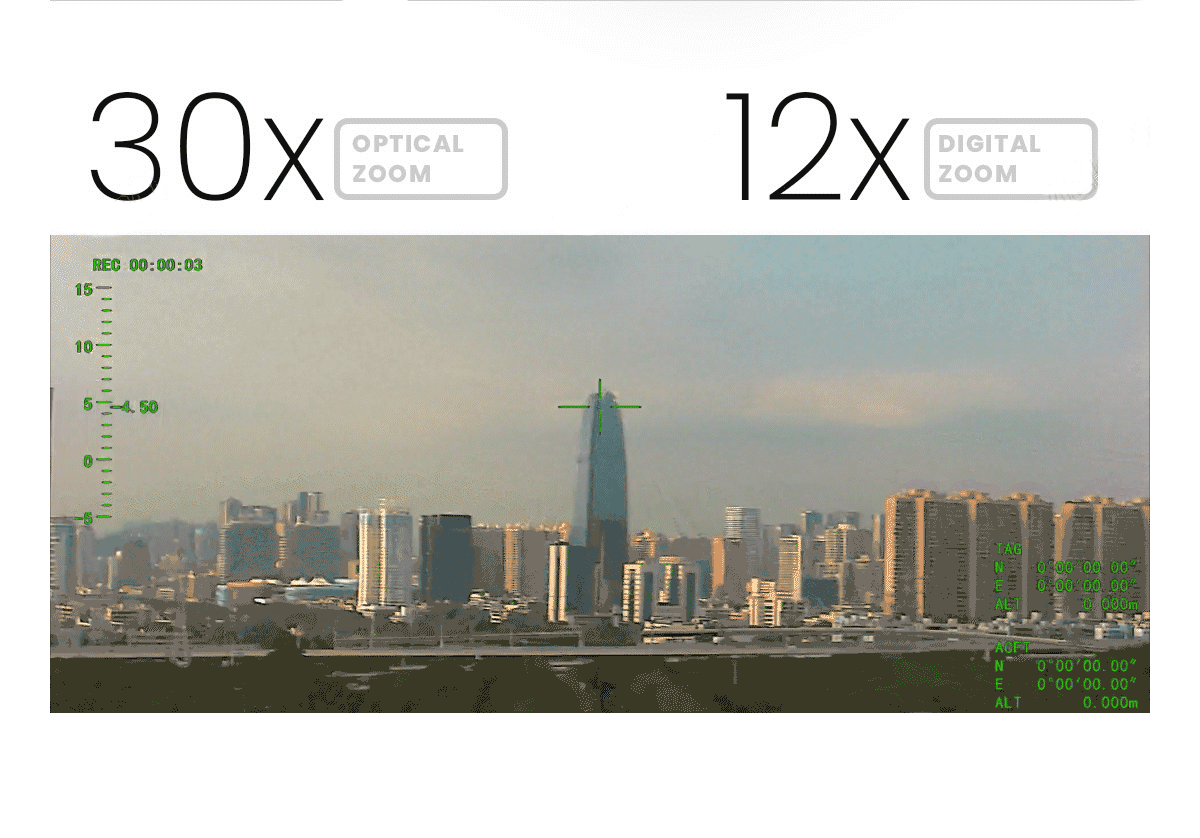

| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0 (wide end) ~ 2.4 (tele end) |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |

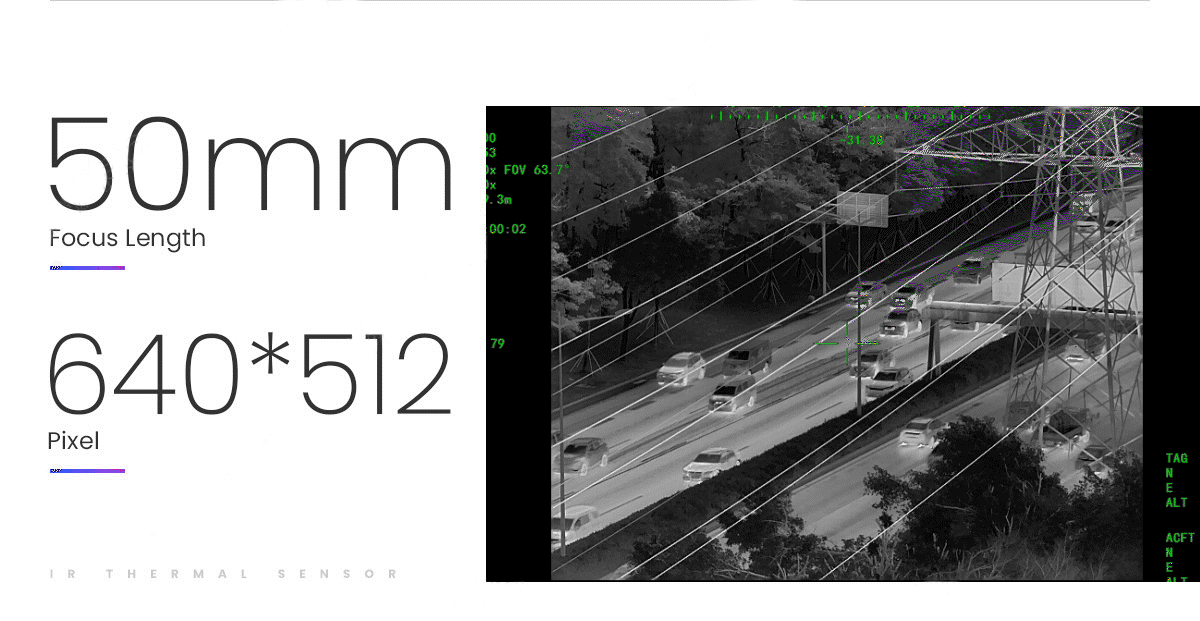

| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 8.8 |
| Vertical FOV | 7.0 |
| Diagonal FOV | 11.2 |
| Detective Distance (Man: 1.8 0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8 0.5m) | 521 meters |
| Verified Distance (Man: 1.8 0.5m) | 260 meters |
| Detective Distance (Car: 4.2 1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1597 meters |
| Verified Distance (Car: 4.2 1.8m) | 799 meters |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 40mK@25 , F#1.0 |

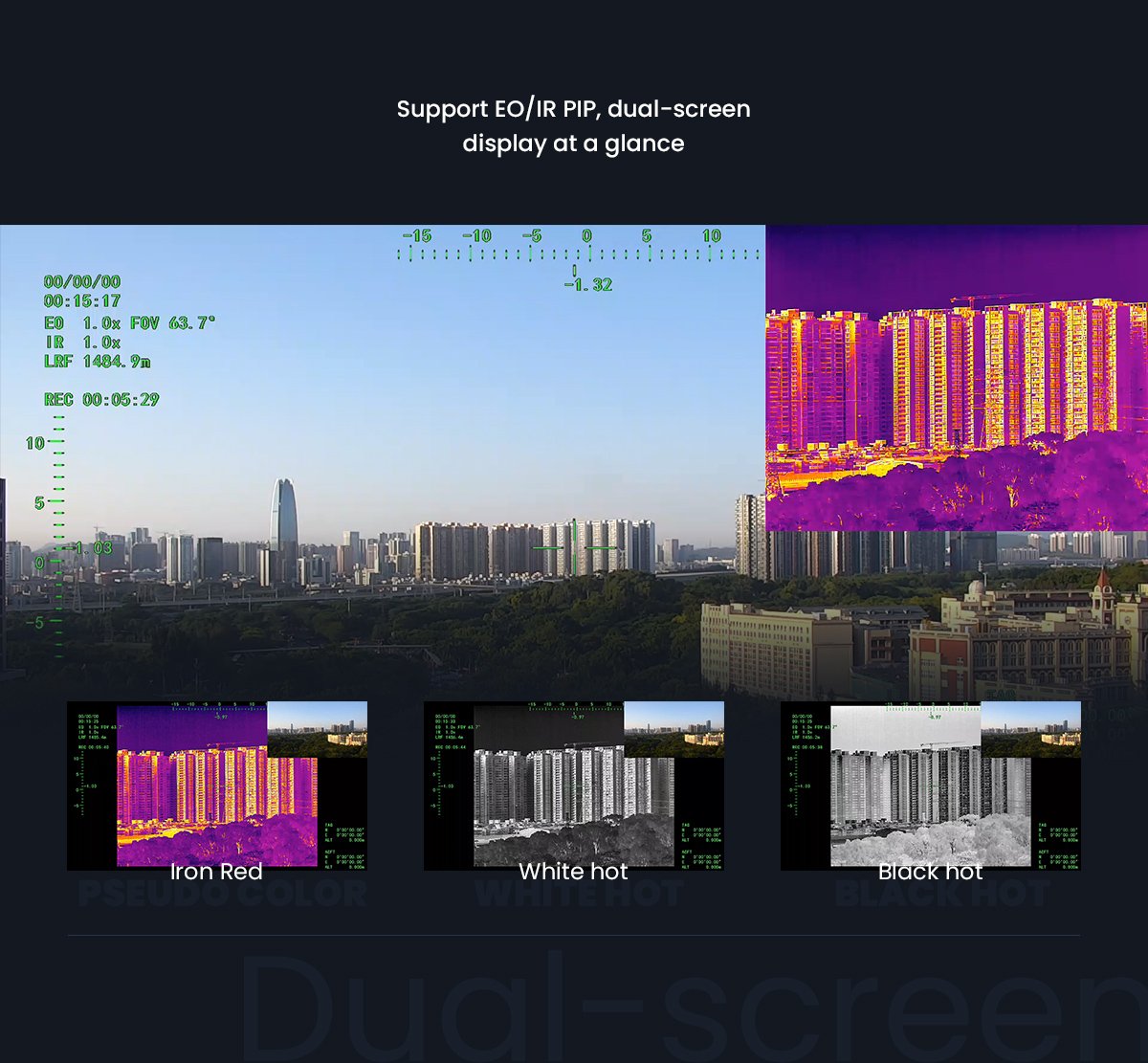

| Color palette | white hot, black hot, pseudo color |
| Digital zoom | 1x~8x |

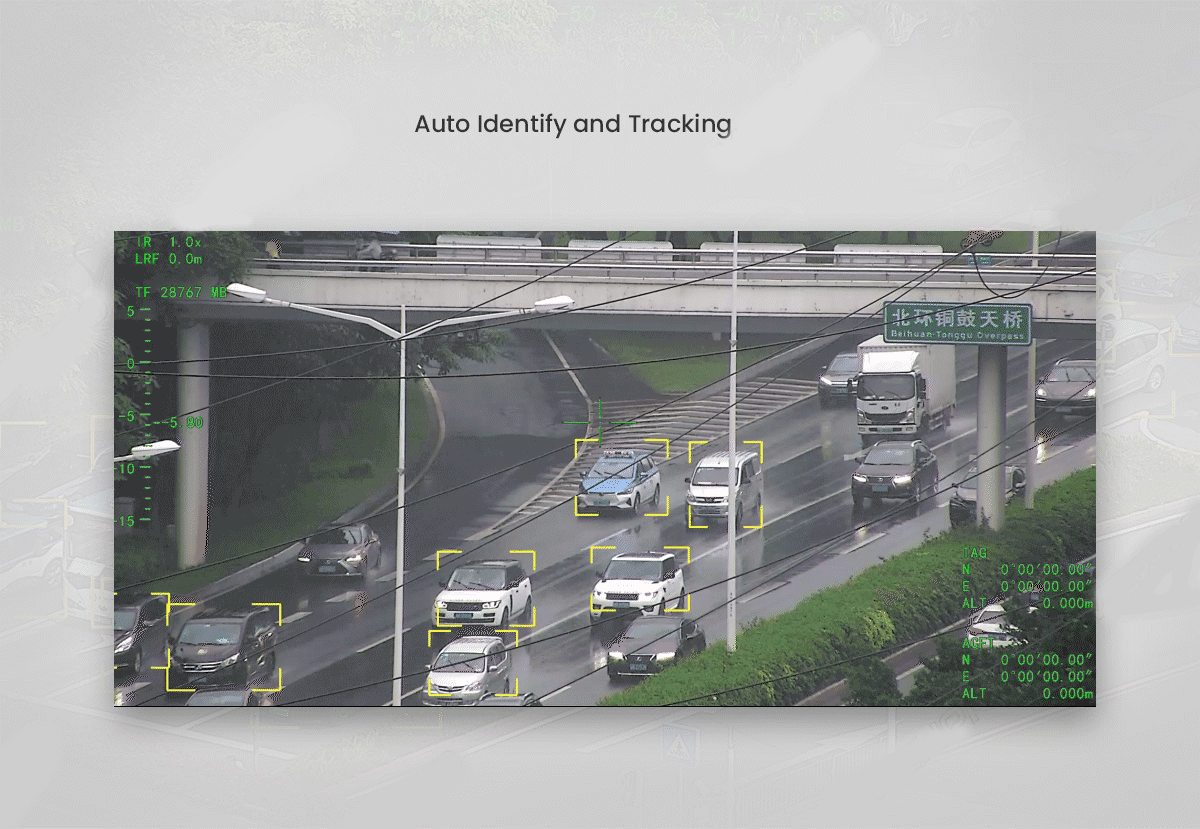

| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |

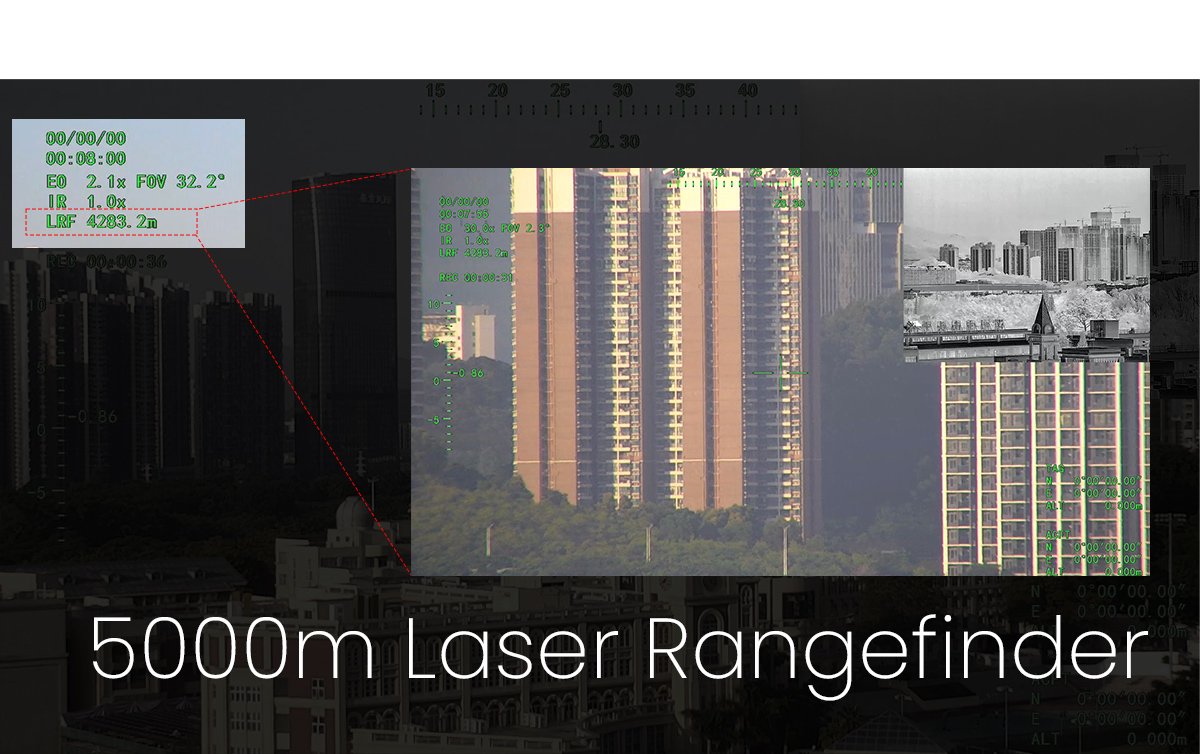

| IR Laser Rangefinder | |
| Measure ability | 5km for big target (eg. building) 3km for car 2.3m 2.3m 1.5km for people 1.75m 0.75m (Based on typical value: LOS visibiligy: 8km Diffuse reflection rate: 0.3 Humility: 80%) |
| Accuracy (Typical value) | 1m (RMS) |
| Wave length | 1535nm pulse laser |
| Divergent Angle | 0.5mrad |
| Measurement frequency | 1~10HZ |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| EO Camera AI Performance | |
| TOPS | 1T |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Packing Information | |
| N.W. | 1411 10g (Viewport version) |
| Product meas. | 145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version) |

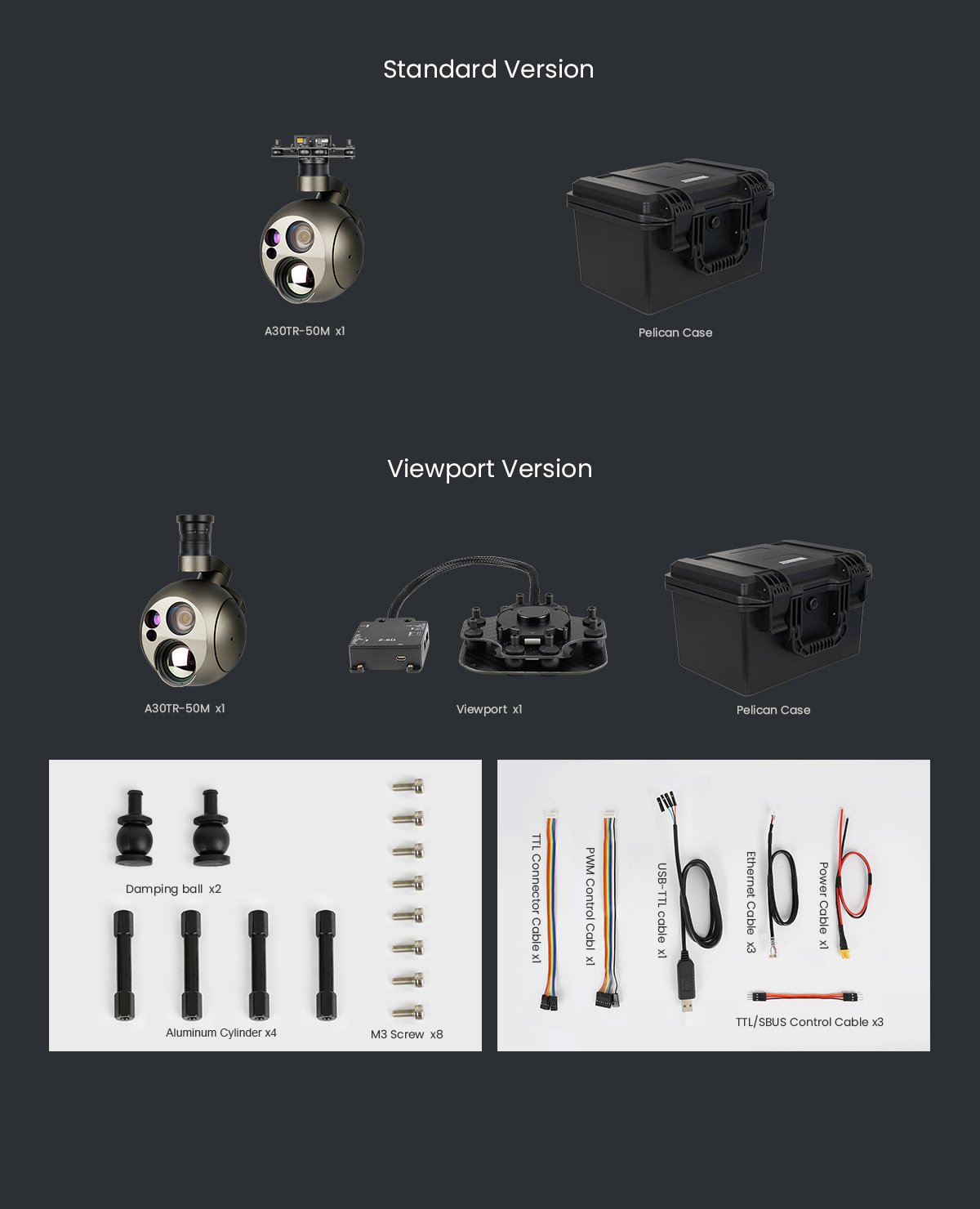

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 3138g |
| Package meas. | 350*300*250mm |
