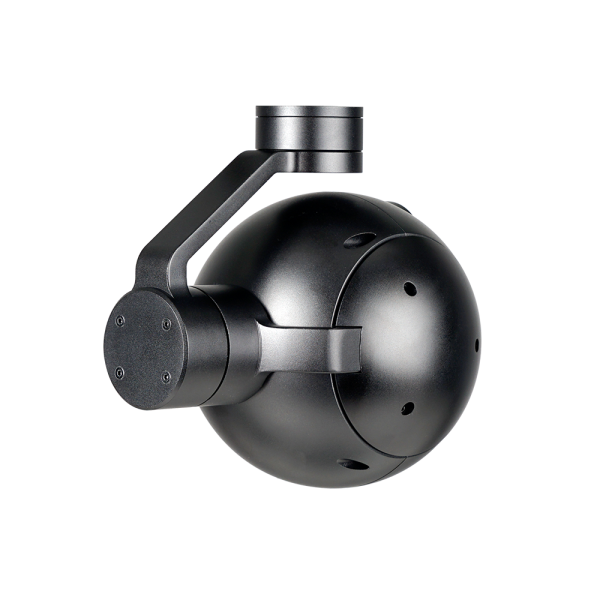

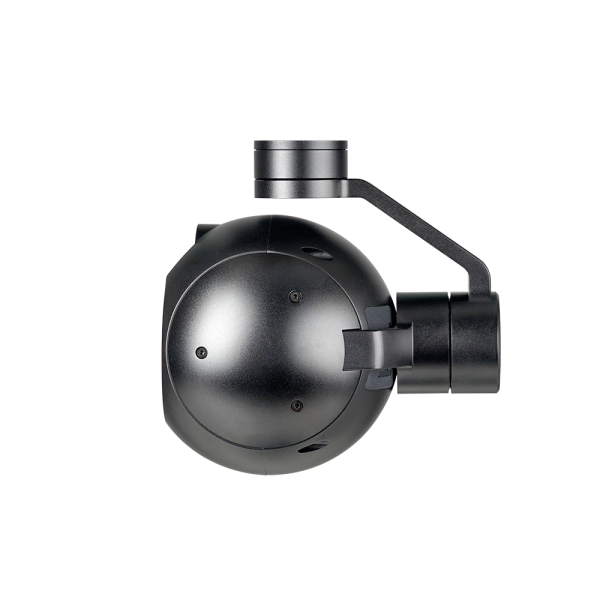

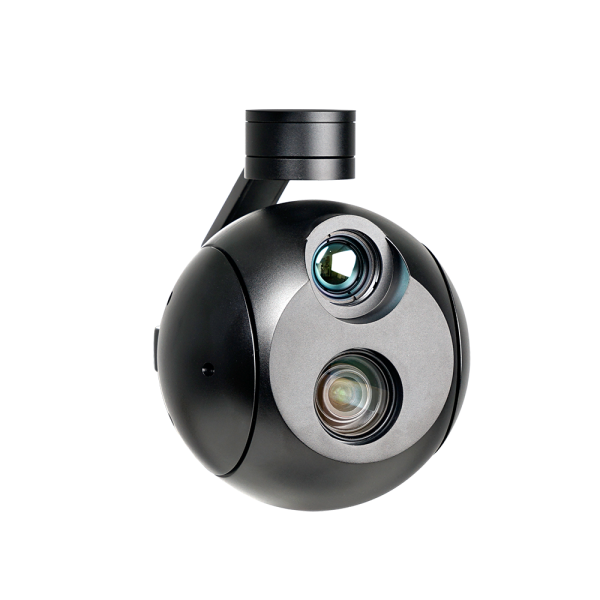

MA10T Pro 10x Dual Sensor Light Weight AI Tracking Camera
China Moneypro

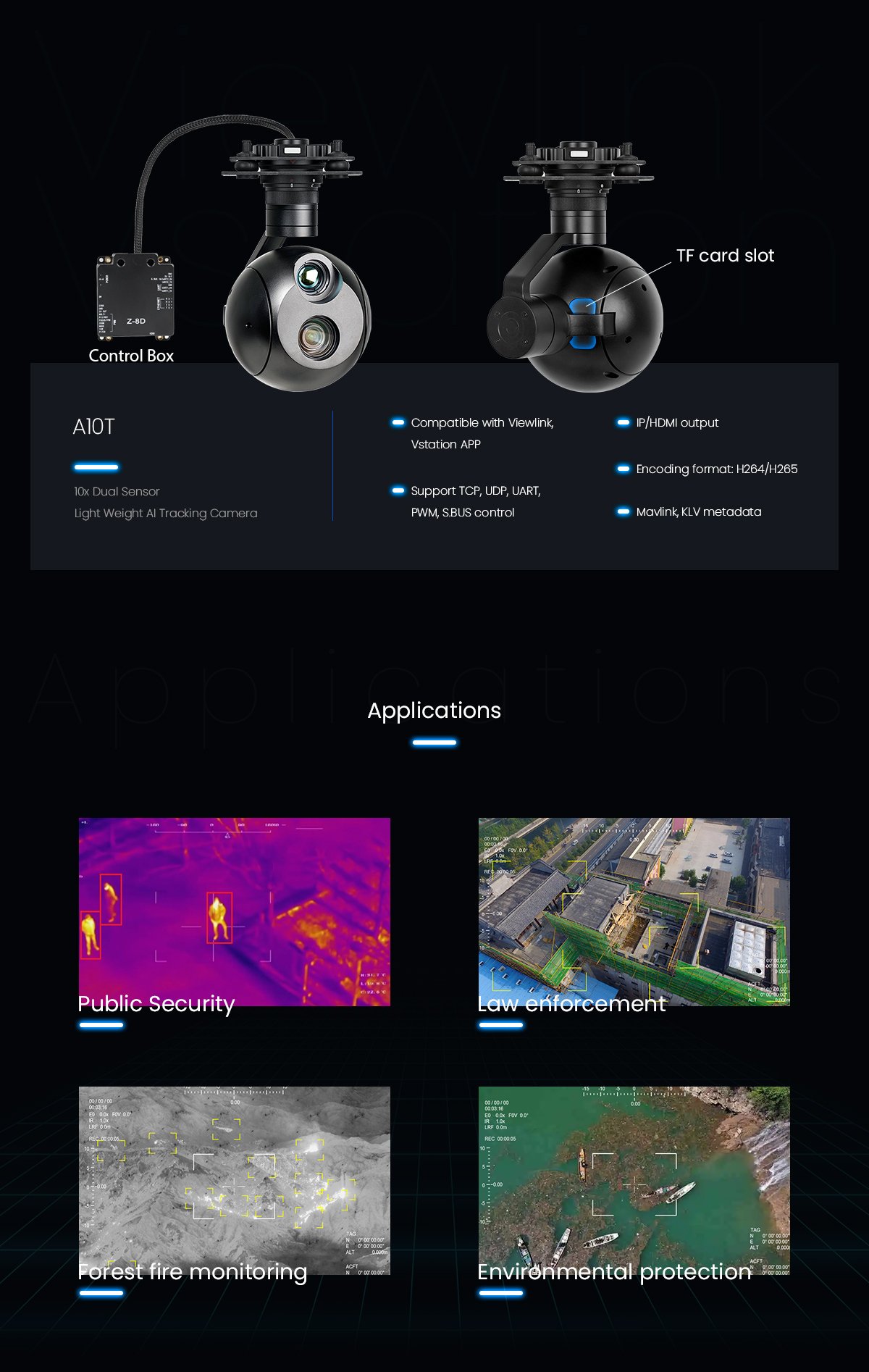

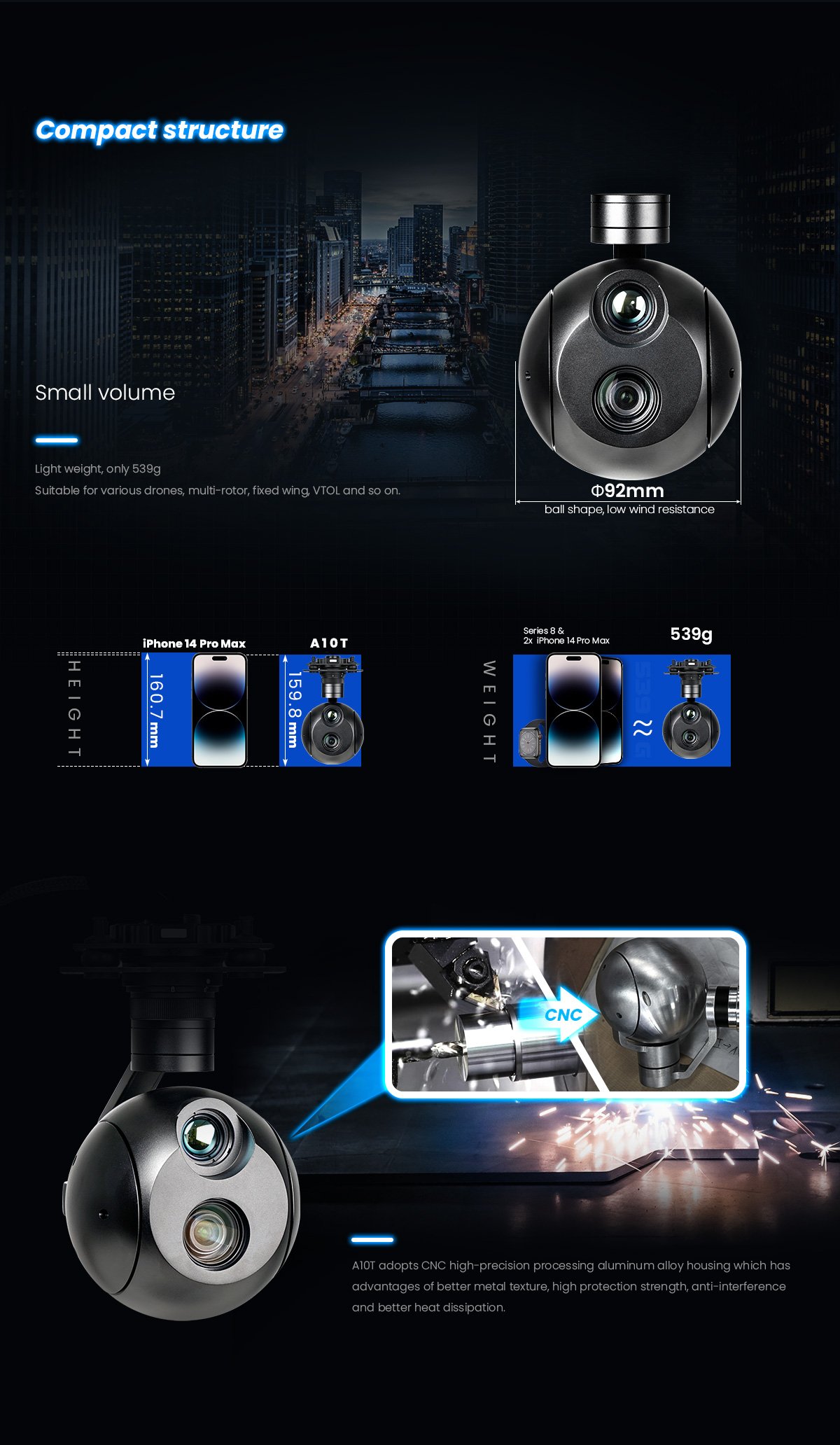

MA10T Prois a dual-sensorgimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom camera and a19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of better metal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking, It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.
| Overall Specifications | |
| N.W. | 582g |
| Product meas. | 121.5*96*157.7mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 700~1250mA @ 16V |
| Power consumption | Average 11.2W, Max 20W |
| Working environment temp. | -20 ~ +50 |
| IP rate | IP4X |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265) |
| Storage | TF card (Up to 256G,class 10, FAT32) |
| Picture in TF Card | JPG(1920*1080) |
| Video in TF Card | MP4(1080P@30fps) |
| Control method | PWM / S.BUS / UART (TTL) / TCP / UDP |

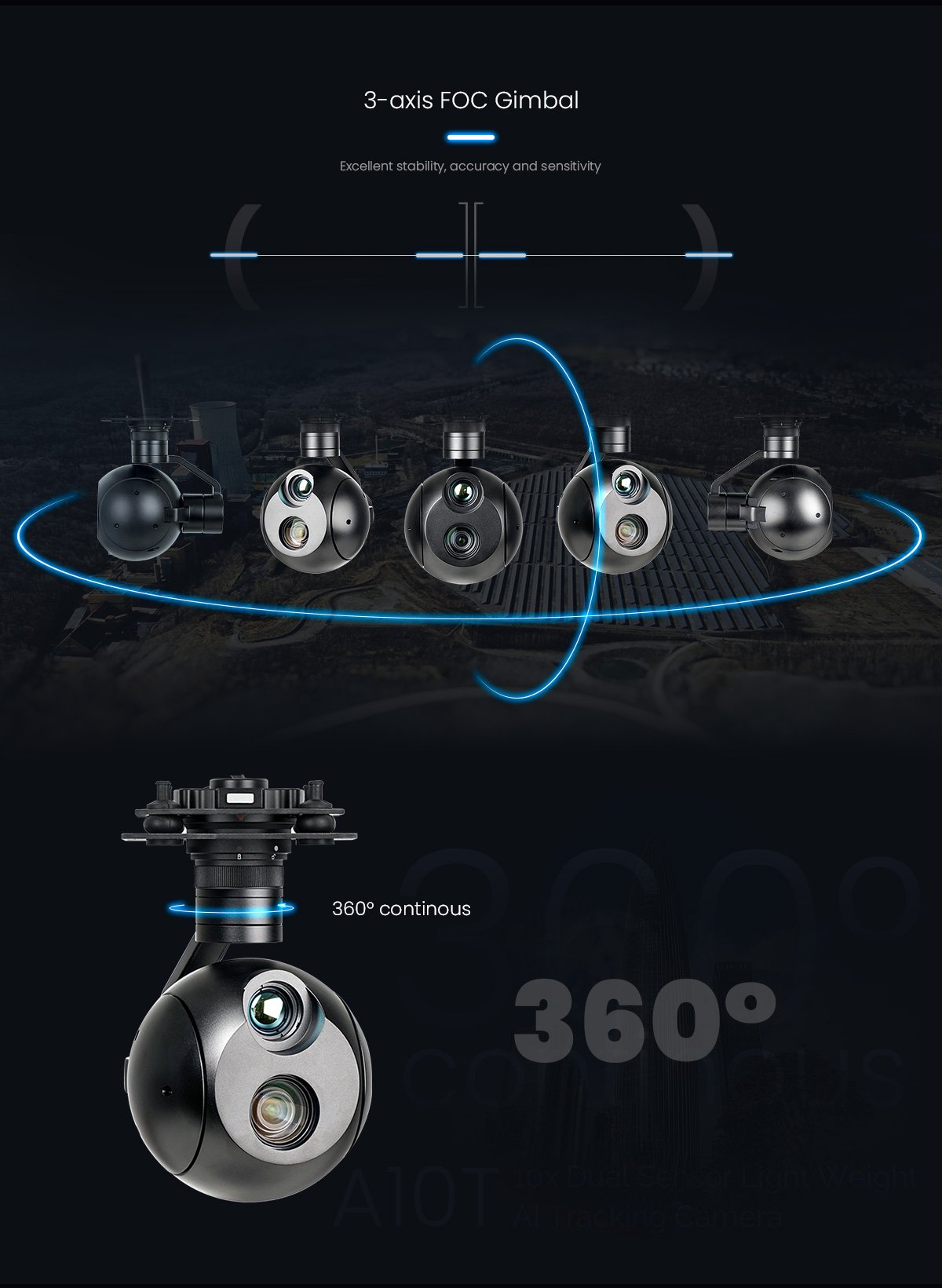

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -50 (Up) 135 (Down), Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 125 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| EO Camera Spec | |
| Imager Sensor | 1/2.8 SONY CMOS Sensor |
| Total pixel | 5.13MP |
| Picture quality | Full HD 1080 (1920*1080) |

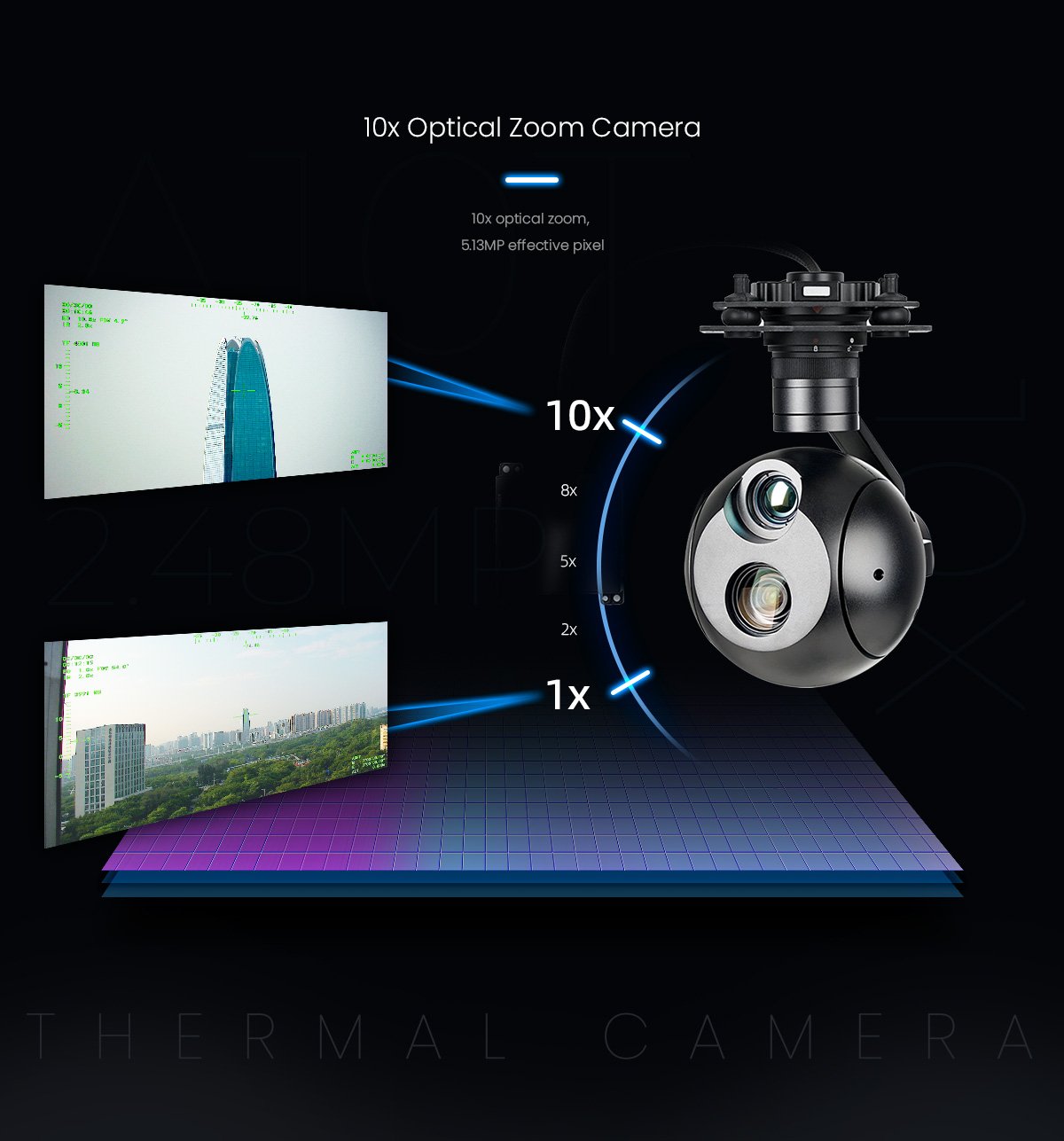

| Optical zoom | 10x, f = 4.7mm ~ 47mm, F1.7~F3.1 |
| Digital zoom | 32x |
| Field of View (D, H, V) | Wide: 69.9 / 58.3 / 44.7 |
| Tele: 8.7 / 7.1 / 5.4 | |
| Min target distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Min illumination | Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Shutter speed | 1/1sec ~ 1/100,000 sec |
| Focus | Auto / One Push / Manual |
| Exposure | Auto / Manual / Priority Mode (Shutter priority & aperture priority) |
| Backlight compensation | Yes |
| Auto ICR | Yes |
| Image stabilization | Yes |
| Defog | Yes |

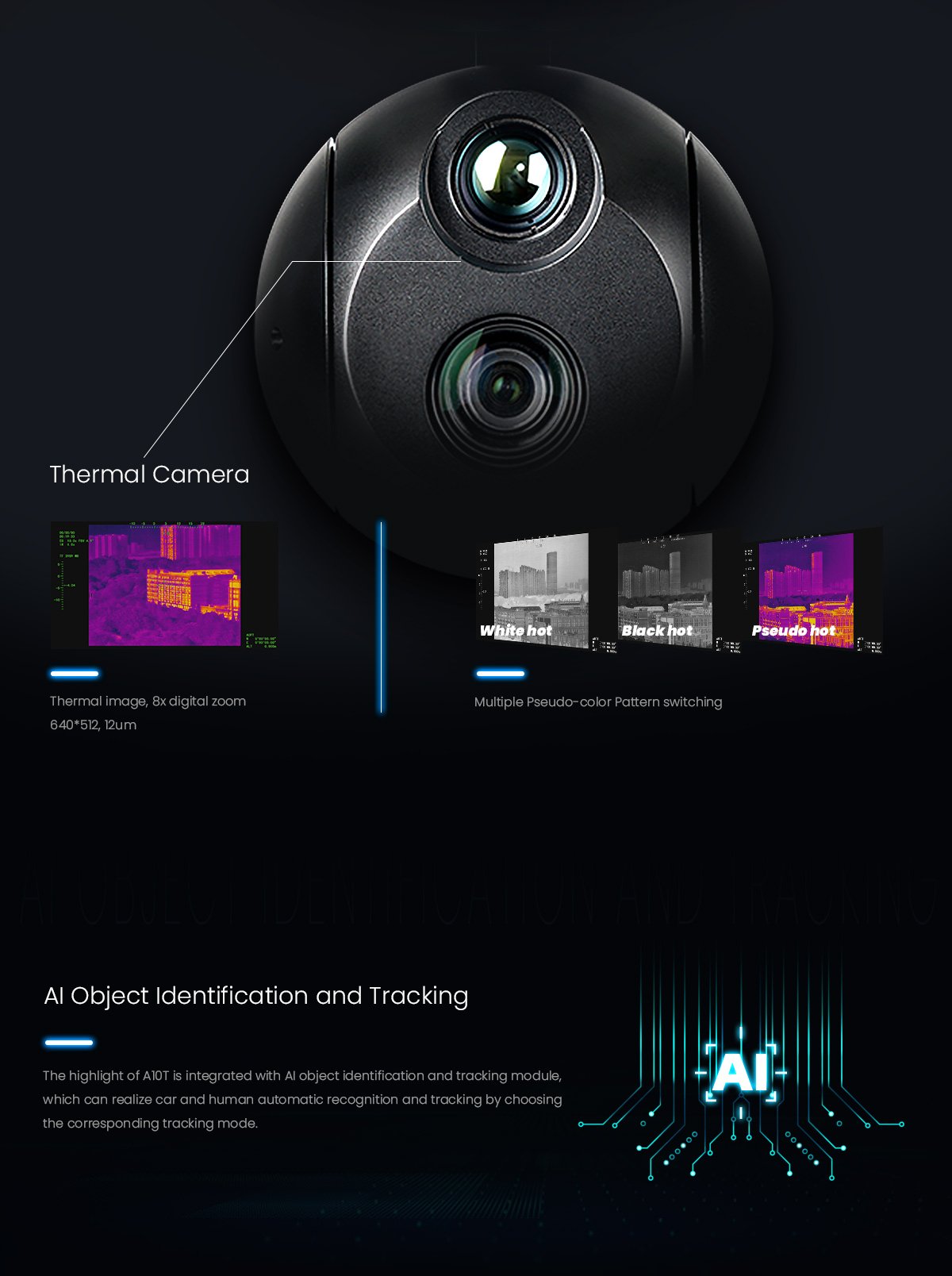

| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Horizontal FOV | 22.9 |
| Vertical FOV | 18.4 |
| Diagonal FOV | 29.0 |
| Detective Distance (Man: 1.8 0.5m) | 792 meters |
| Recognize Distance (Man: 1.8 0.5m) | 198 meters |
| Identification Distance (Man: 1.8 0.5m) | 99 meters |
| Detective Distance (Car: 4.2 1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2 1.8m) | 607 meters |
| Identification Distance (Car: 4.2 1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0~1 |
| NETD | 50mK@25 , F#1.0 |
| MRTD | 400mK |
| Shutter | Yes |
| Color palette | white hot, black hot, pseudo color |
| Digital zoom | 1x~8x |
| Radiometric function(optional) | Thermometry range optional -20 ~+150 , +100 ~+550 |
| Thermometry accuracy: 3 or +3% of reading (whichever is greater) @ ambient temperature -20 ~60 | |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |

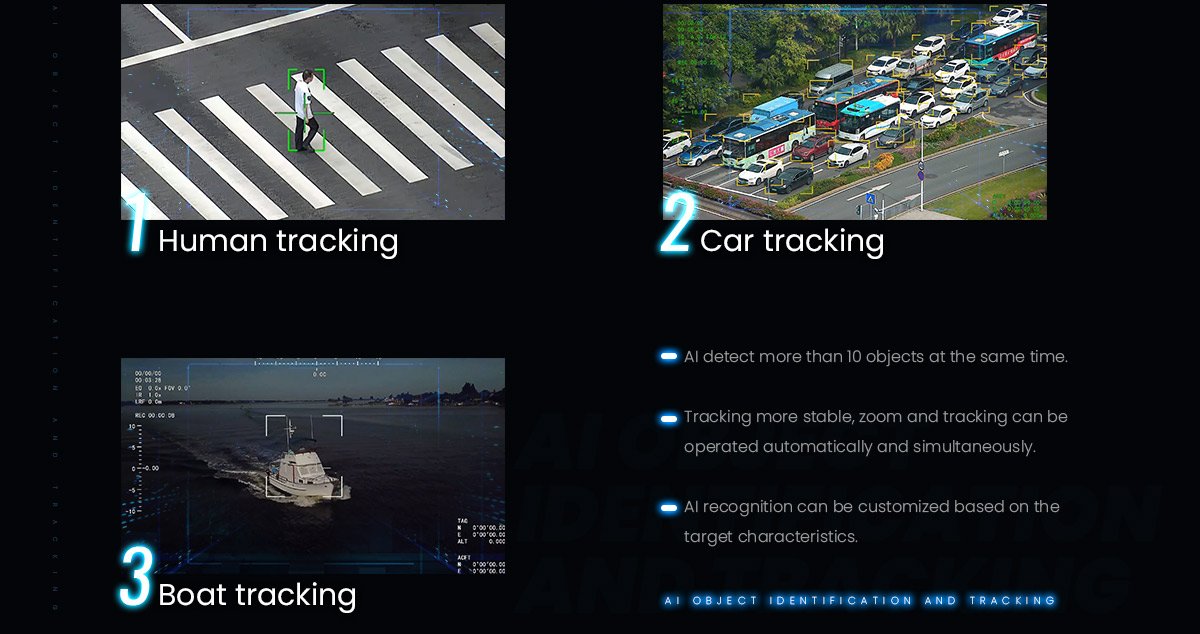

| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Features | |
| OSD | Display the gimbal s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |
| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Dual video stream output (optional) | Support(EO and IR two stream output, notes: unable to record once the dulal video stream output activated) |
