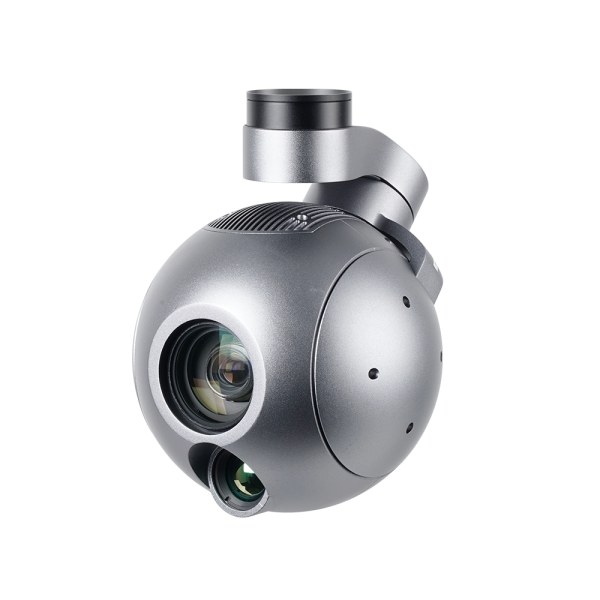

M40x Series Gimbal Camera AI Object Tracking With 40x Optical Zoom
China Moneypro

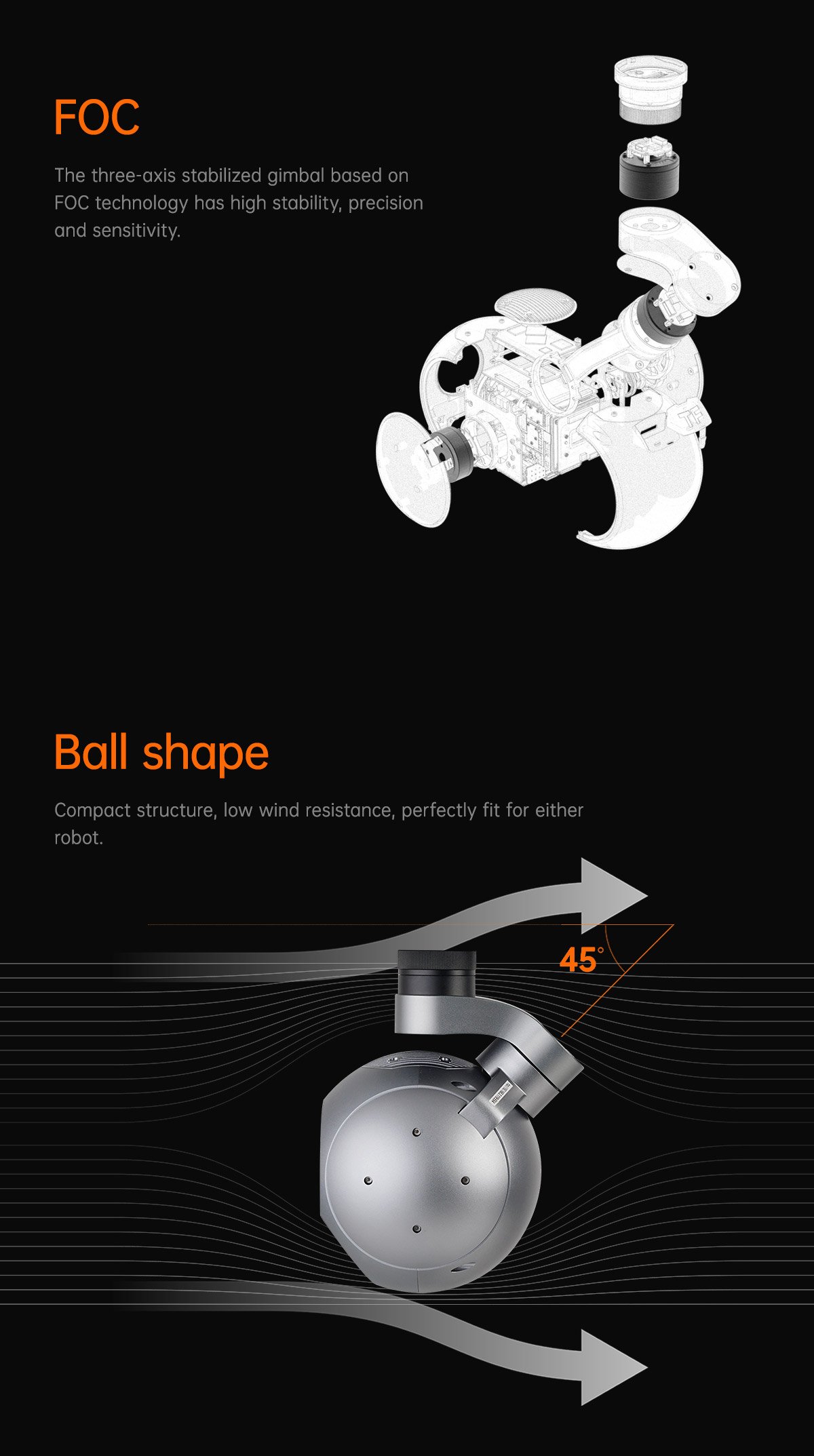

M40x Series AI Autonomous Identification and Automatic Tracking With 40x Optical Zoom is an advanced AI-driven visual payload designed for UAVs and surveillance platforms. It features a powerful 40× optical zoom lens that delivers high-resolution Full HD imaging and automatic tracking of moving targets such as vehicles and people. The integrated 3-axis stabilized gimbal ensures steady footage, while AI algorithms enable real-time object detection, auto-zoom, and precise tracking performance. Built for diverse missions—from security monitoring to aerial inspection—this gimbal camera supports multiple control interfaces and offers flexible output options, making it a versatile solution for long-range observation and intelligent tracking applications.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500~1500mA @ 16V |

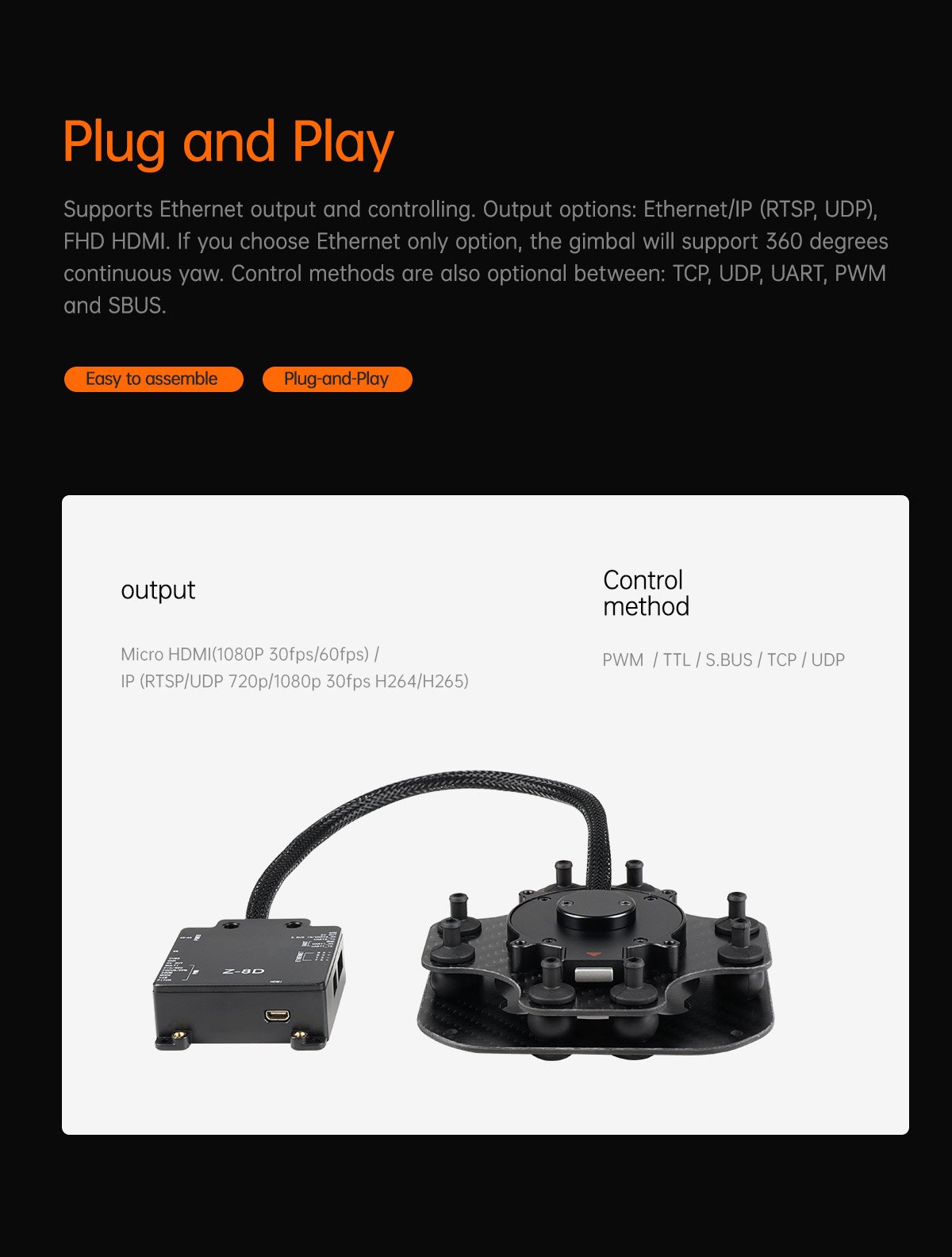

| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Car reading online | HTTP read pictures in TF card |
| Control method | PWM / TTL / S.BUS / TCP(IP output) / UDP(IP output) |

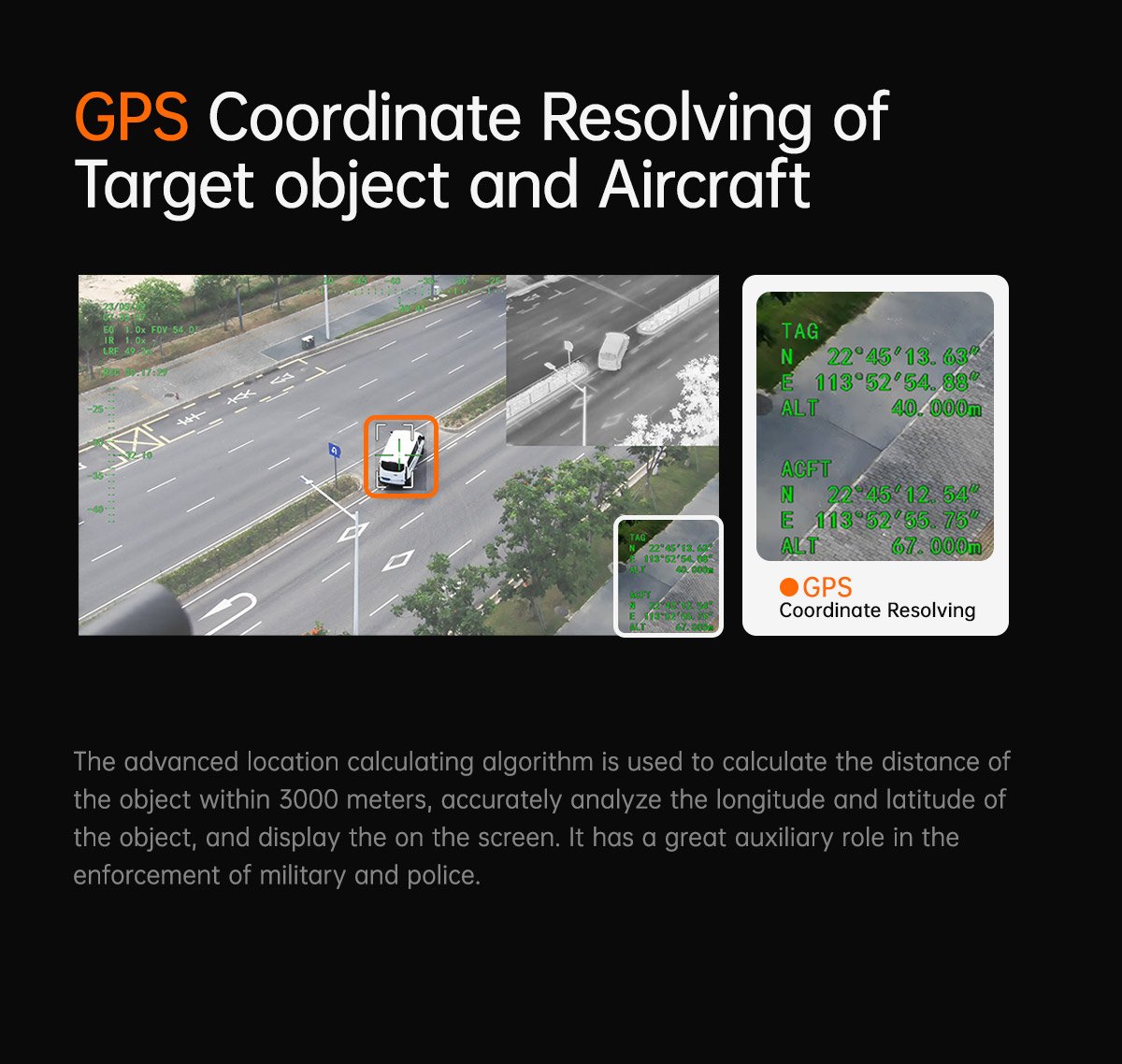

| Geotagging | Support, display time and GPS coordinate in picture exif |
| EO Camera spec | |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Photo storage format | JPG(1920*1080 / 1280*720) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |

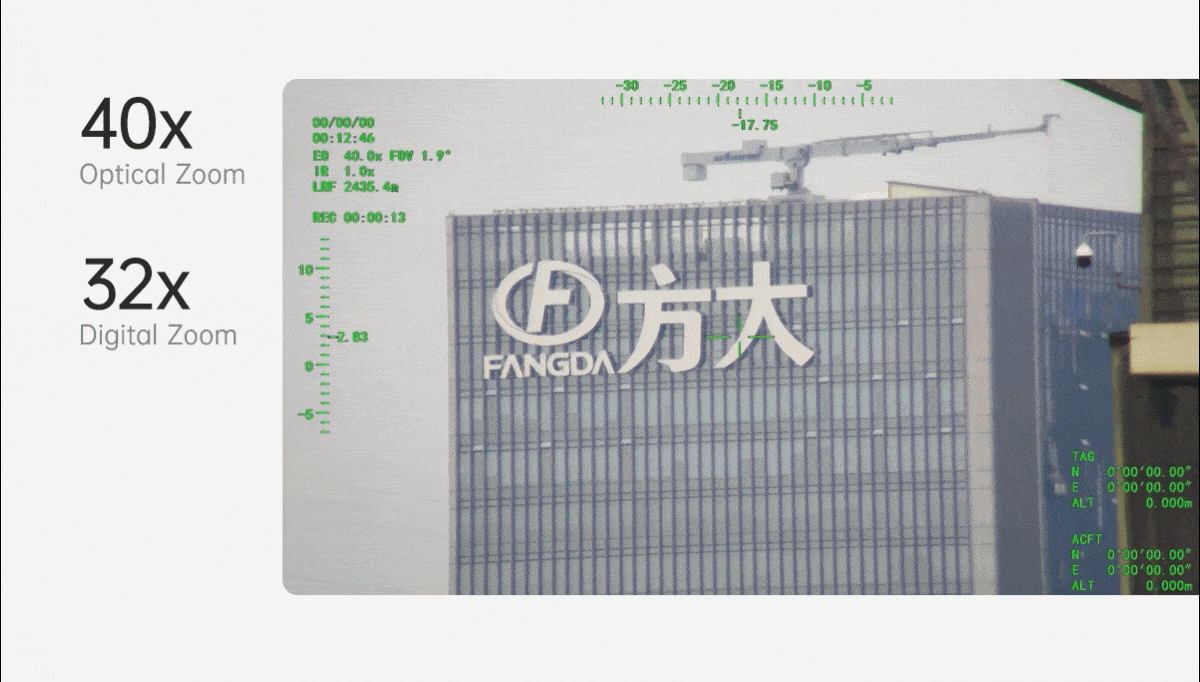

| Lens optical zoom | 40x, F=4.25~170mm |
| Digital zoom | Off / MAX x2 ~ x32 |
| Min object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| AF Mode | Auto / One Push / Manual |
| Iris | Close ~ F1.6 |
| Shutter speed | 1/1 ~ 1/30,000 sec |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux |
| Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux | |
| Exposure control | Auto / Iris. Priority / Shut. Priority / Manual |
| Gain Control(AGC) | 0 ~ 10 steps |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Back Light | Off / BLC / HLC / WDR |
| Defog | Off / Manual / Auto |
| OSD | Yes |

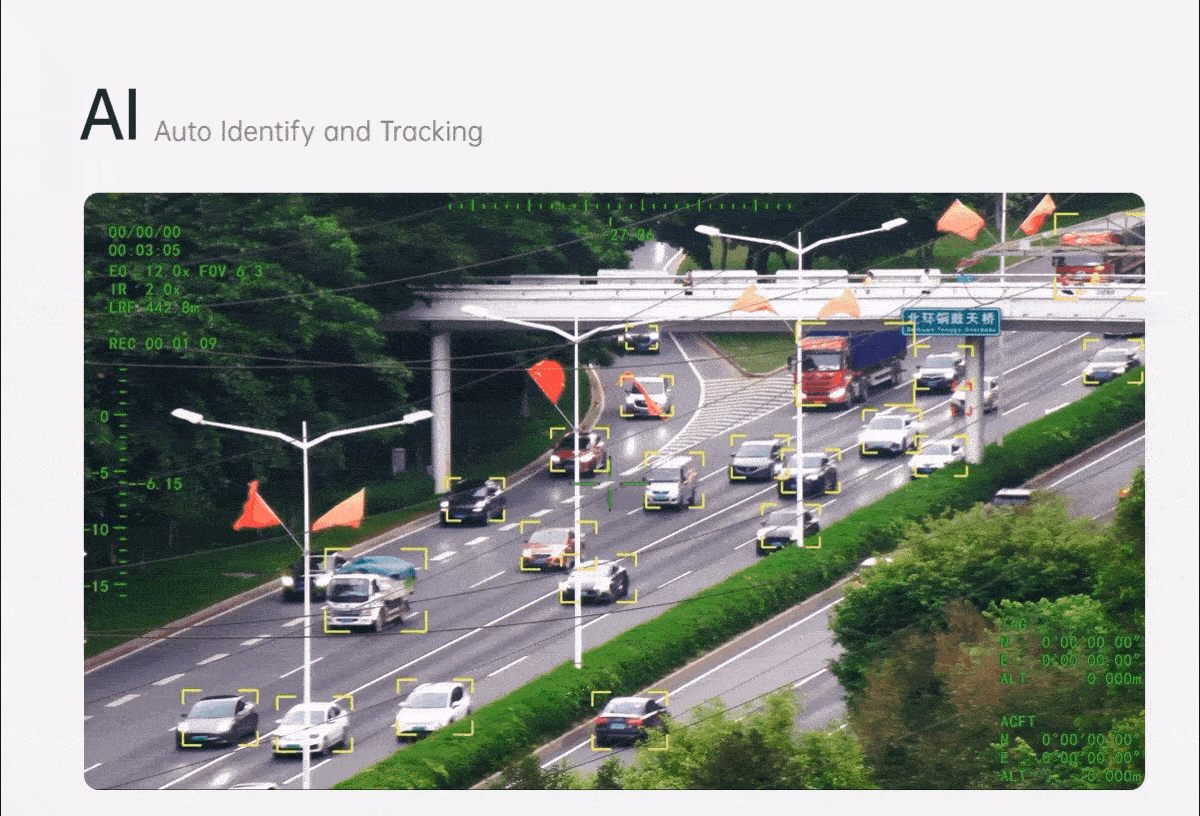

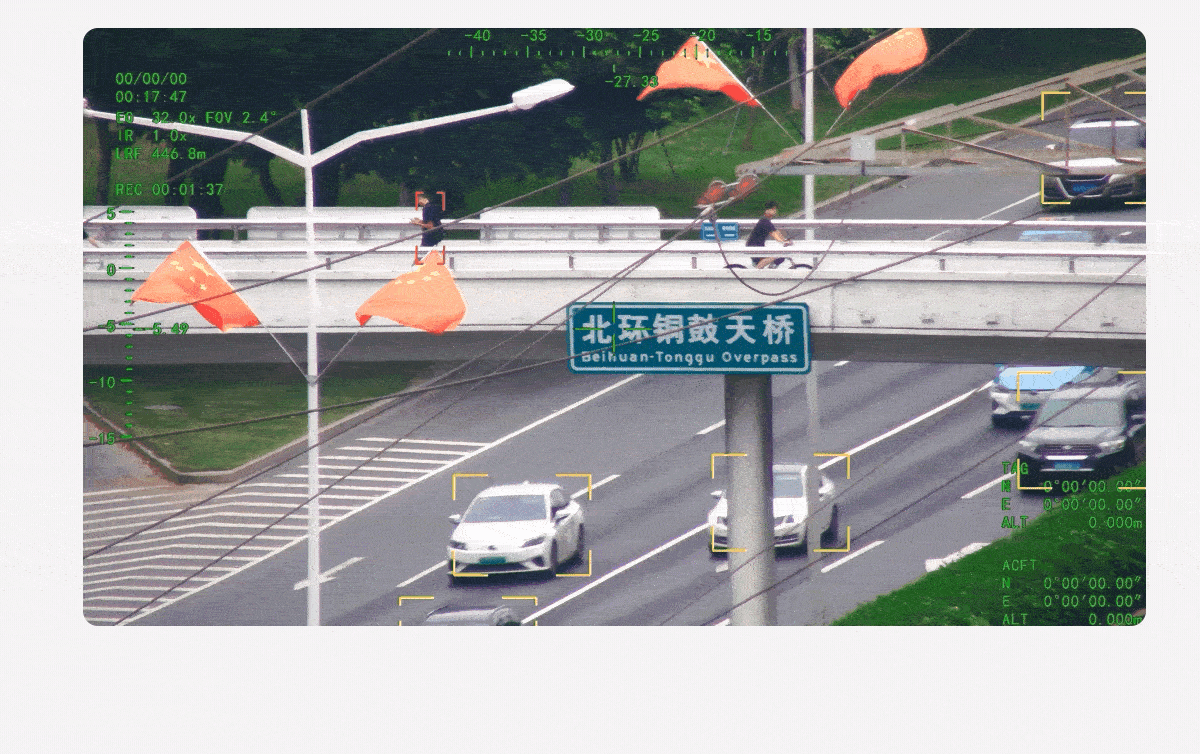

| Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| AI auto-zoom | Yes |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Min contrast ratio | 5% |
| Packing Information | |
| N.W. | 1074g(Viewport Version with Viewport) |

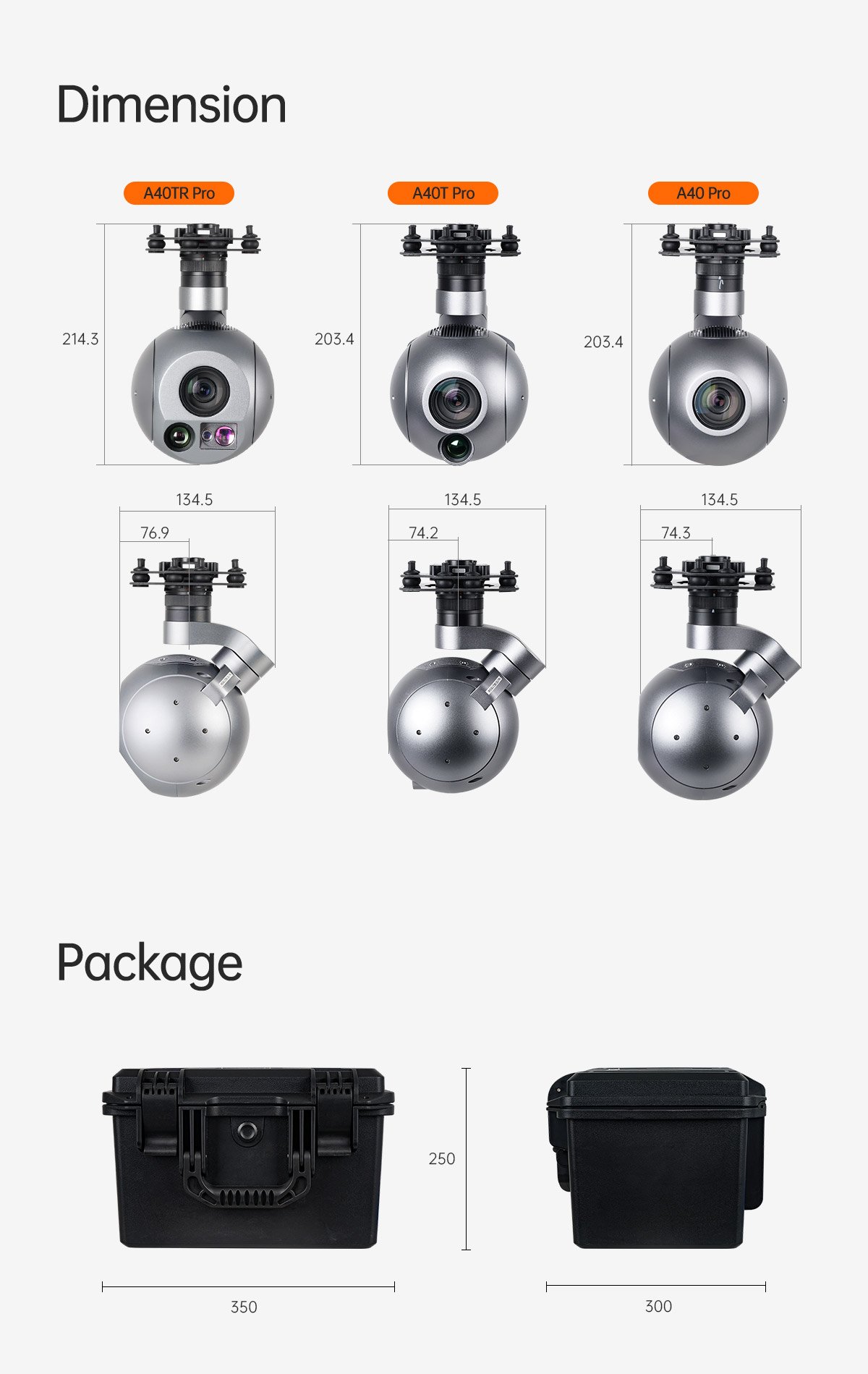

| Product meas. | 134.5*118*197.7mm / 134.5*118*203.4mmmm(Viewport Version) |

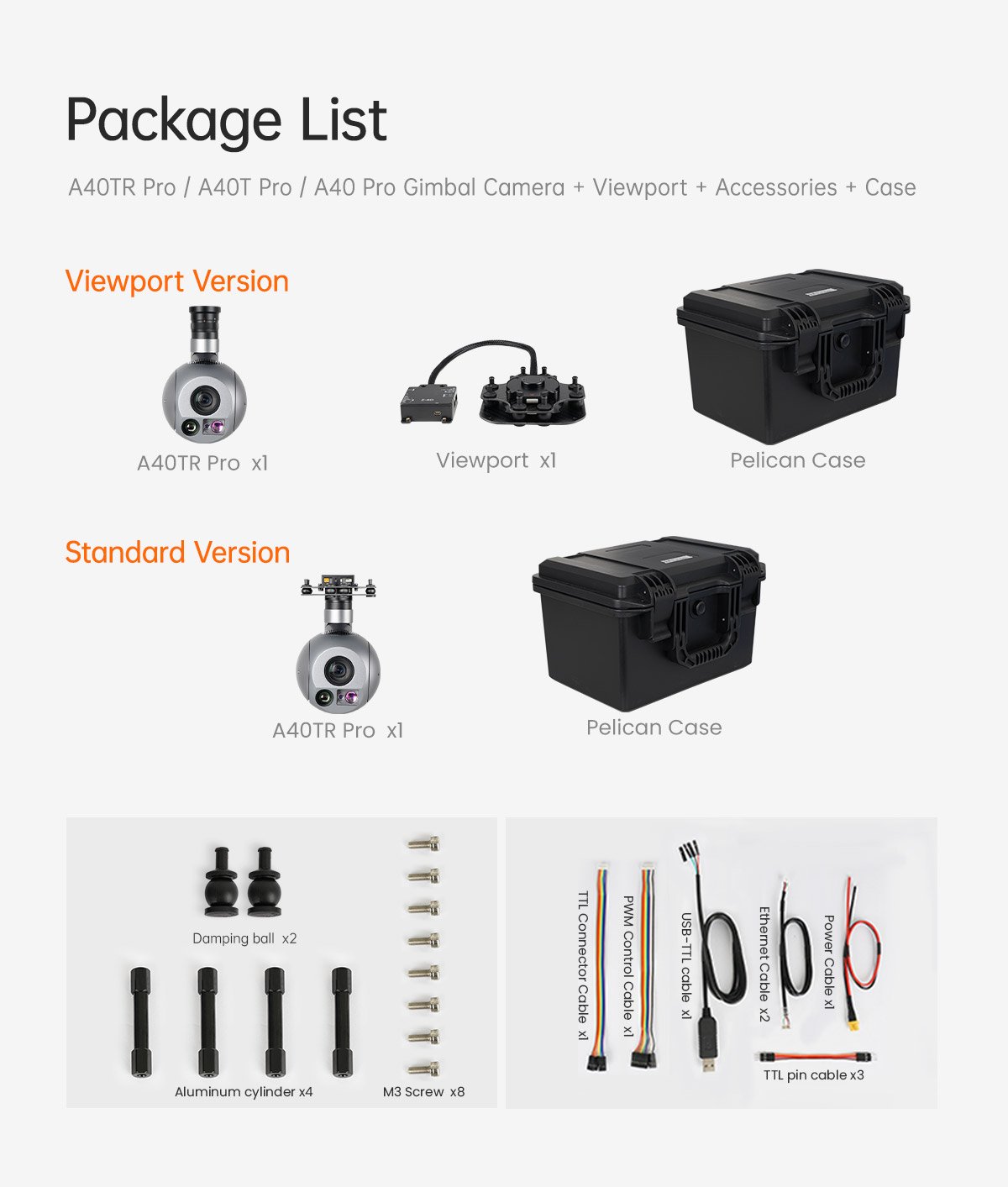

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2646g |
| Package meas. | 360*300*250mm |
