China Moneypro
MDHU290G613P
China Moneypro

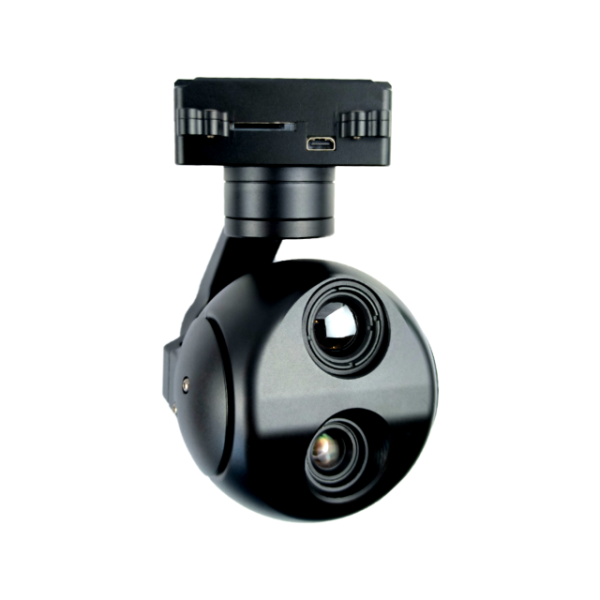

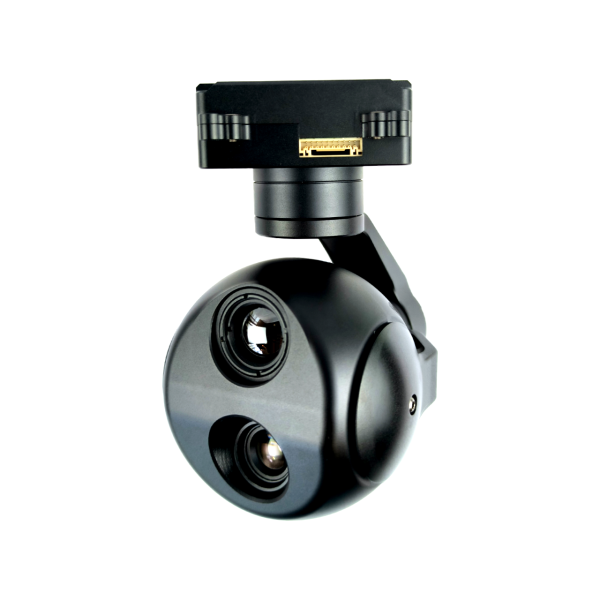

The MDHU290G613P is a professional dual-sensor gimbal camera system combining 1080P fixed-focus visible light imaging with 640×512 thermal imaging capabilities. Featuring a high-precision three-axis stabilization gimbal with FOC control technology, this compact system delivers exceptional stability in a lightweight, power-efficient design. The 2-megapixel visible light sensor offers 9x digital zoom and 1080P output via network IP or Micro-D HDMI at 60fps. The thermal sensor provides 50mK sensitivity with global temperature measurement and optional full-pixel temperature saving. Advanced AI detection tracks up to 100 human and vehicle targets simultaneously with dynamic stabilization. Multiple control options include network IP, serial port, and S.BUS compatibility. Local dual-channel TF video recording ensures reliable data capture. Operating from DC 12V-26.2V with minimal 4.6W static power consumption, the gimbal achieves precise 0.02-degree pitch and roll stability with comprehensive angle ranges. Weighing just 245 grams and measuring 115x85mm, this professional-grade system operates reliably from -10 to +60 degrees Celsius, making it ideal for surveillance, inspection, and monitoring applications.
The DHU290G613P is an integrated, fixed-focus dual-sensor system featuring a 1080P visible-light camera, a 13mm 640×512 thermal imager, and a high-precision professional three-axis stabilized gimbal. It supports network IP streaming output, and the gimbal adopts an FOC control solution with a high-precision encoder. The system is characterized by excellent stability, compact dimensions, lightweight construction, and low power consumption. The visible-light camera is built around a 2-megapixel effective SENSOR. Gimbal and camera operations can be managed via serial port, S.BUS, or network, and the device supports dual-channel (TF card) local video recording and photo capture.
| Voltage | DC 12V-26.2V/td> | Power | Static 4.6W |
| Pitch Angle action range | -45 +100 | Yaw Angle action range | -145 +145 |
| Roll Angle action range | -45 +45 | Angle jitter in pitch and roll directions | 0.02 |
| Horizontal angle jitter | 0.03 | One-click return function | One-click automatic quick return to the initial position |
| Gimbal control speed adjustable | The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera | Control mode | Support network IP control ,serial port and S.BUS control |
| CMOS Size | 1/2.8 inch 2.4 million pixels Wide dynamic range CMOS SENSOR |
| Digital zoom | Support 9x digital zoom |
| Video Output | Network HD RTSP output 1080P, video stream local TF storage |
| Field Angle(FOV) | 6mm lens FOV 49.8 29.3 |
| Network support mode | 1080P 30 fps |
| HDMI support mode | Micro-D HDMI 1080P 60fps |
| Resolution ratio | 640 512 pixel |
| Space between pixels | 12 m |
| Type | Uncooled focal plane microbolometer |
| Wavelength Range | 8 14 m |
| Thermal sensitivity(NETD) | 50mk@F1.0 |
| Field Angle | 9.1mm Lens; FOV 32.9 26.6 |
| Measurement (Optional) | Support global temperature measurement, optional full pixel temperature saving function |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

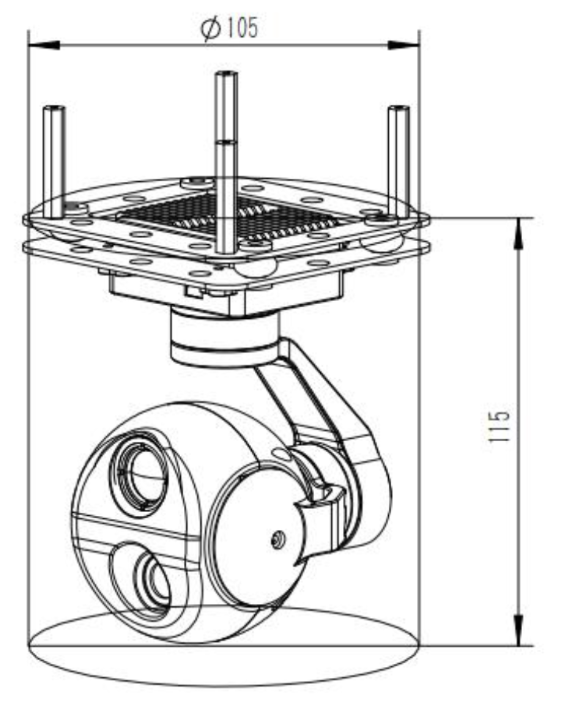

| Dimensions | 115mm 85mm | Working Condition | -10 to +60 |
| Stored Environment | -20 to +80 | Weight | 245 10 g |
